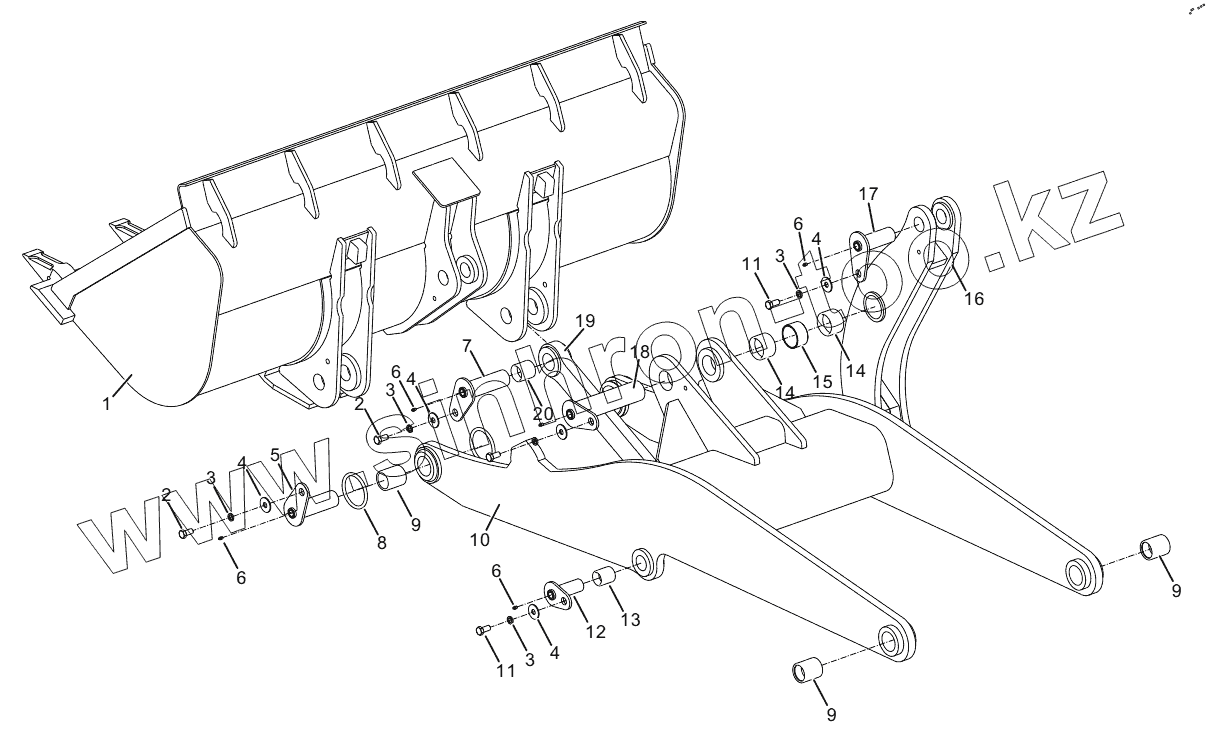

Каталог запасных частей к технике: Lonking (LongGong) CDM-833. MOUNTING SYSTEM (30811900259)
1
2
2
3
3
3
3
4
4
4
4
5
6
6
6
6
7
8
9
9
9
10
11
11
12
13
14
14
15
16
17
18
19
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 30873900014 | 30873900014 | 30873900014 | |
| 30873900005 | 30873900005 | 30873900005 | |
| 30873900013 | 30873900013 | 30873900013 | |
| 30811000526 | 30811000526 | Lift cylinder lower pin weldment | |
| 30811001500 | 30811001500 | Welding of bucket lower pin shaft | |
| 30811000527 | 30811000527 | Bucket upper pin weldment | |
| 1 | 30871900093 | Bucket assembly | |
| 2 | 51204153714 | Bolt M20x35 | |
| 3 | 51401150107 | Washer | |
| 4 | 51420150121 | Washer 20 | |
| 5 | 30811001325 | Welding of bucket lower pin shaft | |
| 6 | 56201000301 | Oil cup | |
| 7 | 30811001329 | Welding of bucket upper pin shaft | |
| 8 | 60980000558 | O-sealing ring | |
| 9 | 60916010019 | Lift arm lower shaft sleeve | |
| 10 | 30811000028 | Lifting arm | |
| 11 | 51204151414 | Bolt M20 x 40 | |
| 12 | 30811001328 | Welding of boom cylinder upper pin shaft | |
| 13 | 60916010022 | Sleeve | |
| 14 | 60916010018 | Lift arm upper shaft sleeve | |
| 15 | 30874101926 | Tilt arm isolation sleeve | |
| 16 | 30874900312 | Swing arm | |
| 17 | 30811001327 | Welding of end point pin shaft of rocker arm | |
| 18 | PMUTQVMMPNP | Bolt coupling rocker arm | |
| 19 | 30872900319 | Pull rod weldment | |
| 20 | 60916010013 | Pull rod shaft sleeve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
