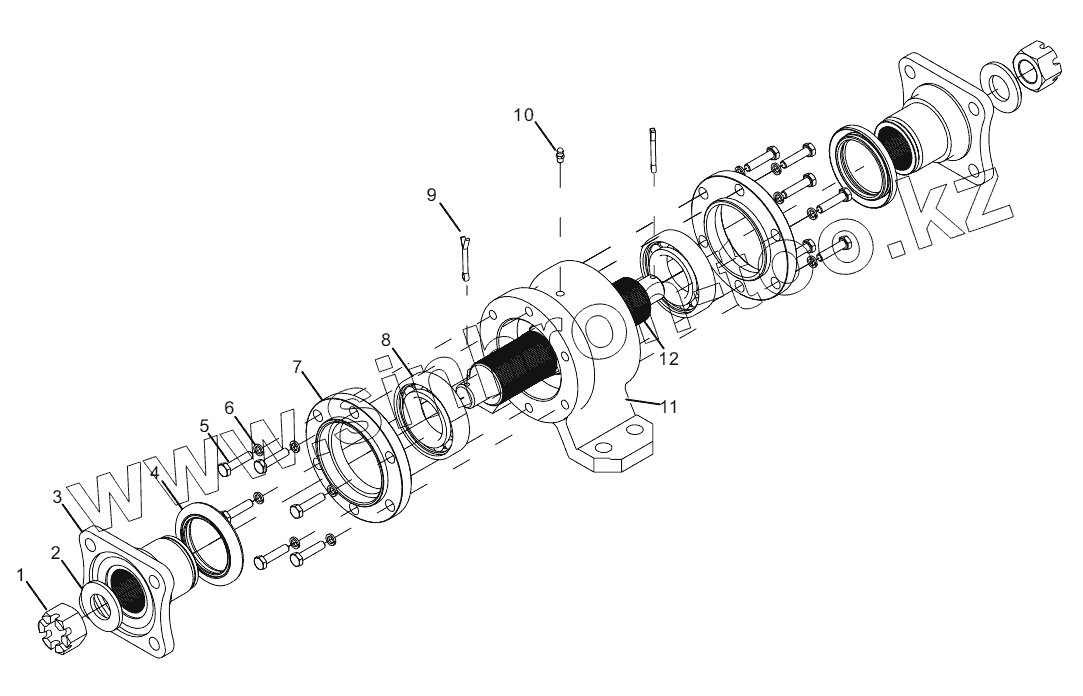

Каталог запасных частей к технике: Lonking (LongGong) CDM-833. MEDIUM SUPPORT (17402000010)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CDM-1165 (2009) CDM-1185 (2009) CDM-1220 (2009) CDM-307 (2013) CDM-308 (2013) CDM-312 (2013) CDM-512D (2014) CDM-514D (2014) CDM-520A (K) (2010) CDM-6065 (2013) CDM-6150 (2012) CDM-6240 (2015) CDM-6365H (2012) CDM-6485H (2013) CDM-816 CDM-816 (2010) CDM-816 (2011) CDM-816-D (2018) CDM-833 CDM-833 CDM-833.00 (2010) CDM-833H CDM-835E VI.00 (2015) CDM-835E VII.00I (2015) CDM-835E VIII.00I (2015) CDM-843 CDM-853.00 (2010) CDM-853N.00I (2017) CDM-855E CDM-855E (2009) CDM-855EG CDM-855EK CDM-855EM CDM-856 CDM-856D (2010) CDM-860.00 (2010) CMD-835E (2009) CMD-835E.01I (2010) LG-160DT (2012) LG-833NIV.00I (2017) LG20, LG25, LG30, LG35 (2013) LG50-60-70 (2014) LG50CVII.00I (2015) LG833NG (2015) ZL50NC (2015)

Схема > Не выбрано DIESEL ENGINE SYSTEM (30801900161) ACCELERATOR ASSEMBLY (30801000313) TORQUE CONVERTER SYSTEM (30802900088) CONVERTER AND ASSEMBLY OF THE OIL TRANSMISSION CIRCUIT (30802000116) SUPERIO DRIVE SHAFT ASSEMBLY (17405000007) TRANSMISSION SYSTEM (30803900063) AXLE SYSTEM (30804900119) FRONT UNIT AXLE ASSEMBLY (17401000020) MEDIUM SUPPORT (17402000010) MIDDLE/REAR AXLE ASSEMBLY (17409000004) REAR AXLE ASSEMBLY (17403000032) CONTROL SYSTEM (30805900121) ASSEMBLY AND CONTROL OF GEARBOX (30805000224) ASSEMBLED STEERING WHEEL AND CYLINDER ASSEMBLY PIPE (30806000244) HYDRAULIC STEERING WHEEL ASSEMBLY (30806000209) ASSEMBLY PIPE PRIORITY VALVE (30806000062) INSTALLATION SET GEAR PUMP (30806000243) HYDRAULIC SYSTEM (30807900349) HYDRAULIC SYSTEM (30807900349) HYDRAULIC SYSTEM (30807900349) ARMED CONTROL PILOT (30807000627) AIR TANK ASSEMBLY (30808000290) ASSEMBLY AND INSTALLATION OF BRAKE VALVE PIPE (30808000260) ASSEMBLY AND INSTALLATION FRONT BOOSTER PUMP (30808000258) ASSEMBLY AND INSTALLATION REAR BOOSTER PUMP (30808000261) ASSEMBLY AND INSTALLATION PIPE AIR TANK (30808000262) EMERGENCY AND PARKING BRAKE SYSTEM (30809900034) CHASSIS SYSTEM (30810900497) MOUNTING SYSTEM (30811900259) SPOON ASSEMBLY (30871900093) CABIN SYSTEM (30812900225) CABIN SYSTEM (30812900225) CABIN SYSTEM (30812900218) CABIN SYSTEM (30812900218) EXTERIOR PANEL SYSTEM (30812900218) HYDRAULIC TANK ASSEMBLY (30889900054) GAS-OIL TANK ASSEMBLY (30888900037) GAS-OIL TANK ASSEMBLY (30888900040) COUNTERWEIGHT ARMING (30887000269) HOOD ASSEMBLY (30886900063) HOOD ASSEMBLY (30815000310) CABLING CAB (30815000310) ASSEMBLY OF THE AIR CONDITIONER (60400000790) EVAPORATOR ASSEMBLY (60900003002) CAPACITOR ASSEMBLY (60900003005) ASSEMBLY OF THE FRONT WINDSHIELD (60400000569) REAR WINDSHIELD ASSEMBLY (60400000572) INSTRUMENT PANEL (604000002244) INSTRUMENT PANEL (604000002246) FUSE BOX (604000000576) ELECTRICAL WIRING OF THE FRONT CHASSIS (30815000310) ELECTRICAL WIRING OF THE MOTOR (30815000310) BRAKE VALVE ELECTRICAL WIRING (30815000310) OIL TANK ELECTRICAL WIRING (30815000310) ELECTRICAL WIRING OF THE COUNTERWEIGHT (30815000310) TRANSMISSION ELECTRICAL WIRING (30815000310) ELECTRICAL WIRING OF TORQUE CONVERTER (30815000310) ELECTRICAL WIRING OF THE SCRUBBER (30815000310) TRANSMISSION ASSEMBLY (LGX833VA.03A) SHIFT CONTROL HIGH/LOW GEAR (ZL30.03.11) CARTRIDGE FILTER ASSEMBLY (LGX833VA.03.01) MOUNTING INPUT SHAFT (LGX833VA.03.03) MOUNTING OUTPUT SHAFT (LGX833VA.03.04) MOUNTING MIDDLE AXLE (LGX833VA.03.04) MOUNTING AXLE REVERSE GEAR (LGX833VA.03.06) MOUNTING FRONT AXLE (1648300150) FRONT MAIN REDUCER ASSEMBLY (36403000133) WHEEL REDUCER ASSEMBLY (36402000076) DIFFERENTIAL ASSEMBLY (36403000111) WELDING OF THE HOUSING FRONT AXLE (36401000035) INLET FLANGE WELDING (36403000134) ASSEMBLED REAR AXLE (16480305130) REAR MAIN REDUCER ASSEMBLY (36403000137) WHEEL REDUCER ASSEMBLY (36402000076) DIFFERENTIAL ASSEMBLY (36403000111) WELDING HOUSING REAR AXLE (36401000036) WELDING INLET FLANGE (36403000134) LEFT STEERING CYLINDER (16608029010) RIGHT STEERING CYLINDER (16608029120) TILT CYLINDER (16608064550) LIFTING CYLINDER (16608062010) GREASE POINT DESIGN AND INDICATOR HYDRAULIC SCHEME

1

2

3

4

5

6

7

8

9

10

11

12

Позиция на иллюстрации	Заводской номер детали		Название детали
1	37504100101		Nut
2	30615100823		Washer
3	37490000003		Flange
4	56177012801		Sealing ring
5	51203091214		Bolt
6	51401090107		Washer
7	30810101542		Bearing cover
8	52198021301		Bearing
9	51512101605		Pin
10	56201000301		Oil cup
11	37491000007		Support seat
12	37416000034		Spilne shaft

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
