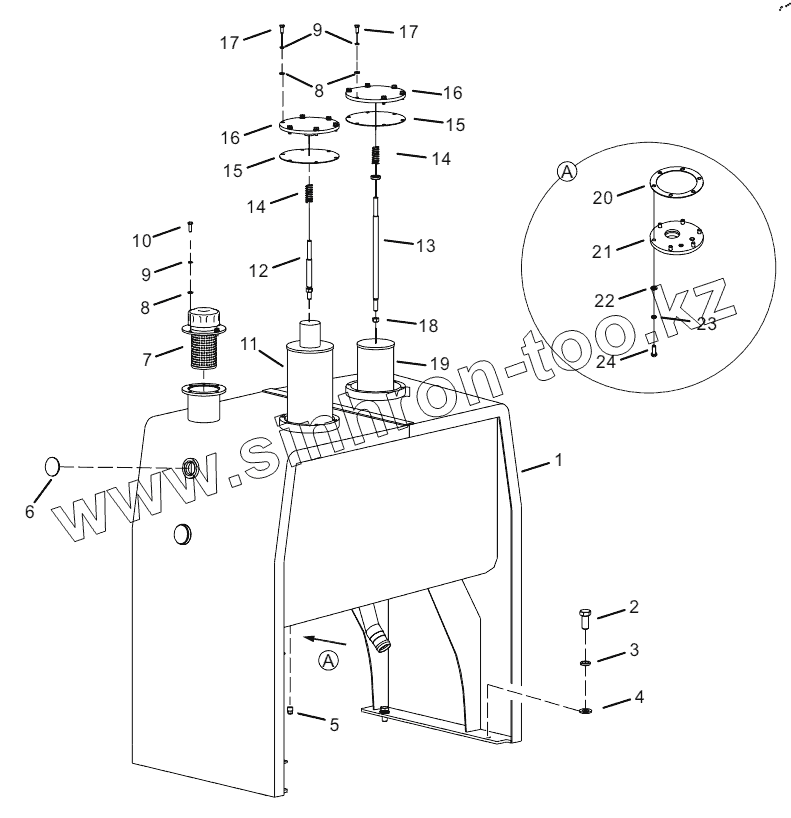

HYDRAULIC TANK ASSEMBLY (30889900054)
Каталог запасных частей к технике: Lonking (LongGong) CDM-833. HYDRAULIC TANK ASSEMBLY (30889900054)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
DIESEL ENGINE SYSTEM (30801900161)
ACCELERATOR ASSEMBLY (30801000313)
TORQUE CONVERTER SYSTEM (30802900088)
CONVERTER AND ASSEMBLY OF THE OIL TRANSMISSION CIRCUIT (30802000116)
SUPERIO DRIVE SHAFT ASSEMBLY (17405000007)
TRANSMISSION SYSTEM (30803900063)
AXLE SYSTEM (30804900119)
FRONT UNIT AXLE ASSEMBLY (17401000020)
MEDIUM SUPPORT (17402000010)
MIDDLE/REAR AXLE ASSEMBLY (17409000004)
REAR AXLE ASSEMBLY (17403000032)
CONTROL SYSTEM (30805900121)
ASSEMBLY AND CONTROL OF GEARBOX (30805000224)
ASSEMBLED STEERING WHEEL AND CYLINDER ASSEMBLY PIPE (30806000244)
HYDRAULIC STEERING WHEEL ASSEMBLY (30806000209)
ASSEMBLY PIPE PRIORITY VALVE (30806000062)
INSTALLATION SET GEAR PUMP (30806000243)
HYDRAULIC SYSTEM (30807900349)
HYDRAULIC SYSTEM (30807900349)
HYDRAULIC SYSTEM (30807900349)
ARMED CONTROL PILOT (30807000627)
AIR TANK ASSEMBLY (30808000290)
ASSEMBLY AND INSTALLATION OF BRAKE VALVE PIPE (30808000260)
ASSEMBLY AND INSTALLATION FRONT BOOSTER PUMP (30808000258)
ASSEMBLY AND INSTALLATION REAR BOOSTER PUMP (30808000261)
ASSEMBLY AND INSTALLATION PIPE AIR TANK (30808000262)
EMERGENCY AND PARKING BRAKE SYSTEM (30809900034)
CHASSIS SYSTEM (30810900497)
MOUNTING SYSTEM (30811900259)
SPOON ASSEMBLY (30871900093)
CABIN SYSTEM (30812900225)
CABIN SYSTEM (30812900225)
CABIN SYSTEM (30812900218)
CABIN SYSTEM (30812900218)
EXTERIOR PANEL SYSTEM (30812900218)
HYDRAULIC TANK ASSEMBLY (30889900054)
GAS-OIL TANK ASSEMBLY (30888900037)
GAS-OIL TANK ASSEMBLY (30888900040)
COUNTERWEIGHT ARMING (30887000269)
HOOD ASSEMBLY (30886900063)
HOOD ASSEMBLY (30815000310)
CABLING CAB (30815000310)
ASSEMBLY OF THE AIR CONDITIONER (60400000790)
EVAPORATOR ASSEMBLY (60900003002)
CAPACITOR ASSEMBLY (60900003005)
ASSEMBLY OF THE FRONT WINDSHIELD (60400000569)
REAR WINDSHIELD ASSEMBLY (60400000572)
INSTRUMENT PANEL (604000002244)
INSTRUMENT PANEL (604000002246)
FUSE BOX (604000000576)
ELECTRICAL WIRING OF THE FRONT CHASSIS (30815000310)
ELECTRICAL WIRING OF THE MOTOR (30815000310)
BRAKE VALVE ELECTRICAL WIRING (30815000310)
OIL TANK ELECTRICAL WIRING (30815000310)
ELECTRICAL WIRING OF THE COUNTERWEIGHT (30815000310)
TRANSMISSION ELECTRICAL WIRING (30815000310)
ELECTRICAL WIRING OF TORQUE CONVERTER (30815000310)
ELECTRICAL WIRING OF THE SCRUBBER (30815000310)
TRANSMISSION ASSEMBLY (LGX833VA.03A)
SHIFT CONTROL HIGH/LOW GEAR (ZL30.03.11)
CARTRIDGE FILTER ASSEMBLY (LGX833VA.03.01)
MOUNTING INPUT SHAFT (LGX833VA.03.03)
MOUNTING OUTPUT SHAFT (LGX833VA.03.04)
MOUNTING MIDDLE AXLE (LGX833VA.03.04)
MOUNTING AXLE REVERSE GEAR (LGX833VA.03.06)
MOUNTING FRONT AXLE (1648300150)
FRONT MAIN REDUCER ASSEMBLY (36403000133)
WHEEL REDUCER ASSEMBLY (36402000076)
DIFFERENTIAL ASSEMBLY (36403000111)
WELDING OF THE HOUSING FRONT AXLE (36401000035)
INLET FLANGE WELDING (36403000134)
ASSEMBLED REAR AXLE (16480305130)
REAR MAIN REDUCER ASSEMBLY (36403000137)
WHEEL REDUCER ASSEMBLY (36402000076)
DIFFERENTIAL ASSEMBLY (36403000111)
WELDING HOUSING REAR AXLE (36401000036)
WELDING INLET FLANGE (36403000134)
LEFT STEERING CYLINDER (16608029010)
RIGHT STEERING CYLINDER (16608029120)
TILT CYLINDER (16608064550)
LIFTING CYLINDER (16608062010)
GREASE POINT DESIGN AND INDICATOR
HYDRAULIC SCHEME
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
Позиция на иллюстрации
Заводской номер детали
Название детали
1
30889000174
Hydraulic tank welding
2
51204132514
Bolt
3
51401130107
Spring lock washer
4
51421130115
Washer
5
30813100211
Stopper
6
60307010012
Circular oil leveler
7
60101100556
Air filter
8
51421090115
Washer
9
51401090107
Washer
10
51204091114
Bolt
11
60308000169
Filter of scavenge oil
12
30889100421
Lever of filter cartridge for scavenge oil
13
30889100422
Lever of filter cartridge for oil absorption
14
60920010079
Spring
15
30889100006
Shim
16
30889000121
Flange cover welding
17
51204091214
Bolt
18
51307001119
Nut
19
60308000170
Oil absorption filter
20
60922010032
Shim
21
30889000112
Absorption filter flange welding
22
51421100115
Plain washer
23
51401100107
Spring lock washer
24
51204101114
Bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
