Каталог запасных частей к технике: Lonking (LongGong) CDM-833. HYDRAULIC SYSTEM (30807900349)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
DIESEL ENGINE SYSTEM (30801900161)
ACCELERATOR ASSEMBLY (30801000313)
TORQUE CONVERTER SYSTEM (30802900088)
CONVERTER AND ASSEMBLY OF THE OIL TRANSMISSION CIRCUIT (30802000116)
SUPERIO DRIVE SHAFT ASSEMBLY (17405000007)
TRANSMISSION SYSTEM (30803900063)
AXLE SYSTEM (30804900119)
FRONT UNIT AXLE ASSEMBLY (17401000020)
MEDIUM SUPPORT (17402000010)
MIDDLE/REAR AXLE ASSEMBLY (17409000004)
REAR AXLE ASSEMBLY (17403000032)
CONTROL SYSTEM (30805900121)
ASSEMBLY AND CONTROL OF GEARBOX (30805000224)
ASSEMBLED STEERING WHEEL AND CYLINDER ASSEMBLY PIPE (30806000244)
HYDRAULIC STEERING WHEEL ASSEMBLY (30806000209)
ASSEMBLY PIPE PRIORITY VALVE (30806000062)
INSTALLATION SET GEAR PUMP (30806000243)
HYDRAULIC SYSTEM (30807900349)
HYDRAULIC SYSTEM (30807900349)
HYDRAULIC SYSTEM (30807900349)
ARMED CONTROL PILOT (30807000627)
AIR TANK ASSEMBLY (30808000290)
ASSEMBLY AND INSTALLATION OF BRAKE VALVE PIPE (30808000260)
ASSEMBLY AND INSTALLATION FRONT BOOSTER PUMP (30808000258)
ASSEMBLY AND INSTALLATION REAR BOOSTER PUMP (30808000261)
ASSEMBLY AND INSTALLATION PIPE AIR TANK (30808000262)
EMERGENCY AND PARKING BRAKE SYSTEM (30809900034)
CHASSIS SYSTEM (30810900497)
MOUNTING SYSTEM (30811900259)
SPOON ASSEMBLY (30871900093)
CABIN SYSTEM (30812900225)
CABIN SYSTEM (30812900225)
CABIN SYSTEM (30812900218)
CABIN SYSTEM (30812900218)
EXTERIOR PANEL SYSTEM (30812900218)
HYDRAULIC TANK ASSEMBLY (30889900054)
GAS-OIL TANK ASSEMBLY (30888900037)
GAS-OIL TANK ASSEMBLY (30888900040)
COUNTERWEIGHT ARMING (30887000269)
HOOD ASSEMBLY (30886900063)
HOOD ASSEMBLY (30815000310)
CABLING CAB (30815000310)
ASSEMBLY OF THE AIR CONDITIONER (60400000790)
EVAPORATOR ASSEMBLY (60900003002)
CAPACITOR ASSEMBLY (60900003005)
ASSEMBLY OF THE FRONT WINDSHIELD (60400000569)
REAR WINDSHIELD ASSEMBLY (60400000572)
INSTRUMENT PANEL (604000002244)
INSTRUMENT PANEL (604000002246)
FUSE BOX (604000000576)
ELECTRICAL WIRING OF THE FRONT CHASSIS (30815000310)
ELECTRICAL WIRING OF THE MOTOR (30815000310)
BRAKE VALVE ELECTRICAL WIRING (30815000310)
OIL TANK ELECTRICAL WIRING (30815000310)
ELECTRICAL WIRING OF THE COUNTERWEIGHT (30815000310)
TRANSMISSION ELECTRICAL WIRING (30815000310)
ELECTRICAL WIRING OF TORQUE CONVERTER (30815000310)
ELECTRICAL WIRING OF THE SCRUBBER (30815000310)
TRANSMISSION ASSEMBLY (LGX833VA.03A)
SHIFT CONTROL HIGH/LOW GEAR (ZL30.03.11)
CARTRIDGE FILTER ASSEMBLY (LGX833VA.03.01)
MOUNTING INPUT SHAFT (LGX833VA.03.03)
MOUNTING OUTPUT SHAFT (LGX833VA.03.04)
MOUNTING MIDDLE AXLE (LGX833VA.03.04)
MOUNTING AXLE REVERSE GEAR (LGX833VA.03.06)
MOUNTING FRONT AXLE (1648300150)
FRONT MAIN REDUCER ASSEMBLY (36403000133)
WHEEL REDUCER ASSEMBLY (36402000076)
DIFFERENTIAL ASSEMBLY (36403000111)
WELDING OF THE HOUSING FRONT AXLE (36401000035)
INLET FLANGE WELDING (36403000134)
ASSEMBLED REAR AXLE (16480305130)
REAR MAIN REDUCER ASSEMBLY (36403000137)
WHEEL REDUCER ASSEMBLY (36402000076)
DIFFERENTIAL ASSEMBLY (36403000111)
WELDING HOUSING REAR AXLE (36401000036)
WELDING INLET FLANGE (36403000134)
LEFT STEERING CYLINDER (16608029010)
RIGHT STEERING CYLINDER (16608029120)
TILT CYLINDER (16608064550)
LIFTING CYLINDER (16608062010)
GREASE POINT DESIGN AND INDICATOR
HYDRAULIC SCHEME
1
2
2
3
4
5
6
6
7
8
9
10
11
12
12
13
14
14
15

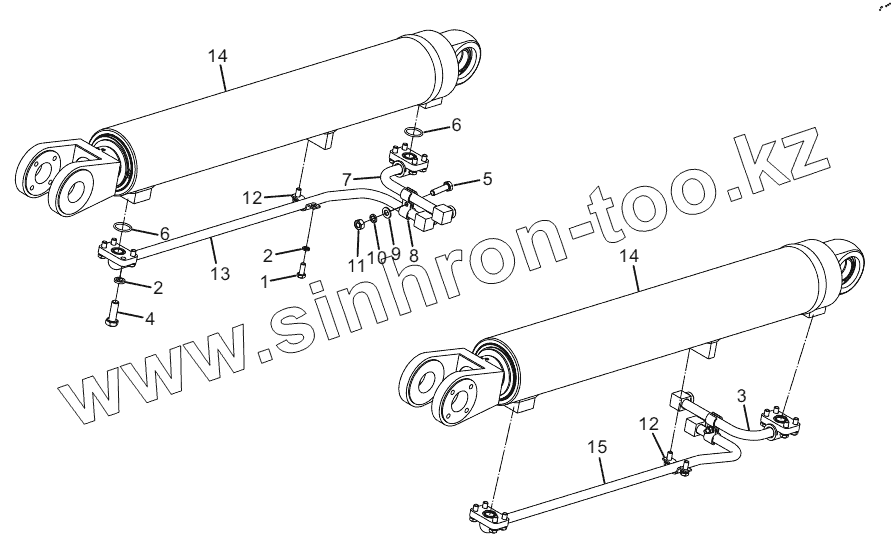

Позиция на иллюстрации
Заводской номер детали
Название детали
1
51204101114
Bolt
2
51401100107
Spring lock washer
3
30893900167
Steel pipe welding
4
51204101214
Bolt
5
51204091114
Bolt
6
56900000201
O-ring 24.99x3.53
7
30893900117
Steel pipe welding
8
30807100190
Boom cylinder inlet/outlet pipe clip
9
51421090115
Washer
10
51401090107
Washer
11
51307000919
Nut
12
30807100363
Tube clip
13
30893900116
Steel pipe welding
14
16608062010
Cylinder d125/d70
15
30893900228
Steel pipe welding
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
