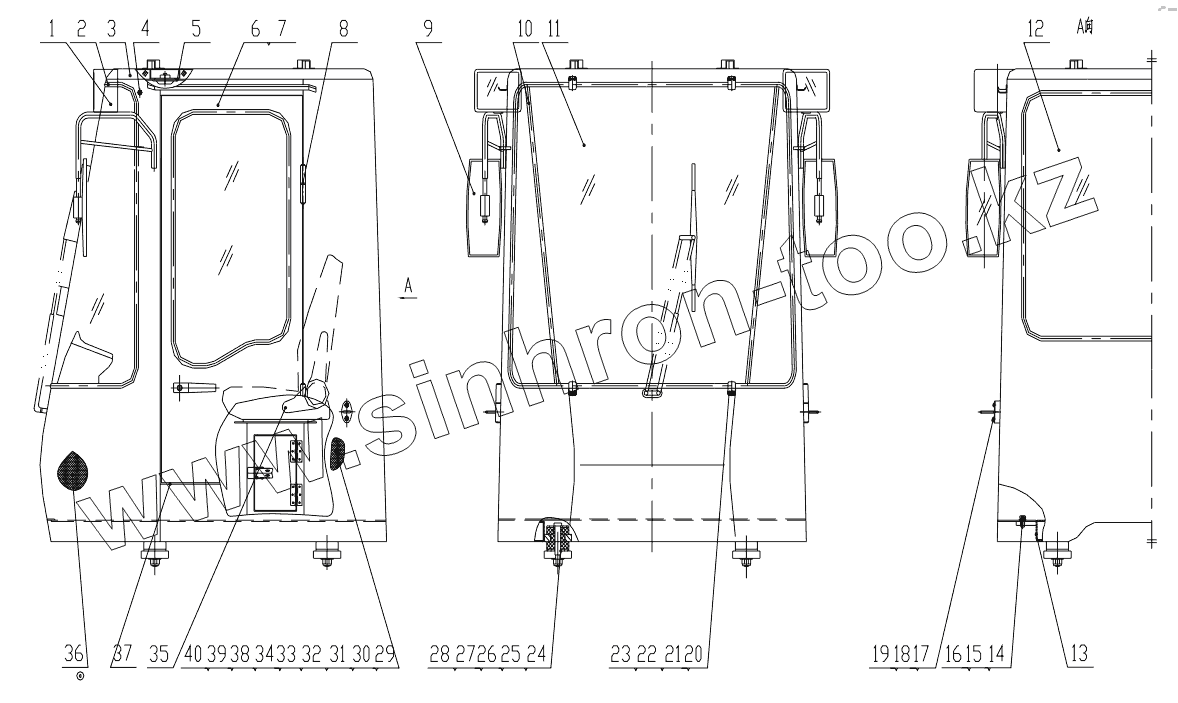

Каталог запасных частей к технике: Lonking (LongGong) CDM-816. Cab system (CDM816B.12)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG30F.12-001 | Side window glass | |
| 2 | LG853.12-020 | Glass rubber strip (black) | |
| 3 | LG816B.12.01 | CAB WELDMENT | |
| 4 | LG30F.12-017 | Harness sheath | |
| 5 | LG30F.12-002 | Decoration ceiling board | |
| 6 | LG30F.12.02 | Left door assembly | |
| 7 | LG30F.12.03 | Right door assembly | |
| 8 | LG853.12.02 | 5-inch hinge | |
| 9 | LG853.12.08 | Rearview mirror | |
| 10 | LG30F12-006 | TRANSPARENT ADHESIVE TAPEY | |
| 11 | LG30F12-007 | FRONT WINDOW GLASS | |
| 12 | LG30F12-008 | REAR WINDOW GLASS | |
| 13 | CDM816B.12.02 | SEAT ASSEMBLY | |
| 14 | GB/T5783 | Bolt | |
| 15 | GB/T93 | Washer | |
| 16 | GB/T97.1 | Washer | |
| 17 | GB/T5783 | Bolt | |
| 18 | GB/T97.1 | Washer | |
| 19 | GB/T93 | Washer | |
| 20 | LG853.12-002 | Glass press board | |
| 21 | GB/T818 | Screw | |
| 22 | GB/T93 | Washer | |
| 23 | GB/T97.1 | Washer | |
| 24 | LG853.12.05 | Rubber pad | |
| 25 | LG853.12-010 | Gasket | |
| 26 | LG853.12-011 | Pin | |
| 27 | LG853.12-012 | Tie plate | |
| 28 | GB/T889.2 | Nut | |
| 29 | LG30F. 12-009 | REAR DECORATIVE BOARD | |
| 30 | LG30F. 12-010 | REAR LEFT DOOR DECORATIVE BOARD | |
| 31 | LG30F. 12-011 | REAR RIGHT DOOR DECORATIVE BOARD | |
| 32 | LG30F.12-012 | Front left doorpost decoration board | |
| 33 | LG30F.12-013 | Front right doorpost decoration board | |
| 34 | LG853.12-003 | Plastic rivet | |
| 35 | SC2-6 | Aero seat | |
| 36 | LG816B.12-001 | FRONT DECORATIVE BOARD | |
| 37 | LG853.12.11 | Glass frame rubber strip | |
| 38 | LG816B.12-002 | LEFT DOOR DOWN DECORATIVE BOARD | |
| 39 | LG816B.12-003 | RIGHT DOOR DOWN DECORATIVE BOARD | |
| 40 | LG816B.12-004 | GROUND PAD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
