Каталог запасных частей к технике: Lonking (LongGong) CDM-6485H. PILOT PIPING III
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

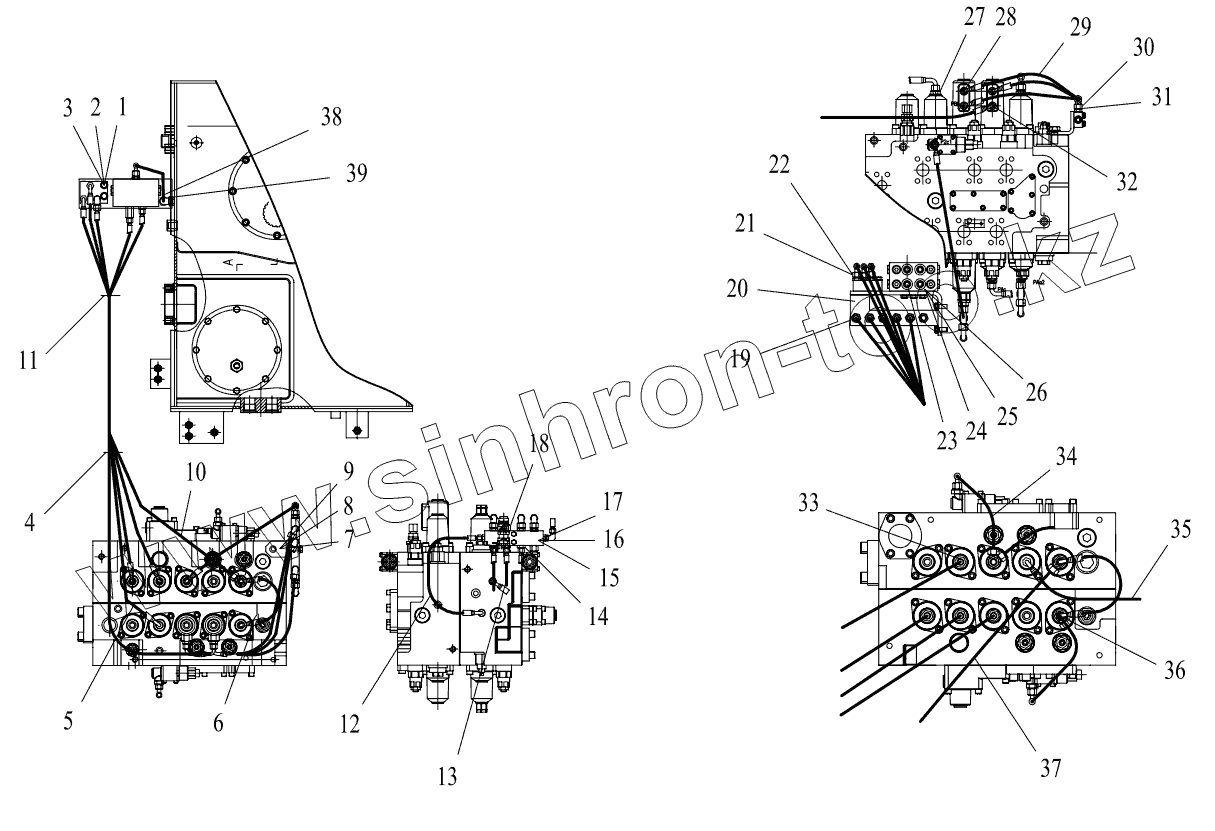

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60304000024 | SHUTTLE VALVE | |
| 2 | 51204101422 | BOLT M10x40 | |
| 3 | 51401100122 | WASHER 12 | |
| 4 | 60919010029 | NYLON BELT | |
| 5 | 17272000732 | HOSE ASS'Y | |
| 6 | 17272004968 | HOSE ASS'Y | |
| 7 | 30605100918 | MOUNTING PLATE | |
| 8 | 51204134222 | BOLT M16x30 | |
| 9 | 51421130121 | WASHER 16 | |
| 10 | 17272000350 | HOSE ASS'Y | |
| 11 | 60919010028 | NYLON BELT | |
| 12 | 17272000012 | HOSE ASS'Y | |
| 13 | 17272004972 | HOSE ASS'Y | |
| 14 | 60911010034 | END STRAIGHT CONNECTOR | |
| 15 | 60301000280 | PILOT CLUSTER VALVE BLOCK | |
| 16 | 51204091322 | BOLT M8x35 | |
| 17 | 51421090121 | WASHER 8 | |
| 18 | 60911010390 | PLUG | |
| 19 | 60911010032 | CONNECTOR BAFFLE | |
| 20 | 30605000449 | SEAT PLATE | |
| 21 | 60911010003 | STRAIGHT CONNECTOR | |
| 22 | 60911010023 | END RIGHT-ANGLE ADJUSTABLE CONNECTOR | |
| 23 | 60911011499 | STRAIGHT CONNECTOR | |
| 24 | 60980003770 | CUSHION VALVE | |
| 25 | 51421100121 | WASHER 10 | |
| 26 | 51204101122 | BOLT M10x25 | |
| 27 | 60911010017 | END STRAIGHT CONNECTOR | |
| 28 | 60911010015 | STRAIGHT CONNECTOR | |
| 29 | 17272000364 | HOSE ASS'Y | |
| 30 | 60911010016 | END STRAIGHT CONNECTOR | |
| 31 | 60911010089 | END RIGHT-ANGLE ADJUSTABLE CONNECTOR | |
| 32 | 17272000371 | HOSE ASS'Y | |
| 33 | 17272003475 | HOSE ASS'Y | |
| 34 | 17272000578 | HOSE ASS'Y | |
| 35 | 17272003483 | HOSE ASS'Y | |
| 36 | 60911010108 | REDUCER THREE-WAY CONNECTOR | |
| 37 | 17272000348 | HOSE ASS'Y | |
| 38 | 17272006280 | HOSE ASS'Y | |
| 39 | 60911010082 | STRAIGHT CONNECTOR |
