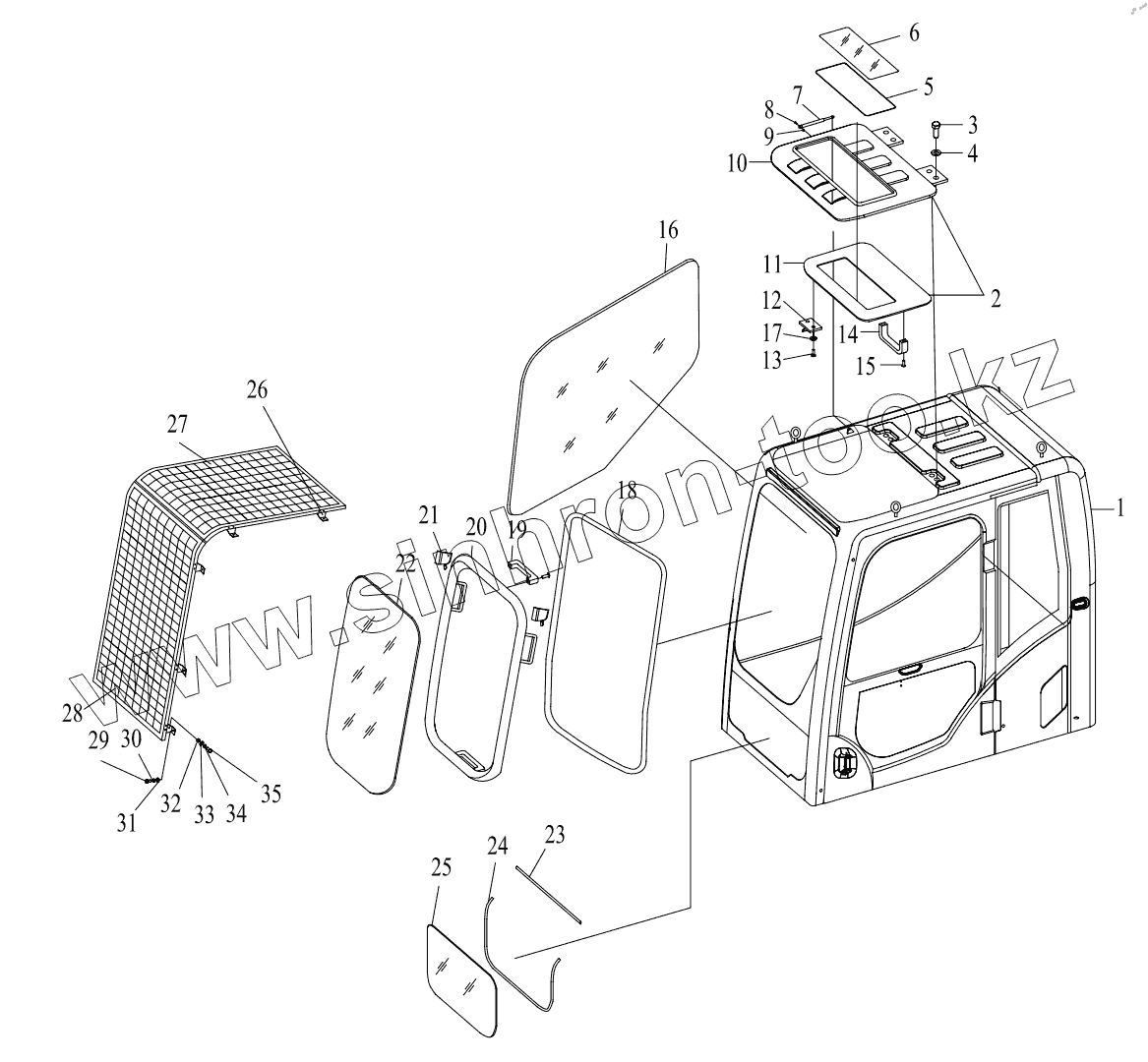

Каталог запасных частей к технике: Lonking (LongGong) CDM-6485H. OPERATOR'S CABIN I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60980002589 | BODY, CABIN | |
| 2 | 60980004073 | TOP WINDOW | |
| 3 | 51204101022 | BOLT M10x20 | |
| 4 | 51421100121 | WASHER 10 | |
| 5 | 60980004077 | SEAL, TOP WINDOW | |
| 6 | 60980004075 | GLASS, TOP WINDOW | |
| 7 | 60980004063 | GAS SPRING | |
| 8 | 60980004094 | PIN | |
| 9 | 51512060701 | COTTER PIN 2x14 | |
| 10 | 60980004076 | SASH, TOP WINDOW | |
| 11 | 60980002039 | DECORATIVE PLATE | |
| 12 | 60980004079 | LOCK, TOP WINDOW | |
| 13 | 51140210509 | HEXAGON BOLT M8x16 | |
| 14 | 60980004074 | HANDLE, TOP WINDOW | |
| 15 | 51140190308 | BOLT M6x12 | |
| 16 | 60980004102 | RIGHT SIDE GLASS | |
| 17 | 51421090121 | WASHER 8 | |
| 18 | 60980002737 | STRIP | |
| 19 | 60980004080 | CATCH, FRONT WINDOW | |
| 20 | 60980004082 | FRAME, FRONT WINDOW | |
| 21 | 60980004101 | LOCK, FRONT WINDOW | |
| 22 | 60980004081 | GLASS, FRONT WINDOW | |
| 23 | 60980004069 | SEAL | |
| 24 | 60980002810 | SEAL | |
| 25 | 60980004067 | LOWER GLASS, FRONT WINDOW | |
| 26 | 60980000068 | GPS ANTENNA COVER | |
| 27 | 60980000923 | TOP PROTECTION | |
| 28 | 60980000924 | GUARD NET | |
| 29 | 51204111122 | BOLT M12x25 | |
| 30 | 51401110122 | WASHER 12 | |
| 31 | 51421110121 | WASHER 12 | |
| 32 | 51307001022 | NUT M10 | |
| 33 | 51421100122 | WASHER 10 | |
| 34 | 51401100122 | WASHER 12 | |
| 35 | 51204101022 | BOLT M10x20 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
