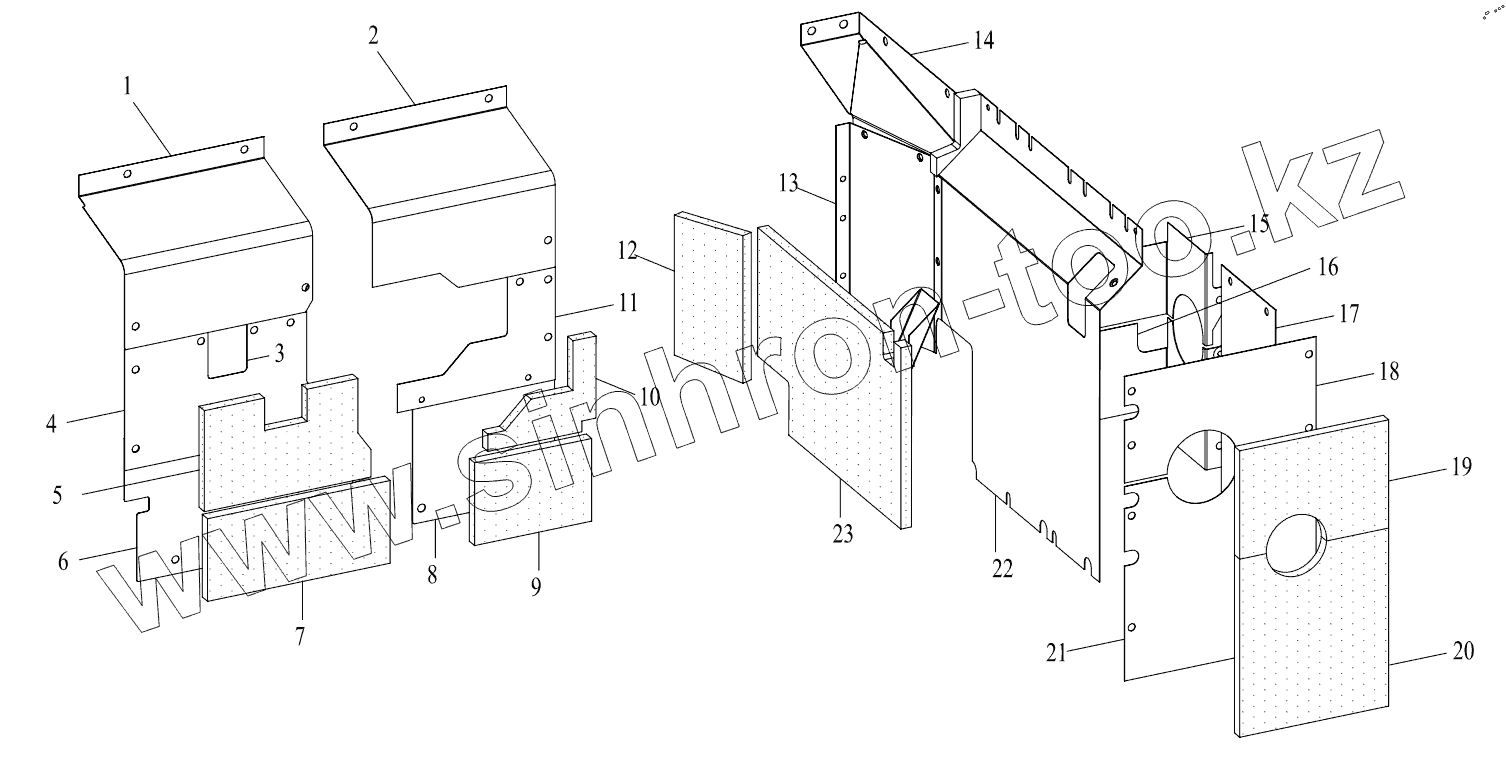

Каталог запасных частей к технике: Lonking (LongGong) CDM-6485H. BAFFLE PLATE ASSY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 30614000640 | UPPER RIGHT COVER PLATE, PUMP | |
| 2 | 30614000641 | UPPER LEFT COVER PLATE, PUMP | |
| 3 | 30614101549 | SMALL COVER PLATE | |
| 4 | 30614000645 | MIDDLE RIGHT COVER PLATE, PUMP | |
| 5 | 30614101548 | SPONGE 9 | |
| 6 | 30614101540 | LOWER RIGHT COVER PLATE, PUMP | |
| 7 | 30614101539 | SPONGE 3 | |
| 8 | 30614101542 | LOWER LEFT COVER PLATE, PUMP | |
| 9 | 30614101541 | SPONGE 4 | |
| 10 | 30614101543 | SPONGE 5 | |
| 11 | 30614000647 | MIDDLE LEFT COVER PLATE, PUMP | |
| 12 | 30614101536 | SPONGE 1 | |
| 13 | 30614000643 | LEFT MIDDLE BAFFLE PLATE ASS'Y, LOWER | |
| 14 | 30614000642 | LEFT MIDDLE BAFFLE PLATE ASS'Y, UPPER | |
| 15 | 30614000648 | RIGHT UPPER COVER | |
| 16 | 30614101538 | RIGHT LOWER COVER PLATE | |
| 17 | 30614101550 | RIGHT COVER PLATE | |
| 18 | 30614101546 | UPPER COVER PLATE, AIR FILTER | |
| 19 | 30614101545 | SPONGE 7 | |
| 20 | 30614101544 | SPONGE 6 | |
| 21 | 30614101542 | LOWER LEFT COVER PLATE PUMP | |
| 22 | 30614000644 | MIDDLE COVER PLATE | |
| 23 | 30614101537 | SPONGE 2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
