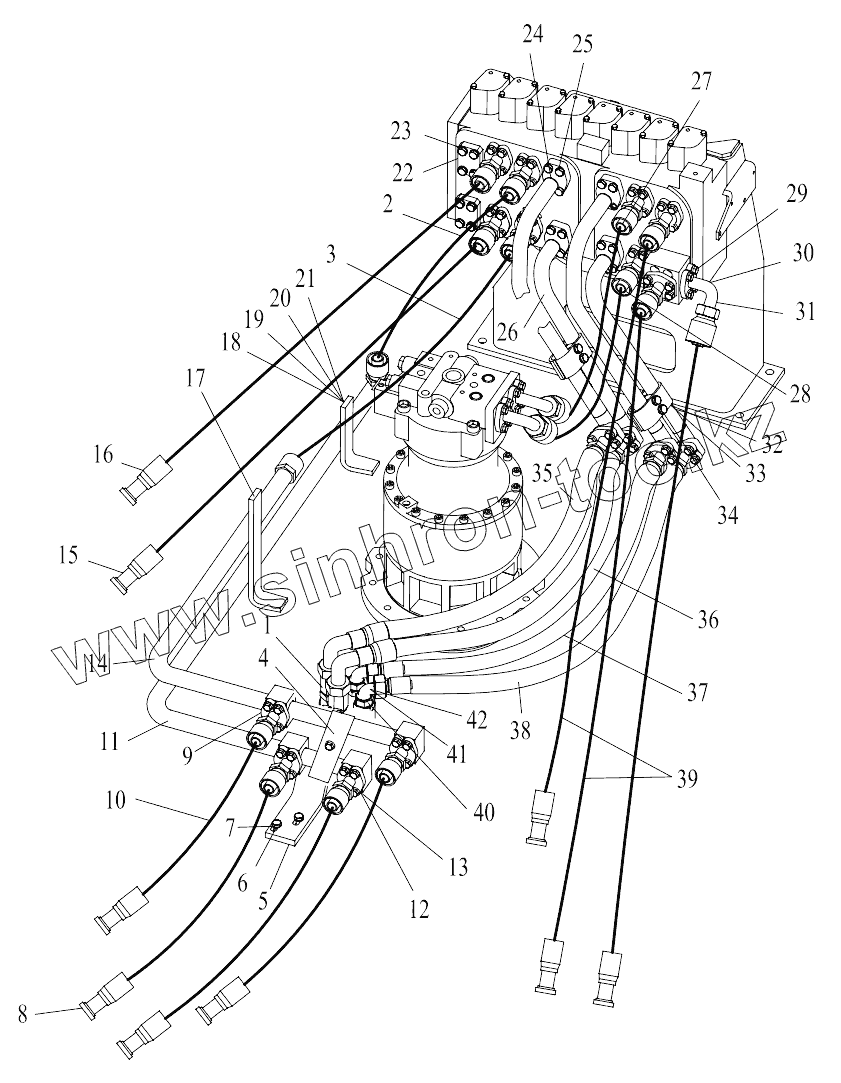

Каталог запасных частей к технике: Lonking (LongGong) CDM-6365H. WORK LINES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG6360.05.04-02 | LONG CONNECTOR | |
| 2 | F7816A6N161616-620 | HOSE ASSY | |
| 3 | F7816A6F202020-1020 | HOSE ASSY | |
| 4 | LG6360.05.03-09 | PIPE CLAMP | |
| 5 | LG6360.05.03-10 | SUPPORT | |
| 6 | GB/T5783 | Bolt | |
| 7 | GB/T97.1 | Washer | |
| 8 | F7811515161616-1150 | HOSE ASSY | |
| 9 | M1M1HK-16 | FLANGE | |
| 10 | F7811515161616-1100 | HOSE ASSY | |
| 11 | LG6360.05.03.04 | SMALL CHAMBER PIPE | |
| 12 | O222 | O-RING d37.69x3.53 | |
| 13 | FS-20 | FLANGE COMPONENT | |
| 14 | LG6360.05.03.05 | BIG CHAMBER PIPE | |
| 15 | F7316A15161616-1800 | HOSE ASSY | |
| 16 | F7316A15161616-1750 | HOSE ASSY | |
| 17 | LG6360.05.03-08 | SUPPORT 2 | |
| 18 | LG6360.05.03-07 | SUPPORT 1 | |
| 19 | JB/ZQ4321 | U-BOLT 38 | |
| 20 | GB/T6170 | Nut | |
| 21 | GB/T5783 | Bolt | |
| 22 | LG6360.05.03-04 | FLANGE COVER | |
| 23 | O219 | O-RING d32.92x3.53 | |
| 24 | LG6360.05.04.01 | TRAVEL PIPE | |
| 25 | GB/T5782 | Bolt | |
| 26 | LG6360.05.04.02 | TRAVEL PIPE | |
| 27 | F7316A19161616-640 | HOSE ASSY | |
| 28 | F7316A19161616-750 | HOSE ASSY | |
| 29 | GB/T5782 | Bolt | |
| 30 | M2M2HK-16 | FLANGE COMPONENT | |
| 31 | F7316N15161616-1900 | HOSE ASSY | |
| 32 | LG6360.15-04 | RUBBER PAD | |
| 33 | LG6360.05.04.03 | PIPE CLAMP | |
| 34 | GB/T5782 | Bolt | |
| 35 | F7311C15161616-1020 | HOSE ASSY | |
| 36 | F7311C15161616-1070 | HOSE ASSY | |
| 37 | F731C915161616-1010 | HOSE ASSY | |
| 38 | F731C915161616-1090 | HOSE ASSY | |
| 39 | F7316A15161616-1750 | HOSE ASSY | |
| 40 | LG6360.05.04-01 | NONSTANDARD CONNECTOR | |
| 41 | P30(JIS B2401) | O-RING d29.7x3.5 | |
| 42 | EW25SOMDA3C | RIGHT ANGLE COMBINED |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
