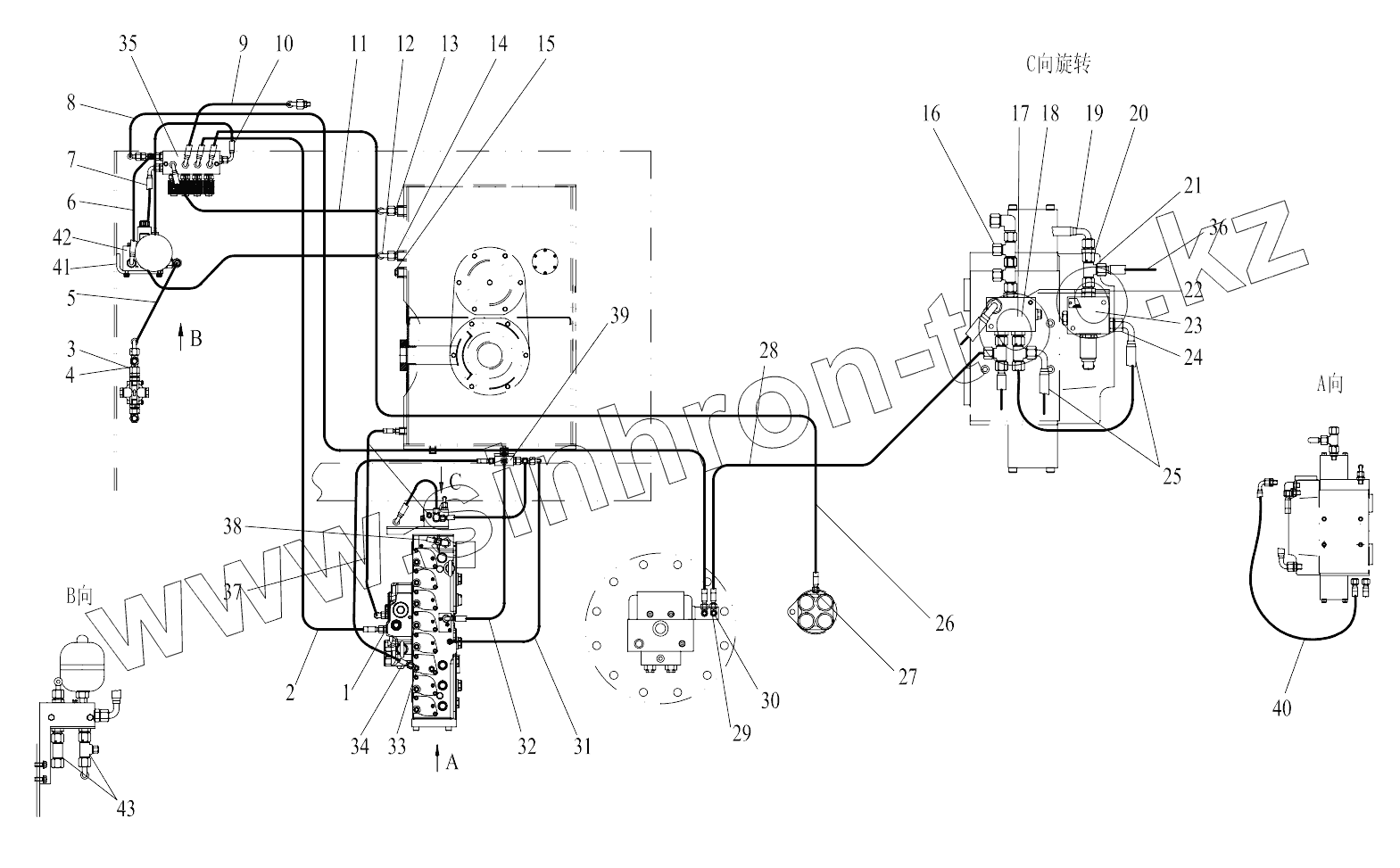

Каталог запасных частей к технике: Lonking (LongGong) CDM-6365H. PILOT LINES I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1B-06-04WD | END STRAIGHT CONNECTOR | |
| 2 | F481CACF121206-2800 | HOSE ASSY | |
| 3 | CYS-08 | PRESSURE THREE-WAY CONNECTOR | |
| 4 | EMA3/1/4 | PRESSURE CONNECTOR | |
| 5 | F481CACF151508-500 | HOSE ASSY | |
| 6 | F481CACF121206-600 | HOSE ASSY | |
| 7 | F481CACF121206-400 | HOSE ASSY | |
| 8 | F481CACF121206-3650-PG500 | HOSE ASSY | |
| 9 | F481CACF121206-1300 | HOSE ASSY | |
| 10 | F481CACF121206-550 | HOSE ASSY | |
| 11 | F481CACF121206-1600 | HOSE ASSY | |
| 12 | F481CACF151508-1900 | HOSE ASSY | |
| 13 | 1BG-06B2351 | END STRAIGHT CONNECTOR | |
| 14 | 1BG-08B2351 | END STRAIGHT CONNECTOR | |
| 15 | 4G-08 B2351 | PLUG | |
| 16 | CYS-06-M12 | PRESSURE CONNECTOR | |
| 17 | MH3WA06CG1X/004M01 | DUMP VALVE | |
| 18 | GB/T5782 | Bolt | |
| 19 | F481CACF121206-400 | HOSE ASSY | |
| 20 | LG6360.05.01-04A | THROTTLE CONNECTOR | |
| 21 | CB-04 | THREE-WAY CONNECTOR | |
| 22 | 2B-04 | COMBINED CONNECTOR | |
| 23 | MHFP04G1-1X/1DX18G24C4V01-005 | PROPORTIONAL VALVE | |
| 24 | 1B-04WD | END STRAIGHT CONNECTOR | |
| 25 | F481CACF080804-400-PG400 | HOSE ASSY | |
| 26 | F481CACF121206-3600 | HOSE ASSY | |
| 27 | 1BH-06-14 | END STRAIGHT CONNECTOR | |
| 28 | F481CACF121206-1300 | HOSE ASSY | |
| 29 | 1BG-06-04B2351 | STRAIGHT CONNECTOR | |
| 30 | 2B9-06 | STRAIGHT CONNECTOR | |
| 31 | F481CACF121206-650 | HOSE ASSY | |
| 32 | F481CACF121206-1200 | HOSE ASSY | |
| 33 | CB-06 | THREE-WAY CONNECTOR | |
| 34 | F481CACF121206-1150 | HOSE ASSY | |
| 35 | 1010225 | SOLENOID VALVE | |
| 36 | F481CACF080804-600-PG600 | HOSE ASSY | |
| 37 | F481CACF080804-660 | HOSE ASSY | |
| 38 | F481CACF080804-500 | HOSE ASSY | |
| 39 | WYS-02 | SHUTTLE VALVE BLOCK | |
| 40 | F481CACA080804-1200 | HOSE ASSY | |
| 41 | LG6360.05B.05-01 | SEAT BOARD | |
| 42 | 1010224 | PILOT VALVE | |
| 43 | BJS-08-06 | REDUCER CONNECTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
