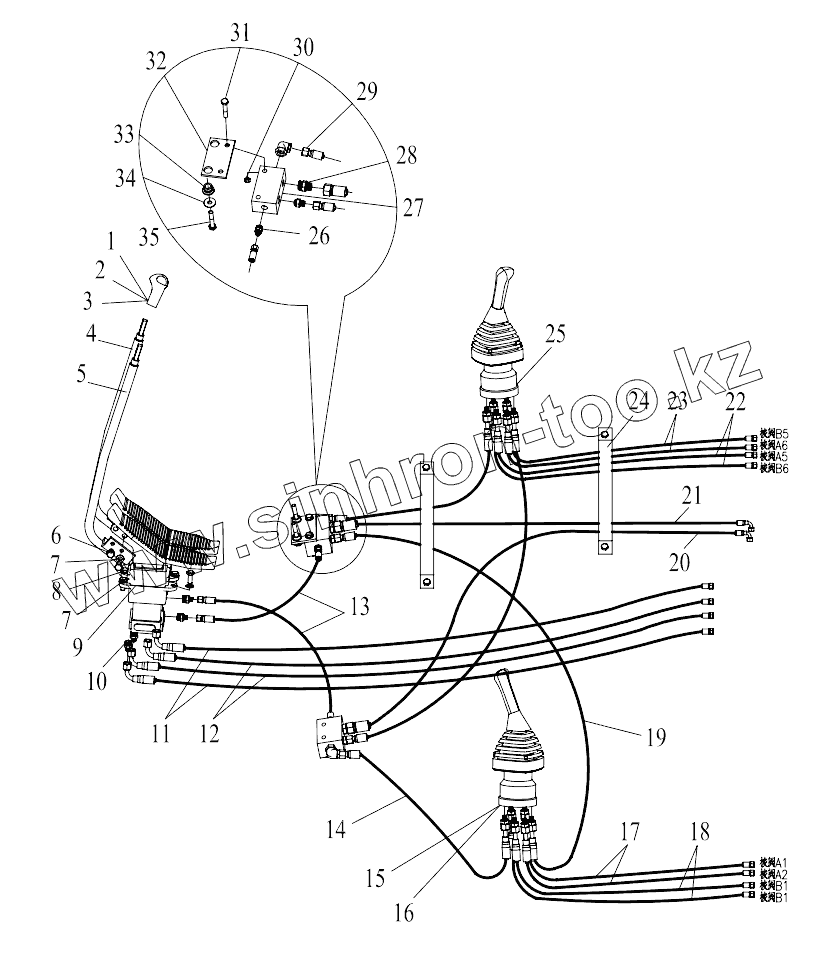

Каталог запасных частей к технике: Lonking (LongGong) CDM-6365H. CONTROL SYSTEM
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | D60-01-00001/02 | GRIP | |
| 2 | GB/T818 | Screw | |
| 3 | GB/T97.1 | Washer | |
| 4 | CDM6210.19.02.01 | CONTROL LEVER R.H. | |
| 5 | CDM6210.19.02.02 | CONTROL LEVER L.H. | |
| 6 | GB/T70.1 | Screw | |
| 7 | GB/T97.1 | Washer | |
| 8 | GB/T5783 | Bolt | |
| 9 | 4TH6NRC70-20/M01 | Foot valve | |
| 10 | 1B-06-04WD | END STRAIGHT CONNECTOR | |
| 11 | F481CECF121206-3150-90° | HOSE ASSY | |
| 12 | F481CFCF121206-3150-90° | HOSE ASSY | |
| 13 | F481CACA121206-800 | HOSE ASSY | |
| 14 | F481CACF121206-950 | HOSE ASSY | |
| 15 | 4TH6NE70-10/VT43M01 | PILOT VALVE L.H. | |
| 16 | GB/T70.1 | Screw | |
| 17 | F481CACE121206-2900 | HOSE ASSY | |
| 18 | F481CACF121206-2900 | HOSE ASSY | |
| 19 | F481CACF121206-1050 | HOSE ASSY | |
| 20 | F481CACF151508-1800 | HOSE ASSY | |
| 21 | F481CACF151508-3500 | HOSE ASSY | |
| 22 | F481CACF121206-3150 | HOSE ASSY | |
| 23 | F481CACE121206-3150 | HOSE ASSY | |
| 24 | LG6360.05.06-01 | PIPE CLAMP | |
| 25 | 4TH6NE70-10/VT23M01 | PILOT VALVE R.H. | |
| 26 | 1BG-06-04 B2351 | END STRAIGHT CONNECTOR | |
| 27 | LG6230.05.06-01 | PT BLOCK | |
| 28 | 1BG-06B2351 | END STRAIGHT CONNECTOR | |
| 29 | F481CACA121206-1400 | HOSE ASSY | |
| 30 | GB/T6170 | Nut | |
| 31 | GB/T5782 | Bolt | |
| 32 | LG6230.05.06-02 | MOUNTING PLATE | |
| 33 | LG6230.05.01.05 | DAMPING WASHER | |
| 34 | GB/T96.1 | Washer | |
| 35 | GB/T5783 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
