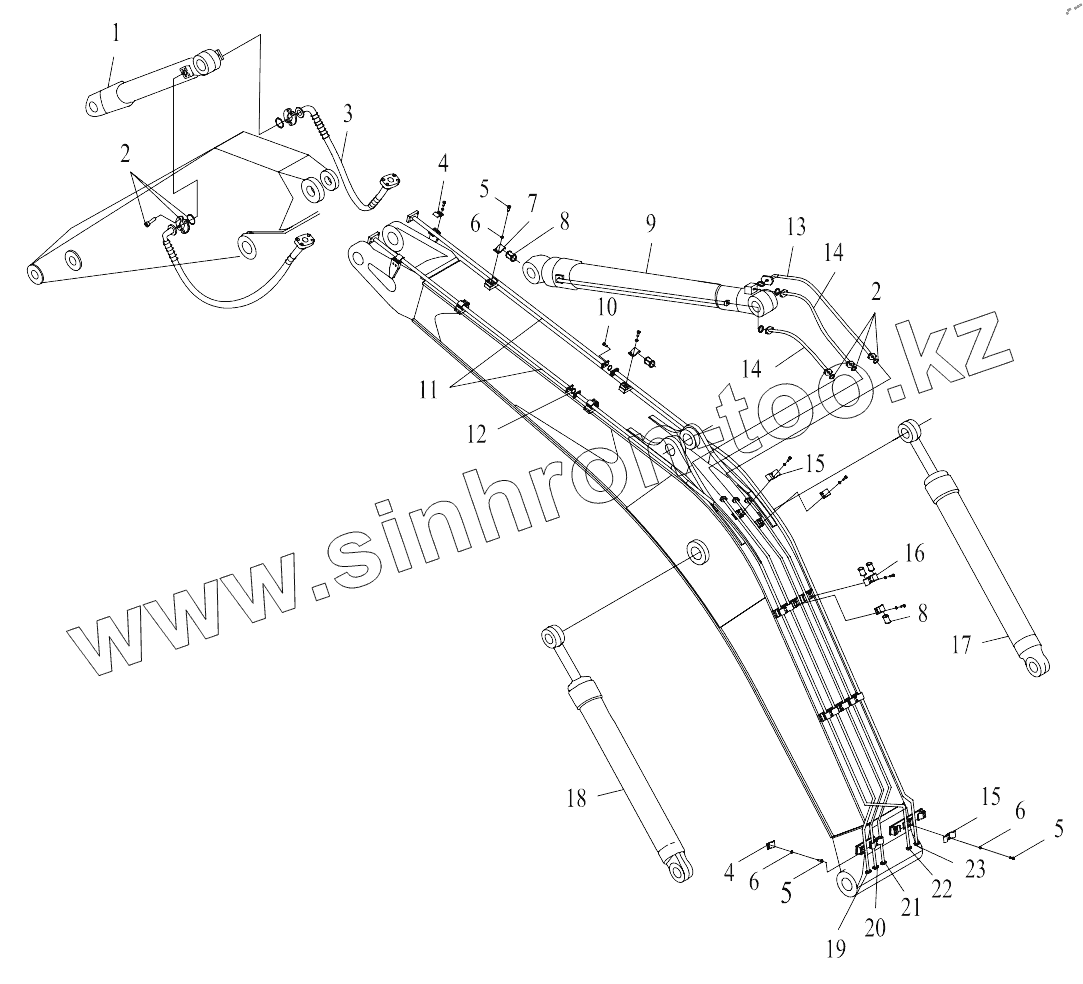

Каталог запасных частей к технике: Lonking (LongGong) CDM-6365H. COMPLEMENT LINES
1
2
2
3
3
4
4
5
5
5
6
6
6
7
8
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG6360.32(H103424A1) | CYLINDER 140/100 | |
| 2 | M1M1HK-16 | FLANGE | |
| 3 | F7811519161616-1900(PG119) | HOSE ASSY | |
| 3 | F7811519161616-2100-SG2100 | HOSE ASSY | |
| 4 | LG6360.15-03 | PLATE | |
| 5 | GB/T 5783 | BOLT M12x35 | |
| 6 | GB/T 97.1 | WASHER 8 | |
| 7 | LG6360.15-05 | PLATE | |
| 8 | LG6360.15-04 | RUBBER PAD | |
| 9 | LG6360.31(H103421A1) | CYLINDER 160/115 | |
| 10 | GB/T70.1 | Screw | |
| 11 | LG6360.15.07 | PIPE ASSY | |
| 12 | O-RING d32.92x3.53 | O-RING d32.92x3.53 | |
| 13 | F7811519161616-880 | HOSE ASSY 1 | |
| 14 | F7811515161616-850 | HOSE ASSY 2 | |
| 15 | LG6360.15-01 | PLATE | |
| 16 | LG6360.15-03 | PLATE | |
| 17 | LG6360.29R(H103422A1) | CYLINDER 140/100 | |
| 18 | LG6360.30L(H103423A1) | CYLINDER 140/100 | |
| 19 | LG6360.15.03 | PIPE ASSY | |
| 20 | LG6360.15.04 | PIPE ASSY | |
| 21 | LG6360.15.05 | PIPE ASSY | |
| 22 | LG6360.15.02 | PIPE ASSY | |
| 23 | LG6360.15.06 | PIPE ASSY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
