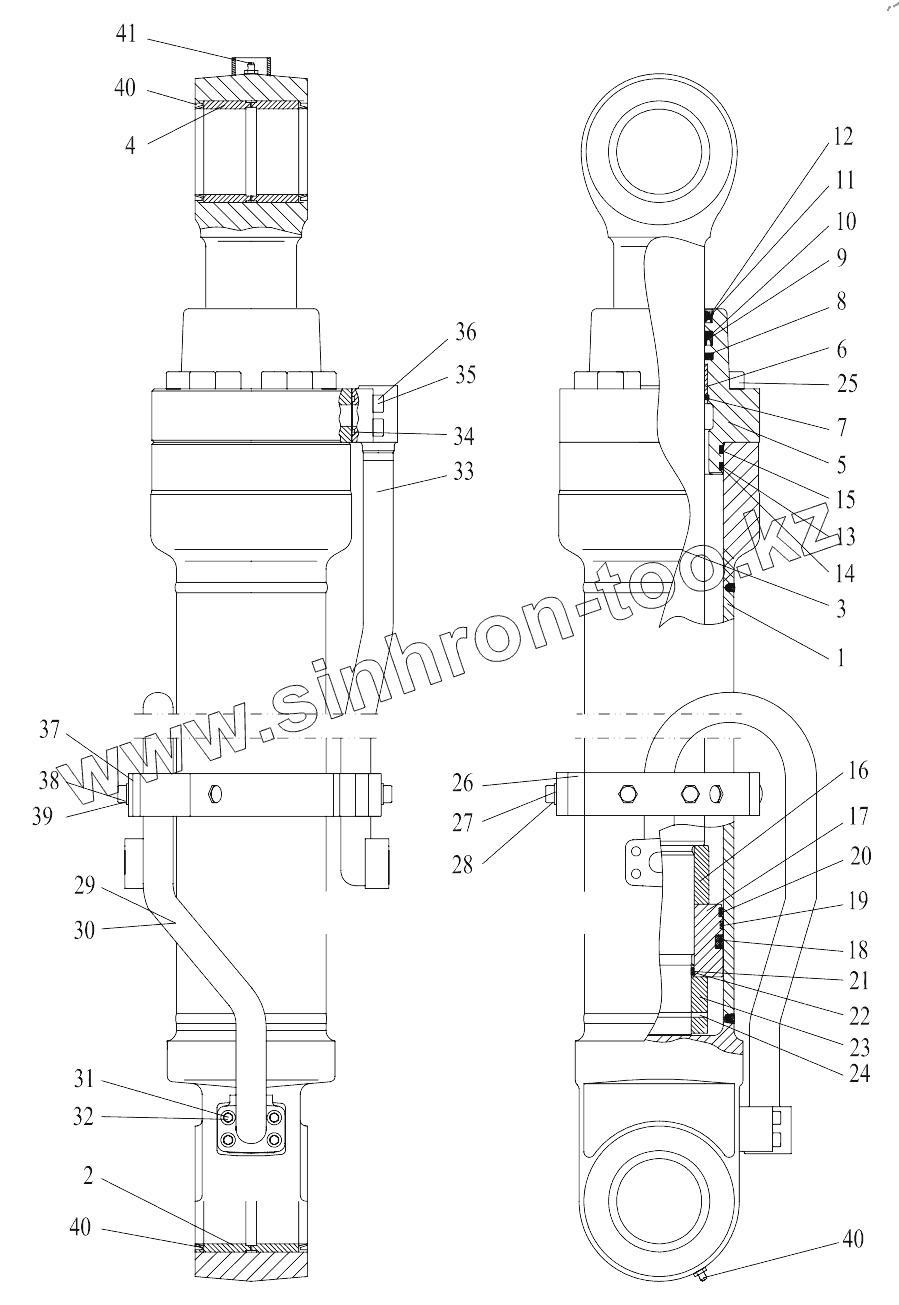

Каталог запасных частей к технике: Lonking (LongGong) CDM-6365H. BUCKET CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | H311626B1 | CYLINDER | |
| 2 | 00B170-0 | BUSH | |
| 3 | H311627B1 | PISTON ROD | |
| 4 | 00B170-0 | BUSH | |
| 5 | 83A223-A | FRONT FLANGE | |
| 6 | E8415283 | WEARING BELT | |
| 7 | 00M315-0 | RETAINER RING | |
| 8 | E5500321 | SHOCK-ABSORBING SEAL | |
| 9 | E5320842 | U-WASHER | |
| 10 | E6671080 | WASHER | |
| 11 | E6020320 | DUST SEAL | |
| 12 | 00M498-0 | RETAINER RING | |
| 13 | E6311741 | O-RING | |
| 14 | 53B316-1 | RETAINER RING | |
| 15 | E6490059 | O-RING | |
| 16 | 00C371-0 | BUSH | |
| 17 | 53A611-1 | PISTON | |
| 18 | E5130320 | SEAL, PISTON | |
| 19 | 00Z109-0 | WEARING RING | |
| 20 | 00R730-0 | DUST SEAL | |
| 21 | E6311441 | O-RING | |
| 22 | 53B441-1 | RETAINER RING | |
| 23 | 53B432-0 | NUT, PISTON | |
| 24 | E1330544 | LOCATING SCREW | |
| 25 | E0502149 | HEX BOLT | |
| 26 | H311225A1 | PIPE CLAMP COMPONENT | |
| 27 | E3110112 | SPRING WASHER | |
| 28 | E0020973 | HEX BOLT | |
| 29 | H311223B1 | STEEL PIPE | |
| 30 | E6300761 | O-RING | |
| 31 | E3110112 | SPRING WASHER | |
| 32 | E0501559 | HEX BOLT | |
| 33 | H311224B1 | PIPE COMPONENTS | |
| 34 | E6300761 | O-RING | |
| 35 | E3110112 | SPRING WASHER | |
| 36 | E0501559 | HEX BOLT | |
| 37 | E3A770-1 | PIPE CLAMP | |
| 38 | E3110132 | SPRING WASHER | |
| 39 | E0021593 | HEX BOLT | |
| 40 | E6150820 | PIN | |
| 41 | E8841032 | GREASE FITTING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
