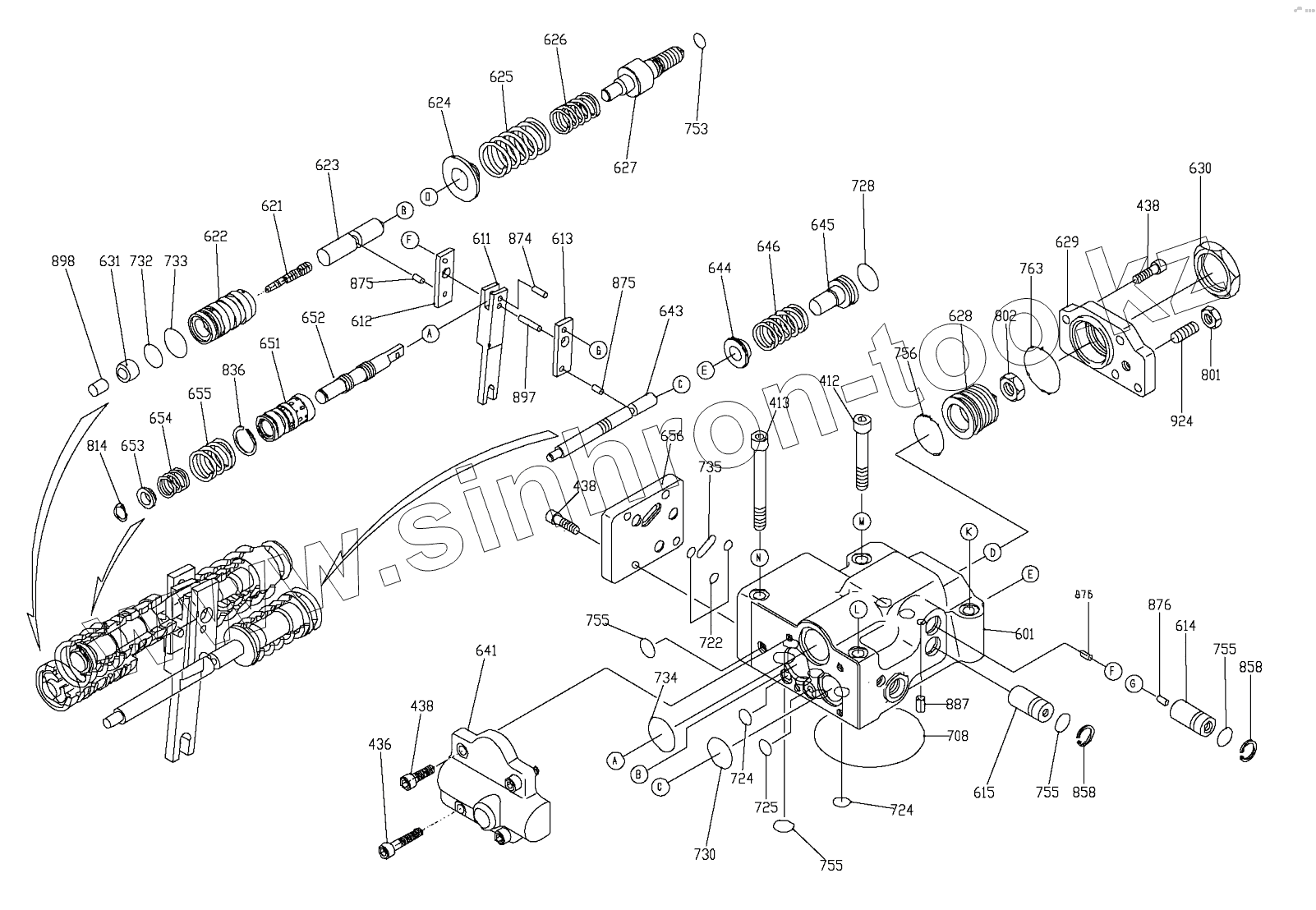

Каталог запасных частей к технике: Lonking (LongGong) CDM-6240. REGULATER ASSY
412
413
436
438
438
438
601
611
612
613
614
615
621
622
623
624
625
626
627
628
629
630
631
641
643
644
645
646
651
652
653
654
655
656
708
722
724
724
725
728
730
732
733
734
735
753
755
755
755
755
756
763
801
802
814
836
858
858
874
875
875
876
876
887
897
898
924
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 412 | OSBM850 | SCREW,HEX.S.H..C | |
| 413 | OSBM870 | SCREW,HEX.S.H..C | |
| 436 | OSBM630 | SCREW,HEX.S.H..C | |
| 438 | OSBM620 | SCREW,HEX.S.H..C | |
| 601 | 2923801016 | CASING | |
| 611 | 2953802680 | LEVER,FEEDBACK | |
| 612 | 3953801683 | LEVER(1) | |
| 613 | 3953801684 | LEVER(2) | |
| 614 | 2953801685 | PLUG,CENTER | |
| 615 | 2953801686 | PLUG,ADJUST | |
| 621 | 3953801687 | PISTON,COMPENSATER | |
| 622 | 2953801688 | DASE,PISTON | |
| 623 | 2926780-0402 | ROD,COMPENSATER | |
| 624 | 2903270-0804 | SEAT(C),SPRING | |
| 625 | 2953801929 | SPRING,OUTER | |
| 626 | 2953801692 | SPRING,INNER | |
| 627 | 2933260-0350 | STEM(C),ADJUST | |
| 628 | 2903300-0326 | SCREW(C),ADJUST | |
| 629 | 2943800443 | COVER(C) | |
| 630 | 2953801695 | NUT,LACK | |
| 631 | 2953801922 | SLEEVE,Pf | |
| 641 | 2943800532 | COVER,PILOT | |
| 643 | 2924550-0405 | PISTON,PILOT | |
| 644 | 2903270-0855 | SEAT(Q),SPRING | |
| 645 | 2963801700-6 | STEM(Q),ADJUST | |
| 646 | 2953801833 | SPRING,PILOT | |
| 651 | 2943800521 | SLEEVE | |
| 652 | 2953801706 | SPOOL | |
| 653 | 2953801707 | SEAT, | |
| 654 | 2953801746 | SPRING,RETURN | |
| 655 | 2953801709 | SPRING,SET | |
| 656 | 2953802034 | COVER,SLECK | |
| 708 | OORBG75W | O-RING | |
| 722 | OORBP6W | O-RING | |
| 724 | OORBP8W | O-RING | |
| 725 | OORBP10W | O-RING | |
| 728 | OORBP18W | O-RING | |
| 730 | OORBP22W | O-RING | |
| 732 | OORBP16W | O-RING | |
| 733 | OORBP20W | O-RING | |
| 734 | OORBG25W | O-RING | |
| 735 | OORBP1250W | O-RING | |
| 753 | OORBP9W | O-RING | |
| 755 | OORBP11W | O-RING | |
| 756 | OORBP25W | O-RING | |
| 763 | OORBG35W | O-RING | |
| 801 | ORNM8 | NUT | |
| 802 | 2903480-0355 | NUT | |
| 814 | OSR10 | RING SNAP | |
| 836 | PWR20 | RING SNAP | |
| 858 | ORR15 | RING SNAP | |
| 874 | PJR411 | PIN | |
| 875 | PJR408 | PIN | |
| 876 | PJR508 | PIN | |
| 887 | 2953801817 | PIN | |
| 897 | PJR519 | PIN | |
| 898 | PJR1010 | PIN | |
| 924 | PSSSM820 | SCREW,SET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
