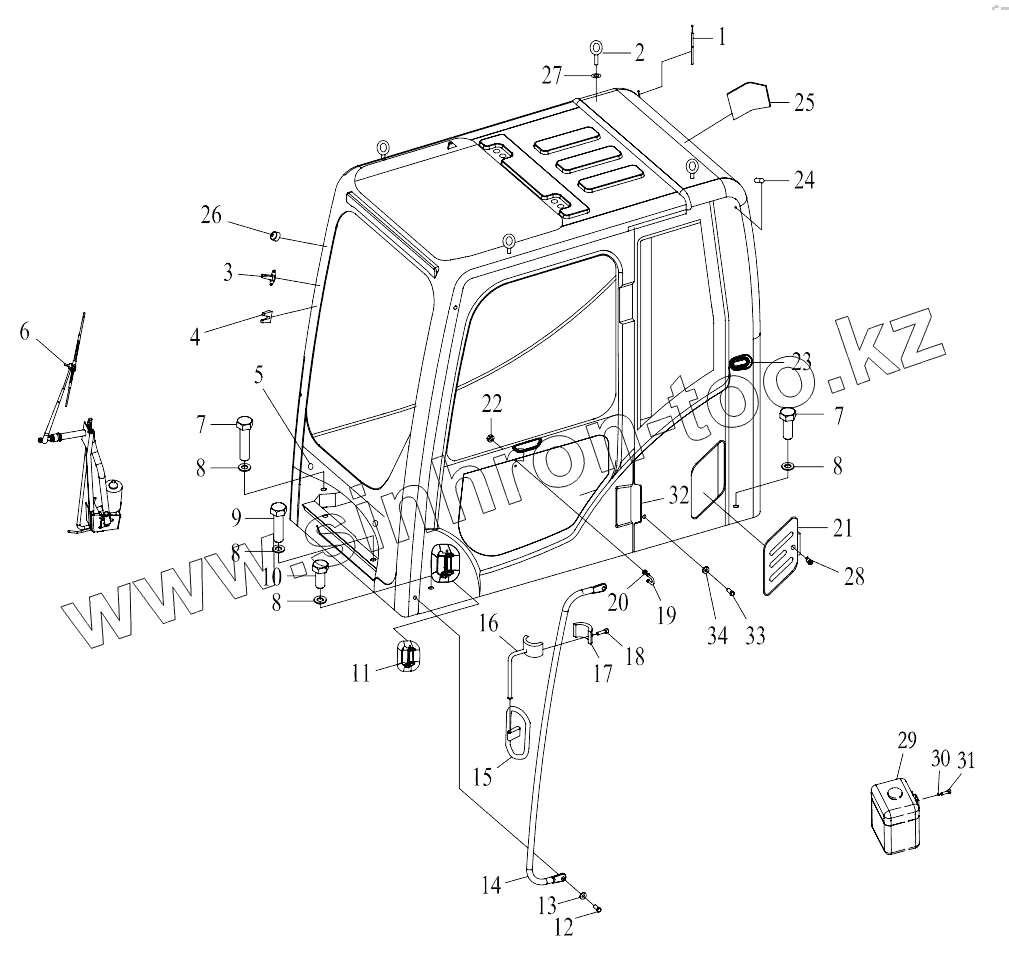

Каталог запасных частей к технике: Lonking (LongGong) CDM-6240. OPERATOR'S CAB
1
2
3
4
5
6
7
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60980004070 | RADIO ANTENNA ASS'Y | |
| 2 | 60980000559 | LIFTING RING | |
| 3 | 60980003456 | NOZZLE | |
| 4 | 60980004090 | SPACER | |
| 5 | 60980004086 | HANDLE, LOWER WINDSCREEN | |
| 6 | 60980002142 | WIPER ASS'Y | |
| 7 | 51204133922 | BOLT M16x60 | |
| 8 | 51421130121 | WASHER 16 | |
| 9 | 51204134022 | BOLT M16x70 | |
| 10 | 51204133722 | BOLT M16x40 | |
| 11 | 60980002707 | LOCK ASS'Y, DOOR | |
| 12 | 51204111222 | BOLT M12x30 | |
| 13 | 51421110121 | WASHER 12 | |
| 14 | 60980004084 | OUTER HANDRAIL | |
| 15 | 60980002145 | BACK MIRROR | |
| 16 | 60980002309 | BACK MIRROR SUPPORT, (FRONT) | |
| 17 | 60980002241 | BACK NIRROR SUPPORT, (REAR) | |
| 18 | 51204091022 | BOLT M8x20 | |
| 19 | 60980004061 | LOCK CATCH | |
| 20 | 60980004091 | RUBBER PAD | |
| 21 | 60980004083 | OUTER AIR INTAKE ASS'Y | |
| 22 | 51307001022 | NUT M10 | |
| 23 | 60980002090 | LOCK | |
| 24 | 60980002114 | RUBBER STOPPER, LOCK | |
| 25 | 60980000068 | GPS ANTENNA COVER | |
| 26 | 60980004092 | RUBBER PLUG M12 | |
| 27 | 60980004093 | RUBBER PAD 12 | |
| 28 | 60980003621 | ENTER WIND DOOR LOCK | |
| 29 | 60980005466 | BLOW CAN | |
| 30 | 51421080121 | WASHER 6 | |
| 31 | 51158190510 | BOLT M6x16 | |
| 32 | 60980005390 | HINGE,CAB | |
| 33 | 51204121222 | BOLT M14x30 | |
| 34 | 51421120121 | WASHER 14 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
