Каталог запасных частей к технике: Lonking (LongGong) CDM-6240. CONTROL SYSTEM
1
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

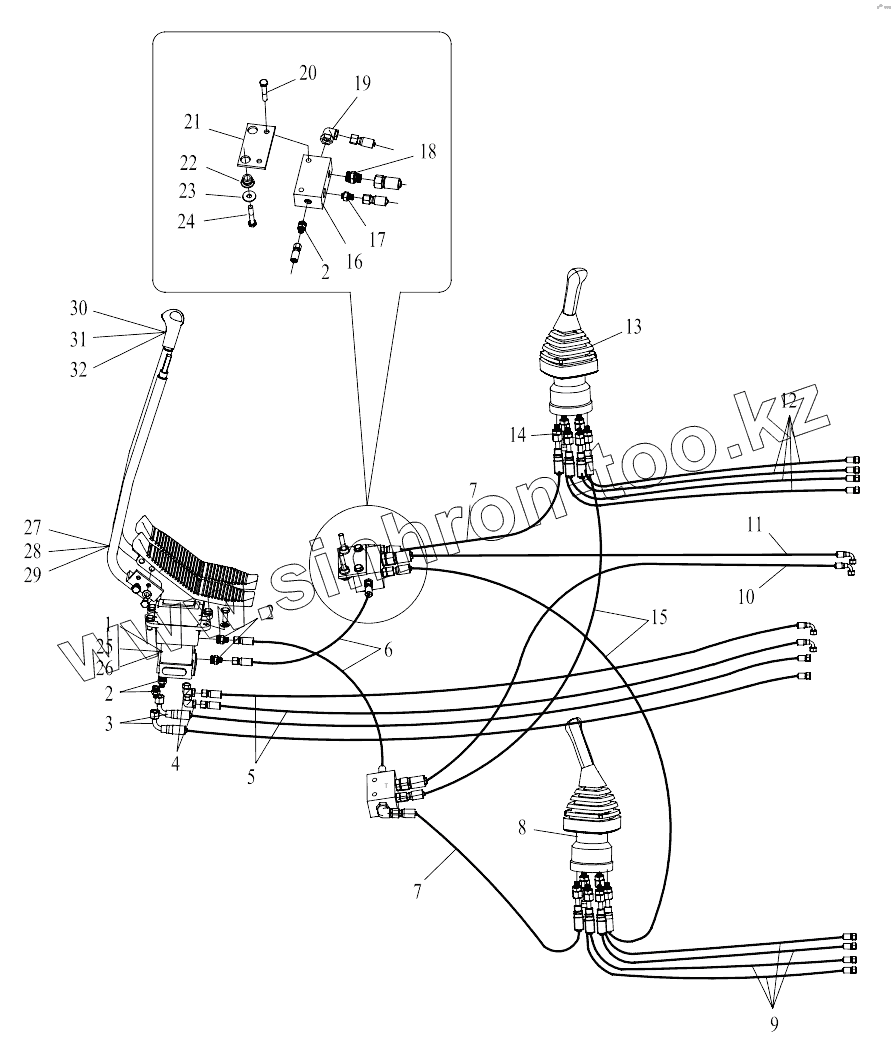

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60304000023 | FOOT PEDAL PILOT VALVE | |
| 2 | 60911010016 | END STRAIGHT CONNECTOR | |
| 3 | 17272000308 | HOSE ASS’Y | |
| 4 | 60911010089 | END RIGHT-ANGLE ADJUSTABLE CONNECTOR | |
| 5 | 17272003187 | HOSE ASS’Y | |
| 6 | 17272000287 | HOSE ASS’Y | |
| 7 | 17272000289 | HOSE ASS’Y | |
| 8 | 60207010007 | PILOT VALVE, L.H. | |
| 9 | 17272000293 | HOSE ASS’Y | |
| 10 | 17272000299 | HOSE ASS’Y | |
| 11 | 17272003198 | HOSE ASS’Y | |
| 12 | 17272000294 | HOSE ASS’Y | |
| 13 | 60207010008 | PILOT VALVE, R.H. | |
| 14 | 60911010034 | END STRAIGHT CONNECTOR | |
| 15 | 17272000291 | HOSE ASS’Y | |
| 16 | 30605100221 | PT BLOCK | |
| 17 | 60911010017 | END STRAIGHT CONNECTOR | |
| 18 | 60911010018 | END STRAIGHT CONNECTOR | |
| 19 | 60911010023 | END RIGHT-ANGLE ADJUSTABLE CONNECTOR | |
| 20 | 51203101821 | BOLT M10x60 | |
| 21 | 30605100220 | MOUNTING PLATE | |
| 22 | 30605000102 | DAMPING WASHER | |
| 23 | 51420100122 | WASHER 10 | |
| 24 | 51204101122 | BOLT M10x25 | |
| 25 | 51204101022 | BOLT M10x20 | |
| 26 | 51421100121 | WASHER 10 | |
| 27 | 30605000977 | CONTROL LEVER L.H | |
| 28 | 30605000976 | CONTROL LEVER R.H | |
| 29 | 51307001022 | NUT M10 | |
| 30 | 51158140710 | SCREW M4x16 | |
| 31 | 60207010006 | GRIP | |
| 32 | 60207010022 | GRIP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
