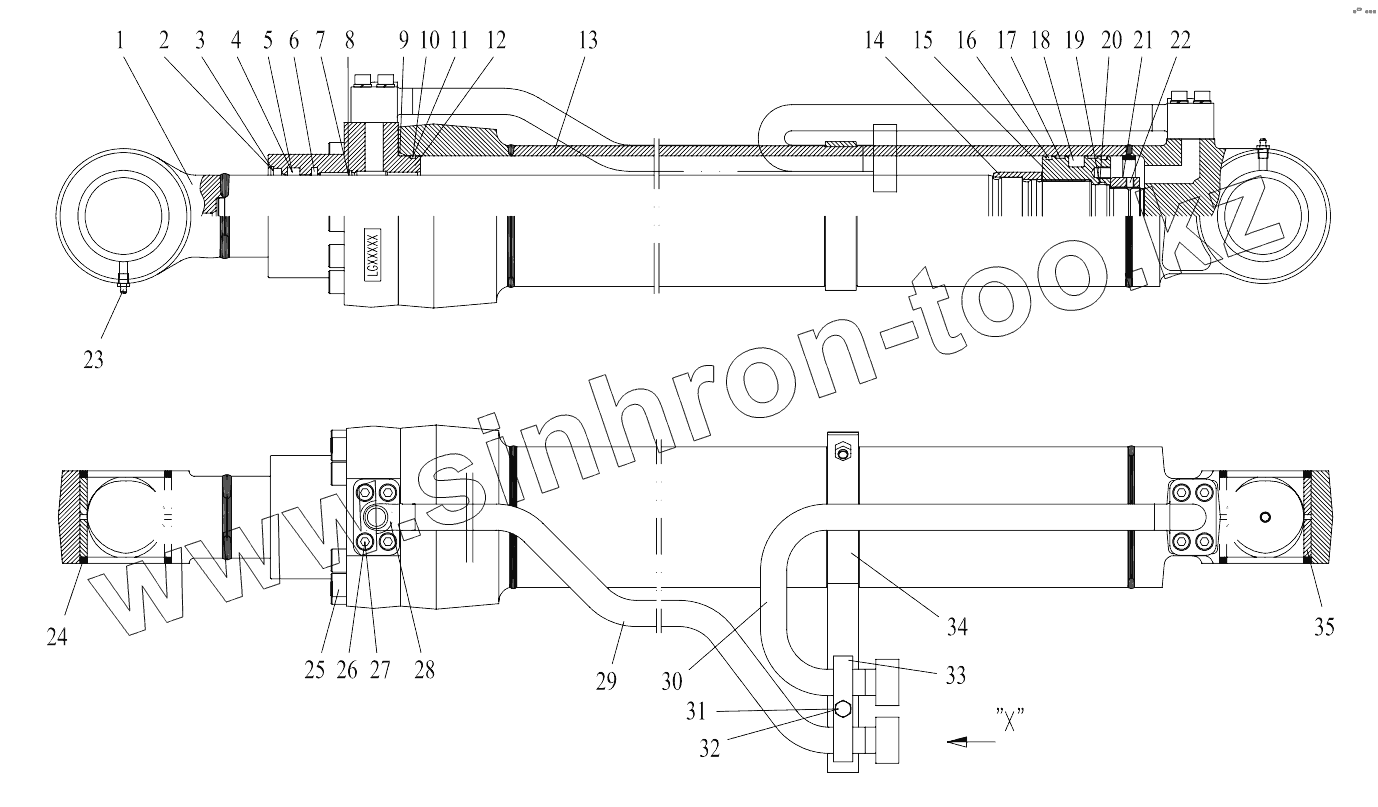

Каталог запасных частей к технике: Lonking (LongGong) CDM-6240. BOOM CYLINDER L.H.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 36606040060 | PISTON ROD | |
| 2 | 36606110030 | RETAINER | |
| 3 | 56193001401 | DUST SEAL | |
| 4 | 56192003701 | RETAINER 85x100x3 | |
| 5 | 56187002202 | SEAL RING 85x100x10 | |
| 6 | 56188001101 | CUSHION COLLAR 85x100.5x6.3 | |
| 7 | 52500001101 | STEEL-BACKED 85x90x30 | |
| 8 | 36606110040 | RETAINER | |
| 9 | 56908000705 | O-RING 124.4x3.1 | |
| 10 | 56192004601 | RETAINER 120x125x1.25 | |
| 11 | 56908000605 | O-RING 119.4x3.1 | |
| 12 | 36606030020 | GUIDE SLEEVE | |
| 13 | 36606010020 | CYLINDER BLOCK | |
| 14 | 36606060020 | CUSHION COLLAR | |
| 15 | 36606020020 | PISTON | |
| 16 | 56200000601 | POLLUTANT RING 125x117x6.2 | |
| 17 | 56199003701 | BACK-UP RING 120x125x9.7 | |
| 18 | 56190001201 | PISTON SEAL 125x102x16 | |
| 19 | 56192009001 | RETAINER 65x70x1.25 | |
| 20 | 56908003405 | O-RING 64.4x3.1 | |
| 21 | 36606050030 | NUT | |
| 22 | 51107211307 | SCREW M8x14 | |
| 23 | 56201000501 | Oil cup | |
| 24 | 56186000801 | DUST SEAL 80x95x6.5 | |
| 25 | 51139251107 | SCREW M16x80 | |
| 26 | 51139220907 | SCREW M10x55 | |
| 27 | 51401100107 | Spring lock washer | |
| 28 | 56908002905 | O-RING 27.7x3.5 | |
| 29 | 36606150050 | PIPE ASS'Y | |
| 30 | 36606150040 | PIPE ASS'Y | |
| 31 | 51203111918 | BOLT M12x65 | |
| 32 | 51401110107 | Spring lock washer | |
| 33 | 36606250060 | CLAMP | |
| 34 | 36606250050 | CLAMP | |
| 35 | 36606090020 | BUSHING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
