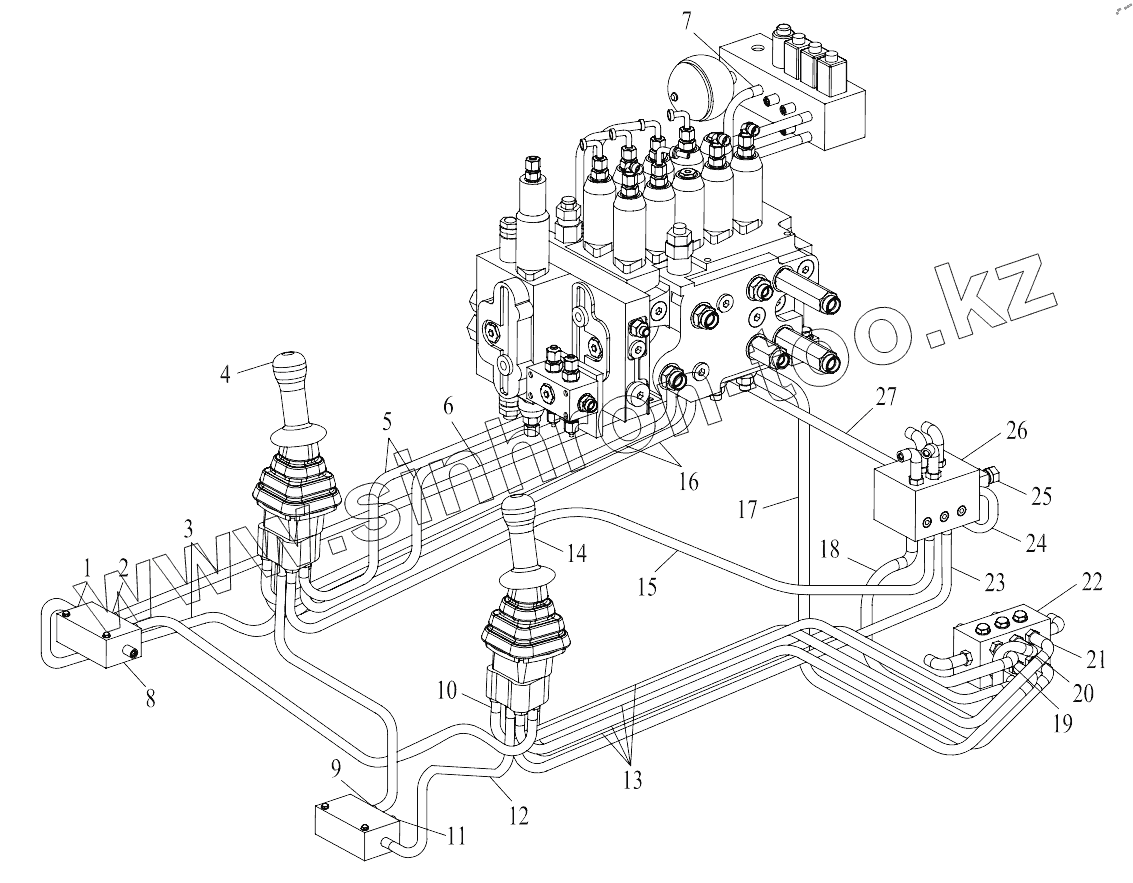

Каталог запасных частей к технике: Lonking (LongGong) CDM-6150. PILOT LINES III
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60911010023 | END RIGHT-ANGLE ADJUSTABLE CONNECTOR | |
| 2 | 60911010082 | STRAIGHT CONNECTOR | |
| 3 | 17272000717 | HOSE ASS'Y | |
| 4 | 60304000117 | PILOT VALVE L. H. | |
| 5 | 17272000779 | HOSE ASS'Y | |
| 6 | 17272000630 | HOSE ASS'Y | |
| 7 | 60911010005 | STRAIGHT CONNECTOR | |
| 8 | 30605100221 | PT BLOCK | |
| 9 | 60911010017 | END STRAIGHT CONNECTOR | |
| 10 | 60911010034 | END STRAIGHT CONNECTOR | |
| 11 | 60911010018 | END STRAIGHT CONNECTOR | |
| 12 | 17272000684 | HOSE ASS'Y | |
| 13 | 17272003374 | HOSE ASS'Y | |
| 14 | 60304000118 | PILOT VALVE R.H. | |
| 15 | 17272000620 | HOSE ASS'Y | |
| 16 | 17272000348 | HOSE ASS'Y | |
| 17 | 17272000641 | HOSE ASS'Y | |
| 18 | 17272000655 | HOSE ASS'Y | |
| 19 | 60911010003 | STRAIGHT CONNECTOR | |
| 20 | 60911010002 | STRAIGHT CONNECTOR | |
| 21 | 60911010377 | STRAIGHT CONNECTOR | |
| 22 | 60304000113 | SHUTTLE VALVE BLOCK | |
| 23 | 17272000622 | HOSE ASS'Y | |
| 24 | 17272003375 | HOSE ASS'Y | |
| 25 | 60911010037 | THREE-WAY CONNECTOR | |
| 26 | 60304000120 | STRAIGHT TRAVER VALVE | |
| 27 | 17272000639 | HOSE ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
