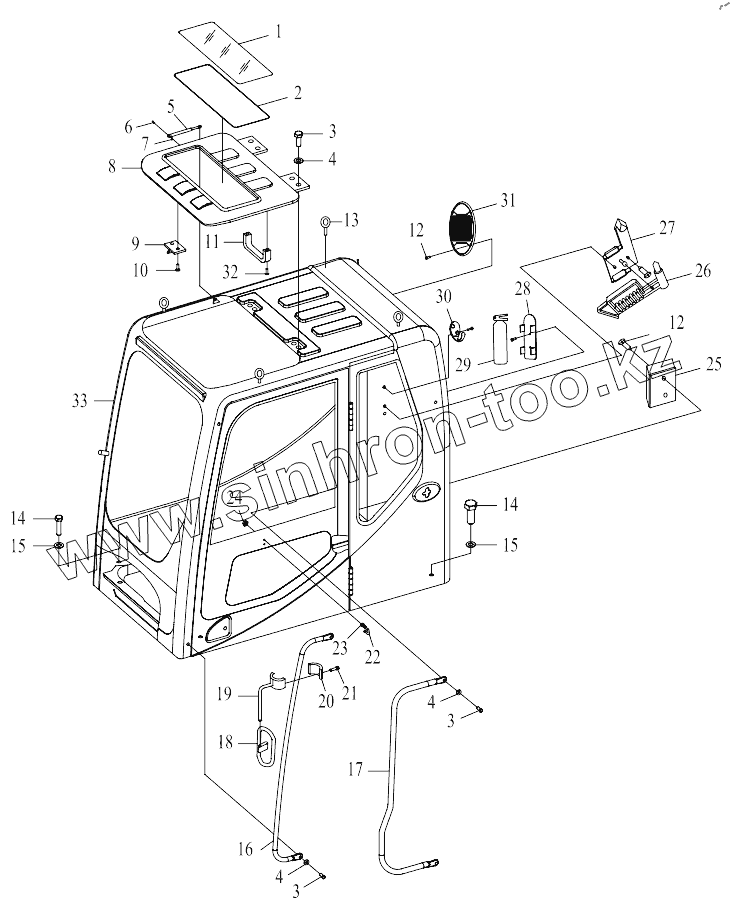

Каталог запасных частей к технике: Lonking (LongGong) CDM-6065. OPERATOR'S CAB I
1
2
3
3
3
4
4
4
5
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60980003183 | GLASS, TOP WINDOW | |
| 2 | 60980004022 | SEAL, TOP WINDOW | |
| 3 | 51204101022 | BOLT M10x20 | |
| 4 | 51421100121 | WASHER 10 | |
| 5 | 60980003055 | GAS SPRING | |
| 6 | 60980004023 | PIN | |
| 7 | 51512060701 | COTTER PIN 2x14 | |
| 8 | 60980004024 | FRAME, TOP WINDOW | |
| 9 | 60980003161 | LOCK, TOP WINDOW | |
| 10 | 51204090922 | BOLT M8x16 | |
| 11 | 60980003628 | CATCH, TOP WINDOW | |
| 12 | 51158110610 | SCREW M3x12 | |
| 13 | 60980004026 | LIFTING RING | |
| 14 | 51204133322 | BOLT M16x50 | |
| 15 | 51421130121 | WASHER 16 | |
| 16 | 60980004027 | OUTER HANDRAIL | |
| 17 | 60980004028 | INNER HANDRAIL | |
| 18 | 60980003187 | BACK MIRROR | |
| 19 | 60980004030 | FRONT FRAME | |
| 20 | 60980004031 | REAR FRAME | |
| 21 | 51139210408 | SCREW M8x20 | |
| 22 | 60980004032 | LOCK CATCH | |
| 23 | 60980004033 | RUBBER PAD | |
| 24 | 51307000922 | NUT M8 | |
| 25 | 60980003202 | CUP HOLDER | |
| 26 | 60980004035 | ESCAPE HAMMER | |
| 27 | 60980004036 | ESCAPE HAMMER HOLDER | |
| 28 | 60980004037 | FIRE EXTINGUISHER HOLDER | |
| 29 | 60980004038 | FIRE EXTINGUISHER | |
| 30 | 60980004039 | HAT & COAT HOOK | |
| 31 | 60980004040 | HORN COVER | |
| 32 | 51139210408 | SCREW M8x20 | |
| 33 | 60980004041 | BODY, CABIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
