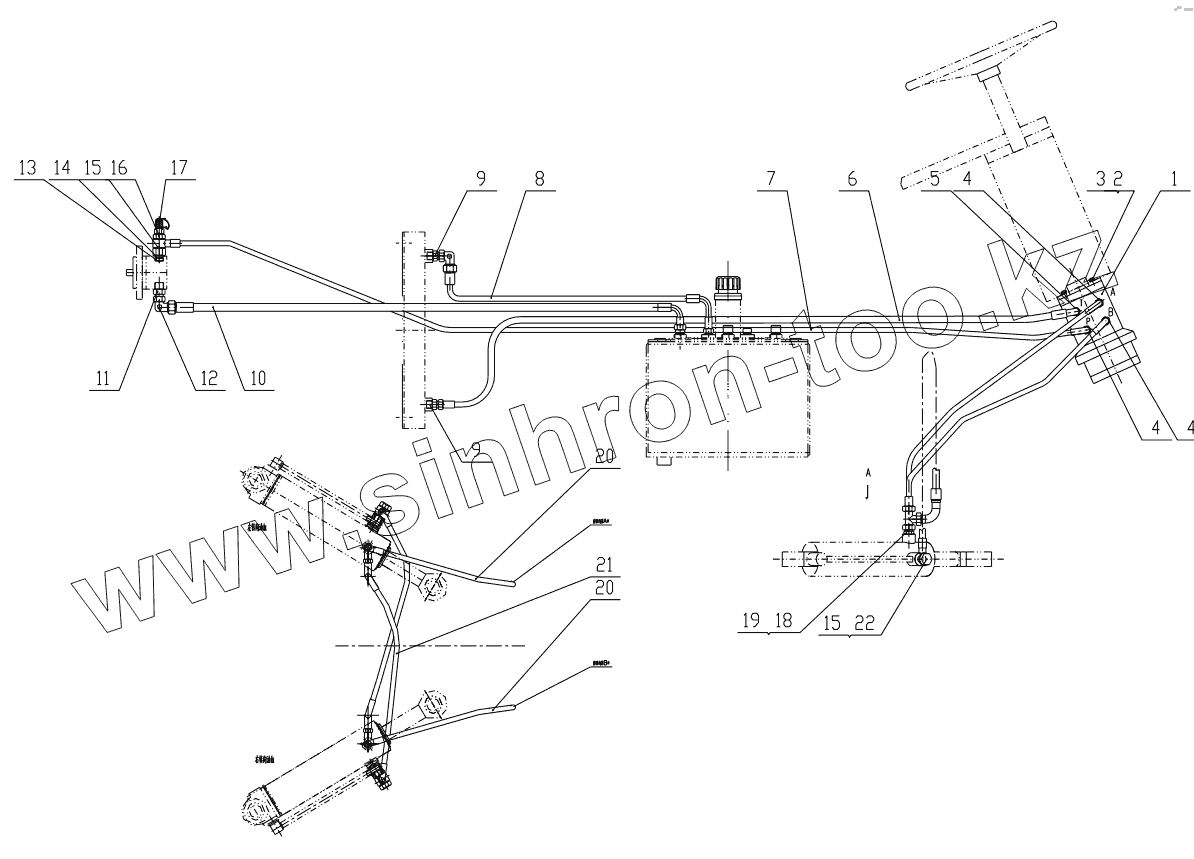

Каталог запасных частей к технике: Lonking (LongGong) CDM-514D. Hydraulic steering system
1
2
3
4
4
4
5
6
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
20
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | BZZ1-E315C | Hydraulic steering gear | |
| 2 | GB/T5783 | Bolt | |
| 3 | GB/T93 | Washer | |
| 4 | 1CH-22-20 | Connector | |
| 5 | 1CH-26-20 | Connector | |
| 6 | 20411-26Tx1W10x1200+RC | Hose from steering port T to oil cooler | |
| 7 | 20411-22T/70011-22x2W08x2450+RC | Hose assembly | |
| 8 | 20411-26/20491-26x1W12x600+RC | Hose from oil cooler to oil tank | |
| 9 | 1CH-26-27(M27x1.5) | Connector | |
| 10 | 20491-30/20411-30x1W12x1800+RC | Hose from steering to oil tank | |
| 11 | 1CH-30-33 | Connector | |
| 12 | 2C9-30 | Connector | |
| 13 | LG520D.10-001 | Connector | |
| 14 | JB/T982-1977 | Washer | |
| 15 | JB/T982-1977 | Washer | |
| 16 | LG520D.10-002 | Hollow bolt | |
| 17 | SMK20- M14x1.5/103591505 | Pressure connector | |
| 18 | 1CH-22 | Connector | |
| 19 | CC-22 | T-connector | |
| 20 | 20411-22x2W08x1450+RC | Hose assembly | |
| 21 | 20491-22T/70011-22x2W08x1300+RC | Interconnection hose of left and right cylinders | |
| 22 | JB/T999 | Pipe connection link bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
