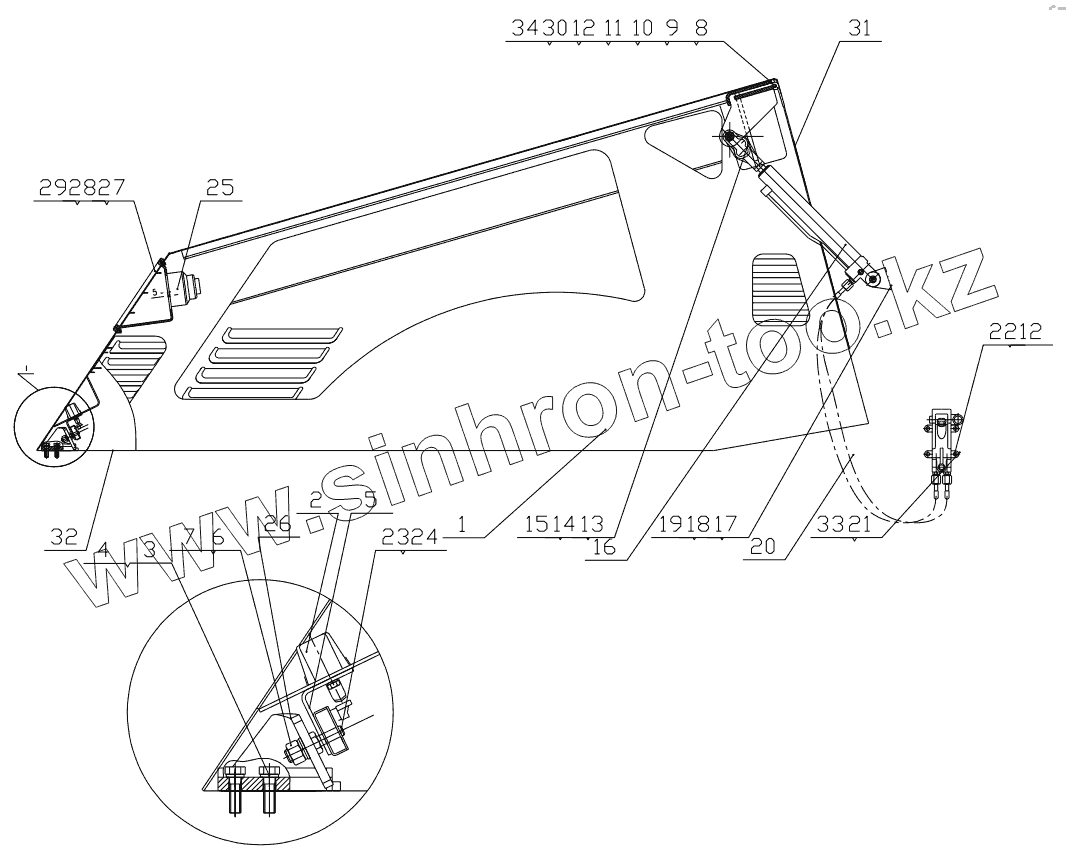

Каталог запасных частей к технике: Lonking (LongGong) CDM-514D. Hood assembly
CDM512D.17.01
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| CDM512D.17.01 | CDM512D.17.01 | Hood assembly | |
| 1 | LG512D.17.01 | Hood assembly | |
| 2 | LG521JNBS501-1 | Door lock | |
| 3 | GB/T5783 | Bolt | |
| 4 | DIN6796 | Washer 12 | |
| 5 | LG520D.17-001 | Lock board | |
| 6 | GB/T97.1 | Washer | |
| 7 | GB/T6170 | Nut | |
| 8 | LG520D.17.03 | Gemel assembly | |
| 9 | GB/T5783 | Bolt | |
| 10 | GB/T97.1 | Washer | |
| 11 | GB/T6170 | Nut | |
| 12 | GB/T93 | Washer | |
| 13 | GB/T882B | Pin 25x90 | |
| 14 | GB/T91 | Cotter pin | |
| 15 | GB/T97.1 | Washer | |
| 16 | YF03B.JZS | Hydraulic cylinder | |
| 17 | GB/T882B | Pin 20x80 | |
| 18 | GB/T91 | Cotter pin | |
| 19 | GB/T97.1 | Washer | |
| 20 | YF01S.JZS-RG | Hose | |
| 21 | YF01S.JZSD | Hood turn pump | |
| 22 | GB/T5783 | Bolt | |
| 23 | GB/T5783 | Bolt | |
| 24 | GB/T93 | Washer | |
| 25 | XP261 | Combination lamp | |
| 26 | LG520D.17.02 | Hood lock assembly | |
| 27 | LG520D.17-002 | Rear light seat | |
| 28 | GB/T93 | Washer | |
| 29 | GB/T6170 | Nut | |
| 30 | LG520D.17-003 | Adjusting shim | |
| 31 | H009 | Door rubber strip | |
| 32 | F002 | Door belt | |
| 33 | YF01S.JZS-SG | Hand rocker | |
| 34 | GB/T96.1 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
