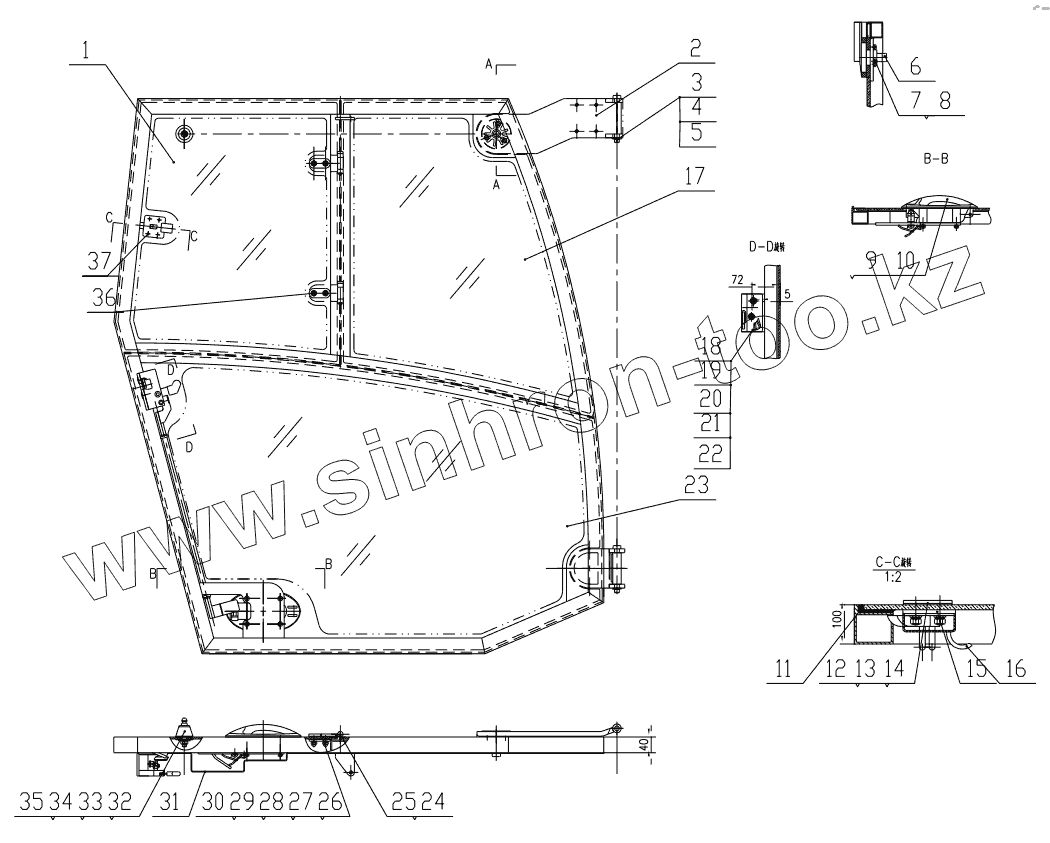

Каталог запасных частей к технике: Lonking (LongGong) CDM-514D. Cab door assembly
1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG520A6.21.09.01 | Left door frame weldment | |
| 1 | LG520A6.21.03-013 | Activity glass | |
| 2 | LG520A6.21.03.01 | Right door frame weldment | |
| 3 | LG520A6.21.03-002 | Door hinge pin | |
| 4 | GB/T97.1 | Washer | |
| 5 | GB/T894.1 | Sprag | |
| 6 | LG520A6.21.03.02 | Glass door lock seat | |
| 7 | GB/T818 | Screw | |
| 8 | GB/T93 | Washer | |
| 9 | GB/T97.1 | Washer | |
| 10 | LG520A6.21.03.03 | Right door lock handle | |
| 10 | LG520A6.21.09.02 | Left door lock handle | |
| 11 | LG520A6.21.03-003 | Window block glue | |
| 12 | LG520A6.21.03.04-001 | Plate | |
| 13 | LG520A6.21.03-004 | Thin rubber plate | |
| 14 | GB/T6170 | Nut | |
| 15 | LG520A6.21.03-005 | Thick rubber plate | |
| 16 | LG520A6.21.03.05 | Window lock | |
| 17 | LG520A6.21.03-014 | Front window glass | |
| 18 | LG520A6.21.03.06 | Right door lock | |
| 18 | LG520A6.21.09.03 | Left door lock | |
| 19 | GB/T819 .1 | Screw M8x40 | |
| 20 | GB/T97.1 | Washer | |
| 21 | GB/T93 | Washer | |
| 22 | GB/T6170 | Nut | |
| 23 | LG520A6.21.03-015 | Lower window glass (green) | |
| 24 | LG520A6.21.03-008 | Window hinge pin | |
| 25 | GB/T894.1 | Sprag | |
| 26 | LG520A6.21.03.07 | Window hinge weldment | |
| 27 | LG520A6.21.03-009 | Outer rubber blanket | |
| 28 | LG520A6.21.03-010 | Inner rubber blanket | |
| 29 | LG520A6.21.03-011 | Dam-board | |
| 30 | GB/T923 | Cap nuts | |
| 31 | LG520A6.21.09.04 | Interior trim parts | |
| 32 | LG520A6.21.03.09 | Glass door lock | |
| 33 | LG520A6.21.03-012 | Rubber blanket | |
| 34 | GB/T96.1 | Washer | |
| 35 | GB/T6170 | Nut | |
| 36 | GB/T819 | PLUG SCREW | |
| 37 | GB/T819 | PLUG SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
