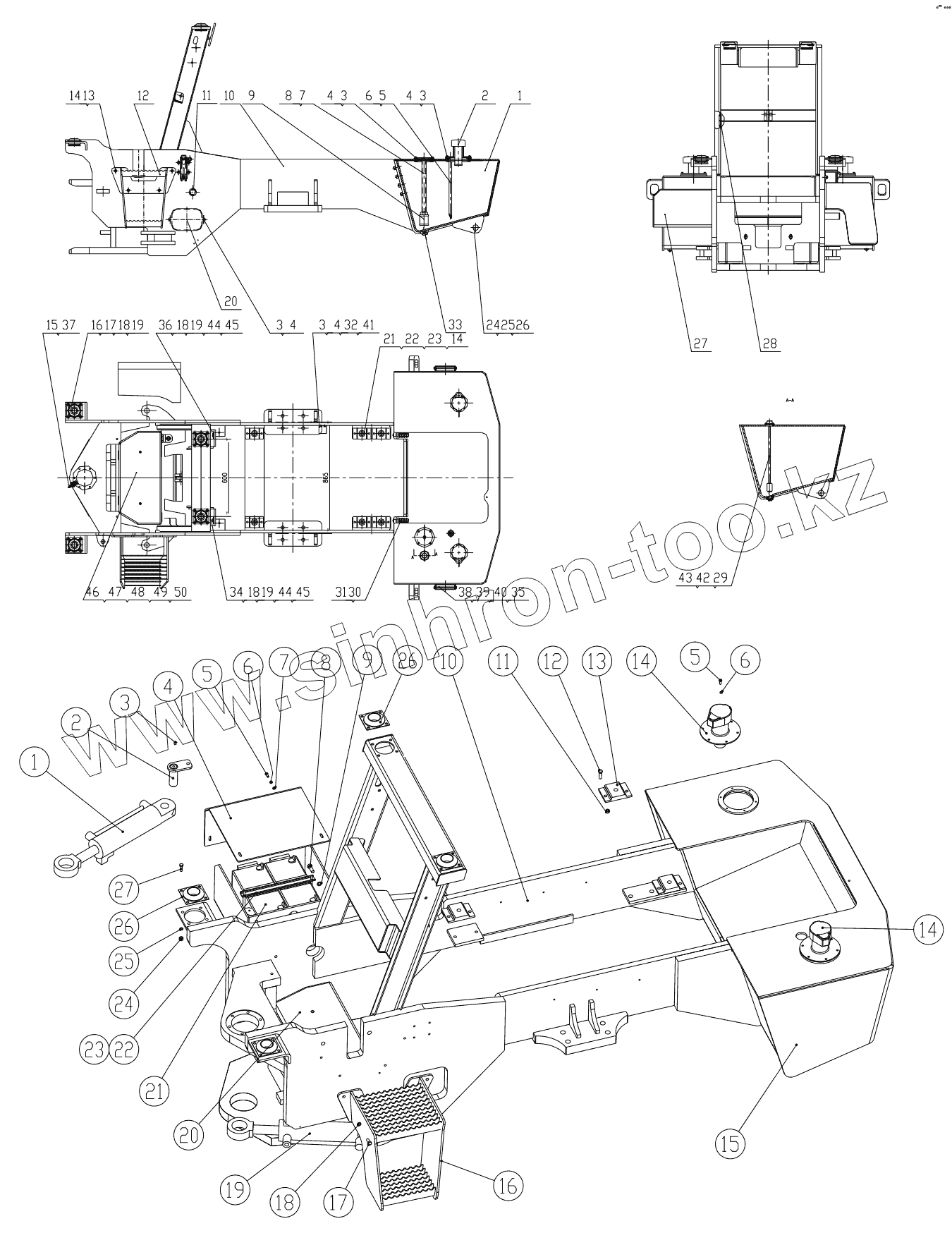

Каталог запасных частей к технике: Lonking (LongGong) CDM-512D. Rear frame assembly
1
1
1
1
2
2
3
3
3
3
3
4
4
4
4
4
5
5
5
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
45
46
47
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG514D.06.02 | Fuel tank weldment | |
| 1 | LG512D.06.02 | Fuel tank weldment | |
| 2 | TK16-11 | Air filter | |
| 3 | GB/T5783 | Bolt | |
| 4 | GB/T93 | Washer | |
| 5 | LG520D.06.05 | Oil return pipe weldment | |
| 6 | JB/T982-1977 | Washer | |
| 7 | LG520D.06.04 | Suction cover weldment | |
| 8 | GB/T3452.1 | O-ring | |
| 9 | WU-63X80-J | Suction filter | |
| 10 | LG512D.06.01 | Rear frame weldment | |
| 11 | LG520D.06-005 | Sleeve | |
| 12 | LG512D.06.03 | Pedal weldment | |
| 13 | GB/T5783 | Bolt | |
| 14 | GB/T93 | Washer | |
| 15 | JB/T7940.1 | Straight pressure oil cup | |
| 16 | 6170111 | Shock absorber | |
| 17 | GB/T5783 | Bolt | |
| 18 | GB/T93 | Washer | |
| 19 | GB/T6170 | Nut | |
| 20 | LG520D.06-006 | Dam-board | |
| 21 | EA120E-120 | Absorber | |
| 22 | GB/T5783 | Bolt | |
| 23 | GB/T6170 | Nut | |
| 24 | GB/T882 | Pin | |
| 25 | GB/T97.1 | Washer | |
| 26 | GB/T91 | Cotter pin | |
| 27 | LG520D.06.03 | Battery box assembly | |
| 28 | LG520D.06-007 | Sleeve | |
| 29 | LG520D.06-004 | Oil level sensor | |
| 30 | GB/T5783 | Bolt | |
| 31 | DIN6796 | Washer 12 | |
| 32 | LG512D.06-001 | Hot water valve support | |
| 33 | LG520A.31.04.02 | Greasy blockage assembly | |
| 34 | LG510B.06.02 | Left connecting base weldment | |
| 35 | GB/T97.1 | Washer | |
| 36 | LG510B.06.03 | Right connecting weldment | |
| 37 | CDM512D.06-001 | Grease fitting seat | |
| 38 | LG856.13.07.09-001 | Pedal plate | |
| 39 | LG856.13.07.09-003 | Pedal plate pin | |
| 40 | GB/T91 | Cotter pin | |
| 41 | GB/T6170 | Nut | |
| 42 | GB/T818 | Screw | |
| 43 | GB/T93 | Washer | |
| 44 | GB/T5783 | Bolt | |
| 45 | GB/T96.1 | Washer | |
| 46 | LG520D.06-001 | Front balance block | |
| 47 | LG520D.06-002 | Fixed plate | |
| 48 | GB/T5782 | Bolt | |
| 49 | DIN6796 | Washer 12 | |
| 50 | GB/T5783 | Bolt | |
| 51 | GB/T5782 | Bolt | |
| 52 | LG520D.07-006 | Spacer pipe | |
| 53 | LG520D.07-007 | Vent pipe | |
| 54 | JB/T8870 | Pipe clamp | |
| 55 | LG520D.07-008 | Vent pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
