Каталог запасных частей к технике: Lonking (LongGong) CDM-512D. Hydraulic drive system
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
18
19
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
39
40
41
42
43
44
45

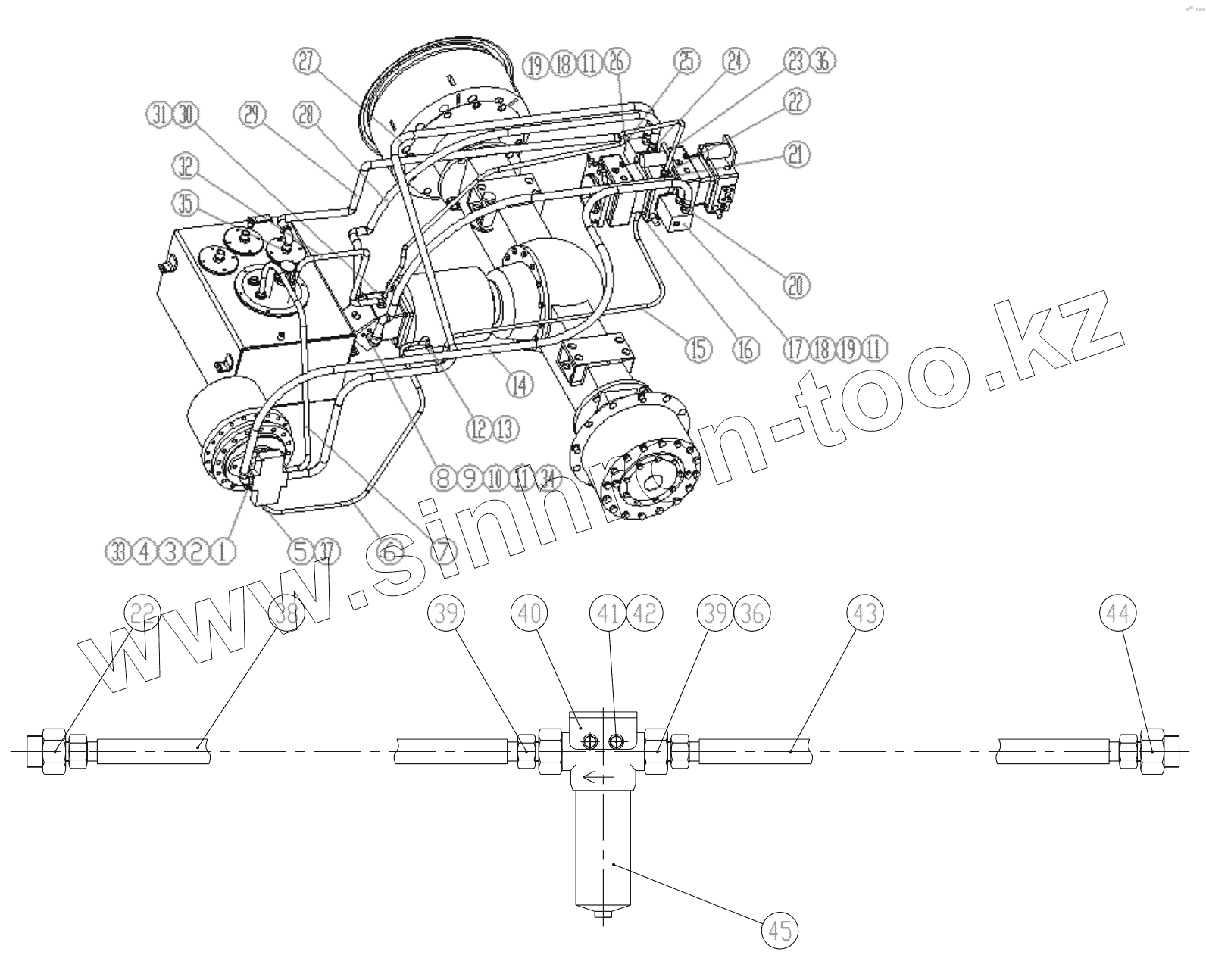

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1DFS-36-12W | SAE flange | |
| 2 | GB3452.1 | O-ring | |
| 3 | GB/T5783 | Bolt | |
| 4 | GB/T93 | Washer | |
| 5 | 1CH-16-12L42 | Connector | |
| 6 | 20491-16/20411-16x1W05x4600+RC | Brake hose from front motor reducer to rear axle | |
| 7 | 20411-22/20491-26x1W08x3150+RC | Hose from front motor port T to oil tank | |
| 8 | 1DFS-36-16W | SAE flange | |
| 9 | GB3452.1 | O-ring | |
| 10 | GB/T5783 | Bolt | |
| 11 | GB/T93 | Washer | |
| 12 | 1CH-16-18 | Connector | |
| 13 | CC-16 | T-connector | |
| 14 | 20592-30/20512-36x4SH12x5500+RC | Hose from travel pump port A to front motor port A | |
| 15 | 20411-16/20491-16x1W05x1700+RC | Hose from travel pump brake valve to rear axle brake T-connector | |
| 16 | 1CH-16-14 | Connector | |
| 17 | CD-36 | Connector | |
| 18 | GB3452.1 | O-ring | |
| 19 | LG520D.12-004 | Bolt | |
| 20 | 1DH-30 | Connector | |
| 21 | 20592-36/20512-36x4SH12x1950+RC | Hose from travel pump port B to dirve motor port A | |
| 22 | 1CH-26 | Connector | |
| 23 | 20491-26/20411-26x1W12x2200+RC | Hose from travel port T to drive motor port T | |
| 24 | 1DH-36-30 | Connector | |
| 25 | 1CH-30-42 | Connector | |
| 26 | 1DFS-36-16W | SAE flange | |
| 27 | 20592-36/20512-36x4SH12x6000+RC | Hose from travel pump port B to front motor port B | |
| 28 | 20592-36/20512-36x4SH12x1950+RC | Hose from travel pump port A to drive motor port B | |
| 29 | 20491-30/20411-30x1W12x2700+RC | Hose from travel port S to oil tank | |
| 30 | 1CH-26-18 | Connector | |
| 31 | CC-26 | T-connector | |
| 32 | 20411-26/20491-26x1W12x1400+RC | Hose assembly | |
| 33 | 2D9-36 | Connector | |
| 34 | 2D9-36 | Connector | |
| 35 | 2C9-30 | Connector | |
| 36 | 2C9-26 | Connector | |
| 37 | 2C9-16 | Connector | |
| 38 | 20411-26/20491-26x2W12x650+RC | Hose from filter outlet port to travel pump port Fa | |
| 39 | 1CH-26-42 | Connector | |
| 40 | LG512D.07-011 | Link plate | |
| 41 | GB/T5783 | Bolt | |
| 42 | GB/T97.1 | Washer | |
| 43 | 20411-26x2W12x400+RC | Hose from travel port Fe to filter inlet port | |
| 44 | 1CH-26-22 | Connector | |
| 45 | PLF-C110X10P | Hydraulic oil filter |
