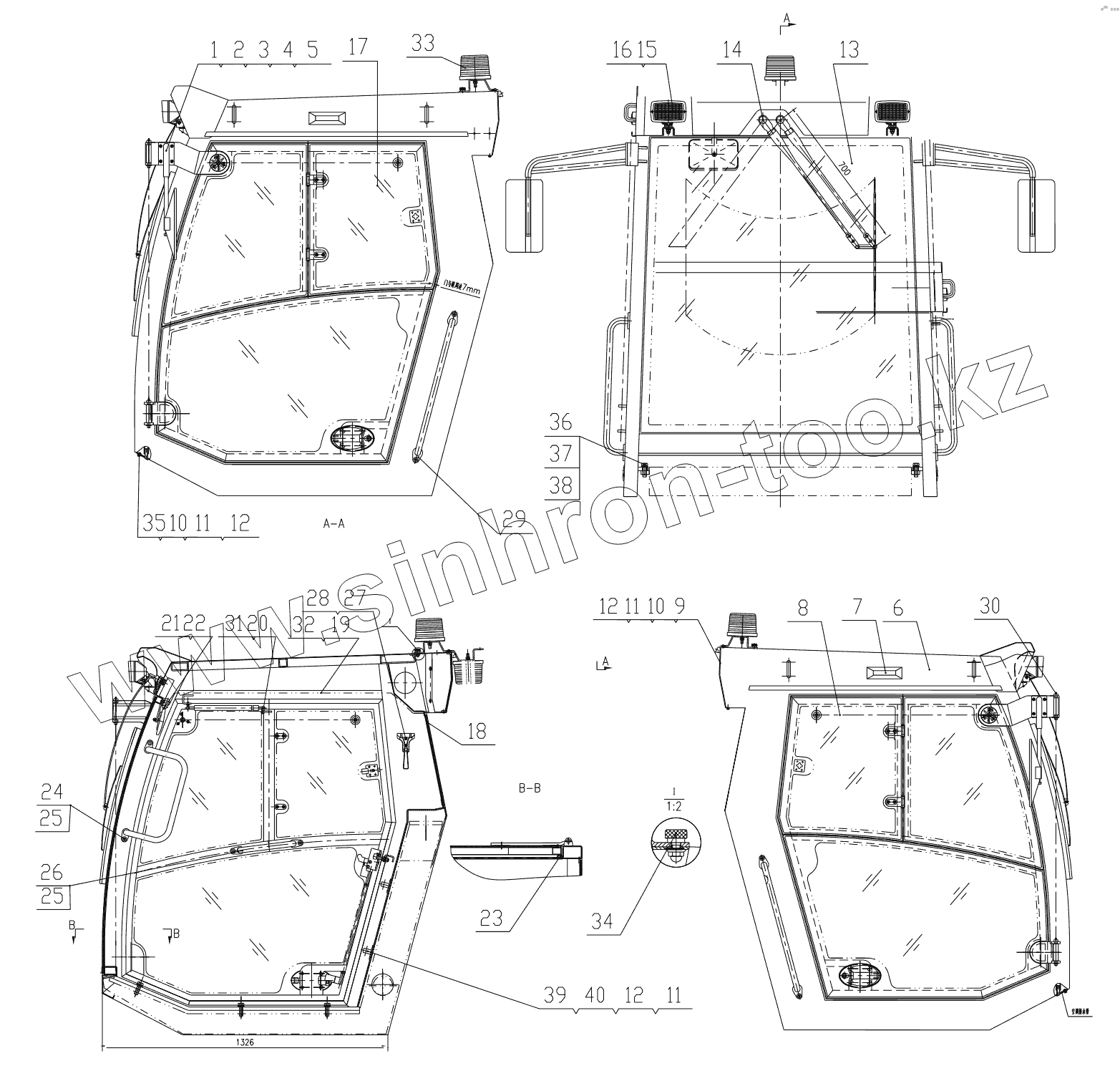

Каталог запасных частей к технике: Lonking (LongGong) CDM-512D. Cab assembly
1
2
3
4
5
6
7
8
9
10
10
11
11
11
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG520A6.21.19 | Rearview support weldment | |
| 2 | GB/T5783 | Bolt | |
| 3 | GB/T93 | Washer | |
| 4 | GB/T97.1 | Washer | |
| 5 | ZQP-142 | Back up mirror | |
| 6 | LG512D.21.01 | Cab frame weldment | |
| 7 | LG512DDA.24.12 | Steering lights | |
| 8 | LG520A6.21.03 | Right door assembly | |
| 9 | LG520A61.21.03 | Netting protector weldment | |
| 10 | GB/T818 | Screw | |
| 11 | GB/T93 | Washer | |
| 12 | GB/T97.1 | Washer | |
| 13 | LG520A6.21-009 | Front window glass | |
| 14 | LG520A6.21.05 | Wiper | |
| 15 | LG520A6.21.06 | Headlight | |
| 16 | LG30F.12-017 | Harness sheath | |
| 17 | LG520A6.21.09 | Left door assembly | |
| 18 | LG520A6.21-010 | Rear window glass | |
| 19 | LG523A3.21.12 | Ceiling trim | |
| 20 | LG520A6.21.13 | Air spring | |
| 21 | LG520A61.21-001 | Rearview support | |
| 22 | LG520A61.21.02 | Indoor mirror | |
| 23 | LG520A6.21-007 | Block glue | |
| 24 | LG520A6.21.20 | Safety handle weldment | |
| 25 | GB/T819.1 | Screw M8x20 | |
| 26 | LG520A6.21.18 | Door handle weldment | |
| 27 | LG520A6.21.17 | Safety hammer | |
| 28 | GB/T845 | Taper screw | |
| 29 | LG520A6.21.22 | Rear handle of left door | |
| 30 | JB/T7940.1 | Straight pressure oil cup | |
| 31 | GB/T96.1 | Washer | |
| 32 | LG520A61.21-003 | Rivet for interior | |
| 33 | LG520A6.21.08 | Warning lamp | |
| 34 | LG520A6.21-008 | Bolt for warning light | |
| 35 | LG520A61.21.04 | Drain connector weldment | |
| 36 | GB/T5783 | Bolt | |
| 37 | GB/T93 | Washer | |
| 38 | GB/T97.1 | Washer | |
| 39 | LG520D.15-011 | Rubber clamp | |
| 40 | GB/T5783 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
