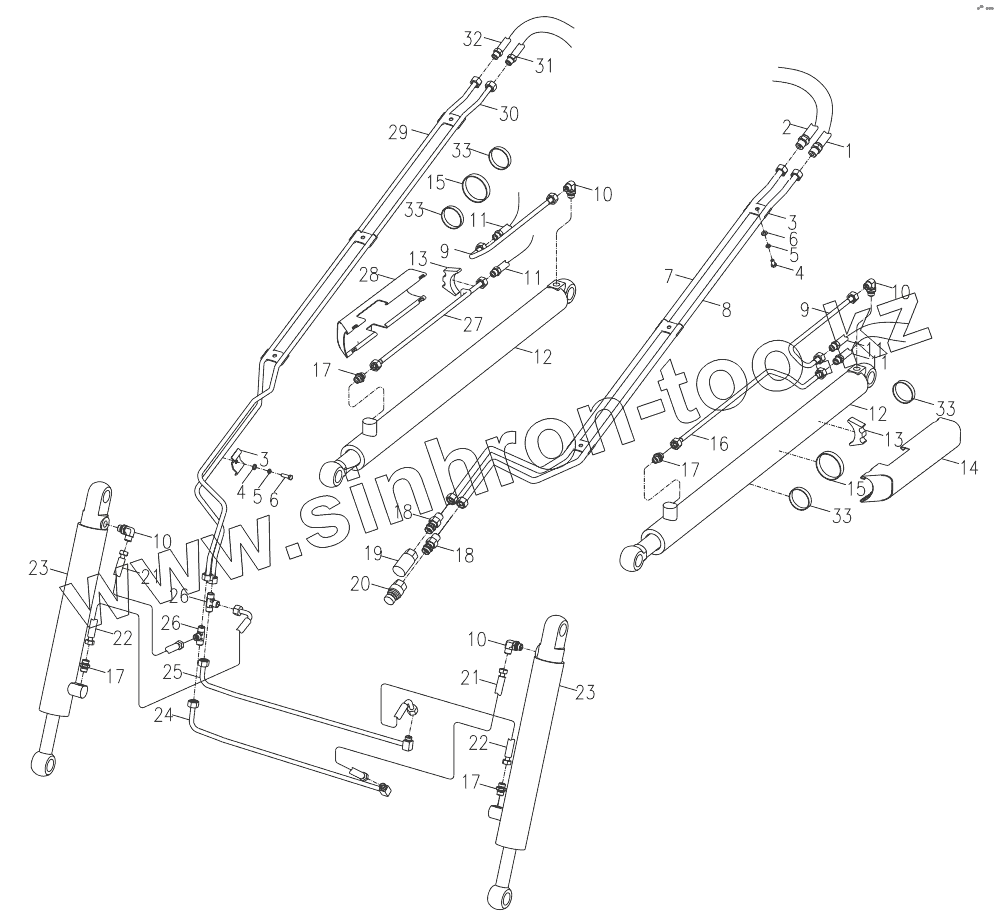

Каталог запасных частей к технике: Lonking (LongGong) CDM-312. Implement Hydraulic System
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
12
13
13
14
15
15
16
17
17
17
17
18
18
19
20
21
21
22
22
23
23
23
23
23
23
24
25
26
26
27
28
29
29
30
30
31
32
33
33
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10411-22/20491-22TH62x2T08x650+RC | Attachment connecting A hose | |
| 2 | 10411-22/20491-22Tx2T08x650+RC | Attachment connecting B hose | |
| 3 | LG825.07-003 | Oil return tank hose | |
| 4 | GB/T5783 | Bolt | |
| 5 | GB/T93 | Washer | |
| 6 | GB/T97.1 | Washer | |
| 7 | LG307.07.17 | Tool connect lift pipe B | |
| 7 | LG308.07.17 | Tool connect lift pipe B | |
| 8 | LG307.07.18 | Tool connect lift pipe A | |
| 8 | LG308.07.18 | Tool connect lift pipe A | |
| 9 | LG308.07.08 | Right lift cylinder big chamber pipe | |
| 9 | LG307.07.08 | Right lift cylinder big chamber pipe | |
| 10 | L1CH9-18OG | Bucket cylinder big chamber bend | |
| 11 | 10411-18x2T06x570+RC | Lift cylinder hose | |
| 12 | LG307.07.06 | Lift cylinder | |
| 12 | LG308.07.06 | Lift cylinder | |
| 13 | LG8380.07-002 | Rubber pad | |
| 14 | LG308.07-001 | Vitta guard | |
| 15 | JB/T8870-1999 | Hose clamp | |
| 16 | LG308.07.15 | Left lift cylinder small chamber pipe | |
| 17 | L1CH-18 | Bucket cylinder small chamber straight | |
| 18 | LG308.07.37 | Connector | |
| 19 | FIRG-F-G1/2-A | Quick disconnect connector | |
| 20 | FIRG-M-G1/2-A | Quick disconnect connector | |
| 21 | 20411-18Tx2T06x340+RC | Bucket cylinder big chamber hose | |
| 22 | 20411-18T/20491-18Tx2T06x460+RC | Bucket cylinder small chamber hose | |
| 23 | LG307.07.01 | Tilt cylinder | |
| 23 | LG308.07.01 | Tilt cylinder | |
| 23 | LG312.07.01 | Tilt cylinder | |
| 24 | LG308.07.53 | Bucket cylinder big chamber pipe | |
| 25 | LG308.07.54 | Bucket cylinder small chamber pipe | |
| 26 | LAC-18 | Bucket disfluence duplex fitting | |
| 27 | LG308.07.07 | Right lift cylinder small chamber pipe | |
| 28 | LG308.07-007 | Right pipe guard | |
| 29 | LG307.07.04 | Bucket cylinder small chamber pipe | |
| 29 | LG308.07.04 | ||
| 30 | LG307.07.05 | Bucket cylinder big chamber pipe | |
| 30 | LG308.07.05 | ||
| 31 | 10411-18/20491-18TH64x2T06x590+RC | Bucket cylinder chamber hose | |
| 32 | 10411-18/20491-18Tx2T06x590+RC | Bucket cylinder big chamber hose | |
| 33 | JB/T8870-1999 | Hose clamp |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
