Каталог запасных частей к технике: Lonking (LongGong) CDM-312. Implement Assembly
1
1
2
2
2
3
3
3
4
4
4
4
4
4
4
4
4
5
5
6
6
6
7
7
7
8
8
8
8
9
9
9
9
10
10
10
10
11
12
13
14
15
16
16
17
18
19
20
20
21
21
22
23
24
25
25
26
27
28
29
30
30
30
31
31
32
32
33
34
35
36
37

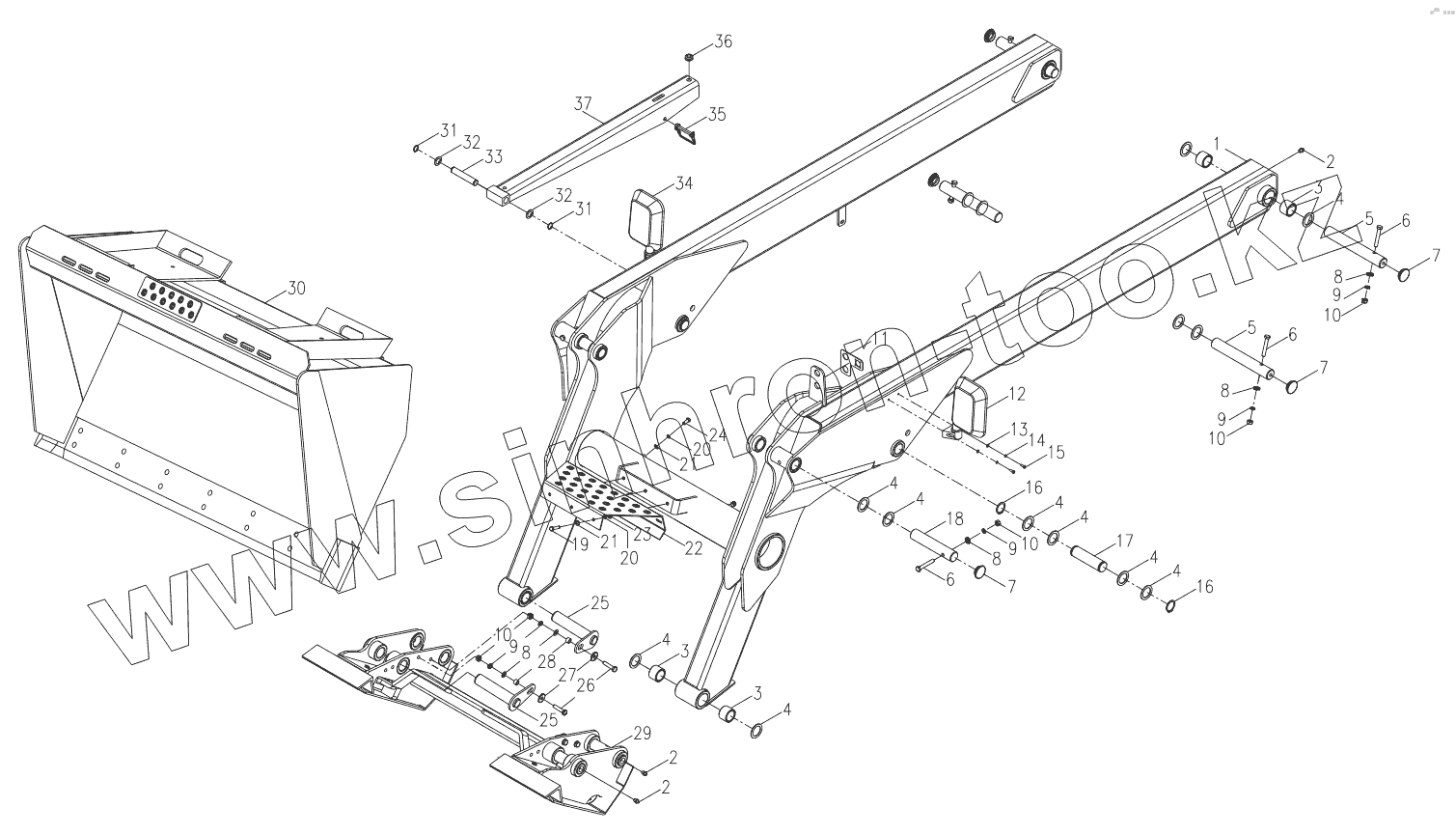

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG308.11.03 | Lift arm weldment | |
| 1 | LG307.11.03 | Lift arm weldment | |
| 2 | JB/T7940.1 | Straight pressure oil cup | |
| 3 | LG308.11-001 | Shaft bush | |
| 4 | LG308.11-009 | Washer | |
| 5 | LG308.11-002 | Articulated pin shaft of lift frame | |
| 6 | GB/T5782 | Bolt | |
| 7 | LG308.11-013 | Rubber cover | |
| 8 | GB/T97.1 | Washer | |
| 9 | GB/T93 | Washer | |
| 10 | GB/T6170 | Nut | |
| 11 | LG308.11-014 | Attachment harness connector fixing plate | |
| 12 | LG308.11-011 | Left rear mirror | |
| 13 | GB/T97.1 | Washer | |
| 14 | GB/T93 | Washer | |
| 15 | GB/T70 | Screw | |
| 16 | GB/T894.1 | Sprag | |
| 17 | LG308.11-003 | Articulated pin shaft of lift cylinder | |
| 18 | LG308.11-004 | Articulated pin shaft of bucket cylinder | |
| 19 | GB/T5783 | Bolt | |
| 20 | GB/T93 | Washer | |
| 21 | GB/T97.1 | Washer | |
| 22 | LG308.11-007 | Pedal | |
| 23 | GB/T6170 | Nut | |
| 24 | GB/T5783 | Bolt | |
| 25 | LG308.11.04 | Pin shaft of lift bucket adapter | |
| 26 | GB/T5783 | Bolt | |
| 27 | GB/T96.1 | Washer | |
| 28 | LG308.11-005 | Sheath | |
| 29 | LG308.11.02 | Bucket adapter assembly | |
| 30 | LG307.11.01 | Bucket | |
| 30 | LG312.11.01 | Bucket | |
| 30 | LG308.11.01 | Bucket | |
| 31 | GB/T894.1 | Sprag | |
| 32 | LG308.11-010 | Washer | |
| 33 | LG308.11-006 | Lift safe rod connecting pin shaft | |
| 34 | LG308.11-012 | Right rear mirror | |
| 35 | LG308.11.06 | Safe pin | |
| 36 | LG308.11-008 | Rubber pad | |
| 37 | LG308.11.05 | Safe rod |
