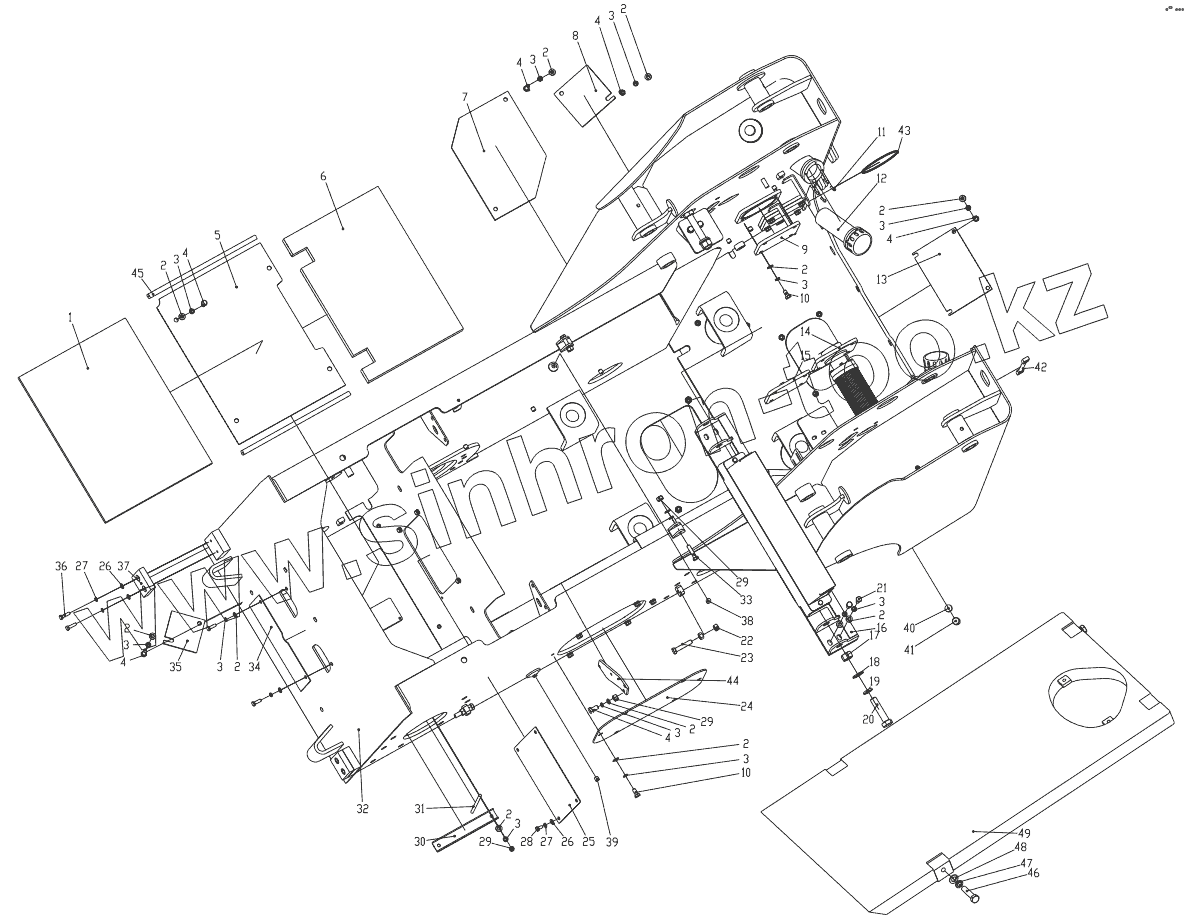

Каталог запасных частей к технике: Lonking (LongGong) CDM-308. Frame System (LG308/LG312)
1
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
5
6
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
29
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG308.10-014 | Floor gasket | |
| 2 | GB/T97.1 | Washer | |
| 3 | GB/T93 | Washer | |
| 4 | GB/T5783-2000 | Bolt | |
| 5 | LG308.10-015 | Sponge | |
| 6 | LG308.10-007 | Flange cover | |
| 7 | GB/T5783-2000 | Bolt | |
| 7 | GB/T70.1-1985 | Hexagon socket pillar head screw | |
| 8 | LG816.13.08.02 | AIR CLEANER | |
| 9 | LG308.10-017 | Rear cover | |
| 10 | LG308.10.04 | Filter assembly | |
| 11 | LG308.10.03 | Flange cover weldment | |
| 12 | LG308.10.06 | Middle hood assembly | |
| 13 | GB/T93-1987 | Washer | |
| 14 | GB/T96.1-2002 | Washer | |
| 15 | GB/T5782-2000 | Bolt | |
| 16 | GB/T6170-2000 | Nut | |
| 17 | GB/T5783-2000 | Bolt | |
| 18 | GB/T93 | Washer | |
| 19 | GB/T97.1 | Washer | |
| 20 | GB/T5782 | Bolt | |
| 21 | GB/T5782 | Bolt | |
| 22 | GB/T6170 | Nut | |
| 23 | GB/T5783 | Bolt | |
| 24 | LG308.10-005 | Chain Wheel box sealing board | |
| 25 | LG307.10-005 | Control plate sealing plate | |
| 26 | GB/T97.1 | Washer | |
| 27 | GB/T93 | Washer | |
| 28 | GB/T5783 | Bolt | |
| 29 | GB/T6170 | Nut | |
| 30 | LG308.10-012 | Lock board | |
| 31 | LG308.10-011 | Swash pull rod | |
| 32 | LG308.10.01 | Frame weldment | |
| 32 | LG312.10.01 | Frame weldment | |
| 33 | GB/T5783 | Bolt | |
| 34 | LG308.10-002 | Front block | |
| 35 | LG308.10-003 | Bottom cover | |
| 36 | GB/T5783-2000 | Bolt | |
| 37 | LG308.10-001 | Limit position block | |
| 38 | LG308.10.05 | Permeability cap | |
| 39 | L4MN-14WD | Connector | |
| 40 | LG308.10-013 | Magnet | |
| 41 | L4HN-24 | Inner hexagon stopper | |
| 42 | CDM856E.13.08.04 | Rectangle oil label | |
| 43 | GB/T3452.1-2005 | O-ring | |
| 44 | LG308.10-018 | Spilling valve bracket | |
| 45 | H009 | Door rubber strip | |
| 46 | GB/T5783-2000 | Bolt | |
| 47 | GB/T93-1987 | Washer | |
| 48 | GB/T97.1-2002 | Washer | |
| 49 | LG312.10.03 | Bottom balanced weight |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
