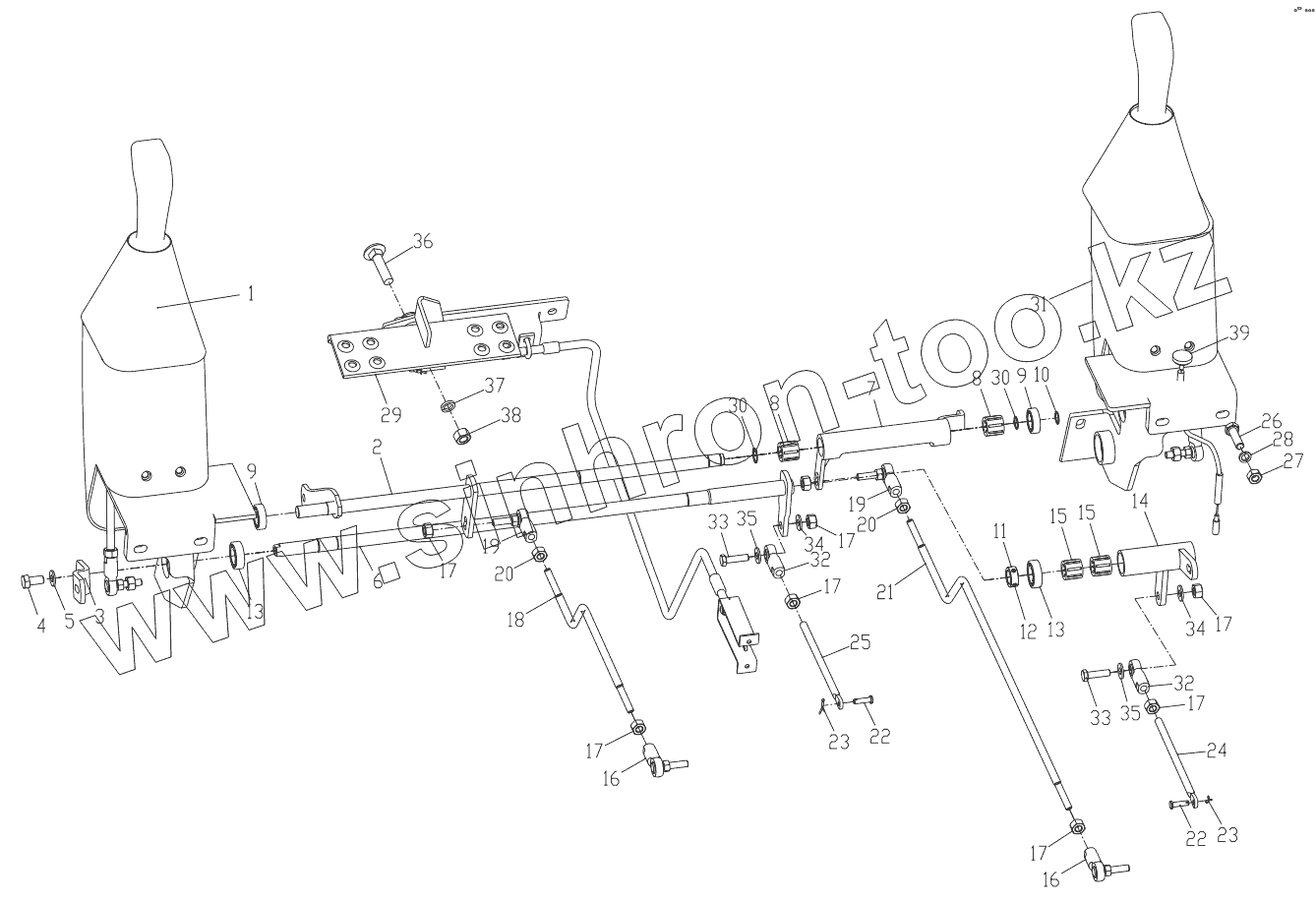

Каталог запасных частей к технике: Lonking (LongGong) CDM-307. Opeartion System

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
13
14
15
15
16
16
17
17
17
17
17
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
25
26
27
28
29
30
30
31
32
32
33
33
34
34
35
35
36
37
38
39
Позиция на иллюстрации Заводской номер детали Название детали
1 LG308.05.01 Left operation system
2 LG308.05.02 Series pump rotating rod weldment
3 LG308.05-001 Pull plate
4 GB/T5783-2000 Bolt
5 GB/T97.1-2002 Washer
6 LG308.05.03 Multiple valve rotating rod weldment
7 LG308.05-002 series pump rotating sheath
8 GB/T5801-2000 Bearing
9 GB/T276-94 Bearing
10 GB/T894.1-86 SPRAG
11 LG308.05-003 Sprag
12 GB/T80-2000 Screw
13 GB/T276-94 Bearing
14 LG308.05-004 Multiple valve rotating sheath
15 GB/T5801-2000 Bearing
16 LG308.05.06 End joint bearing
17 GB/T889.1-2000 Nut
18 LG307.05-001 Left pull rod
18 LG308.05-005 Left pull rod
19 LG308.05.07 Joint bearing levorotation
20 GB/T6170-2000 Nut
21 LG308.05-006 Right pull rod
21 LG307.05-002 Right pull rod
22 LG308.05-009 Pin shaft
23 GB/T91-2000 Cotter pin
24 LG308.05-007 Conneting rod
25 LG308.05-008 Conneting rod
26 GB/T5783-2000 Bolt
27 GB/T6170-2000 Nut
28 GB/T93-1987 Washer
29 LG308.05.05 Foot operating assembly
30 GB/T894.1-86 SPRAG
31 LG308.05.04 Rightoperations assembly
32 LG308.05.08 Inner thread rod joint bearing
33 GB/T5783-2000 Bolt
34 GB/T93-1987 Washer
35 GB/T97.1-2002 Washer
36 GB/T794A Bolt
37 GB/T93-1987 Washer
38 GB/T6170-2000 Nut
39 LG308.05.10 Little Flexible shaft assembly
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
