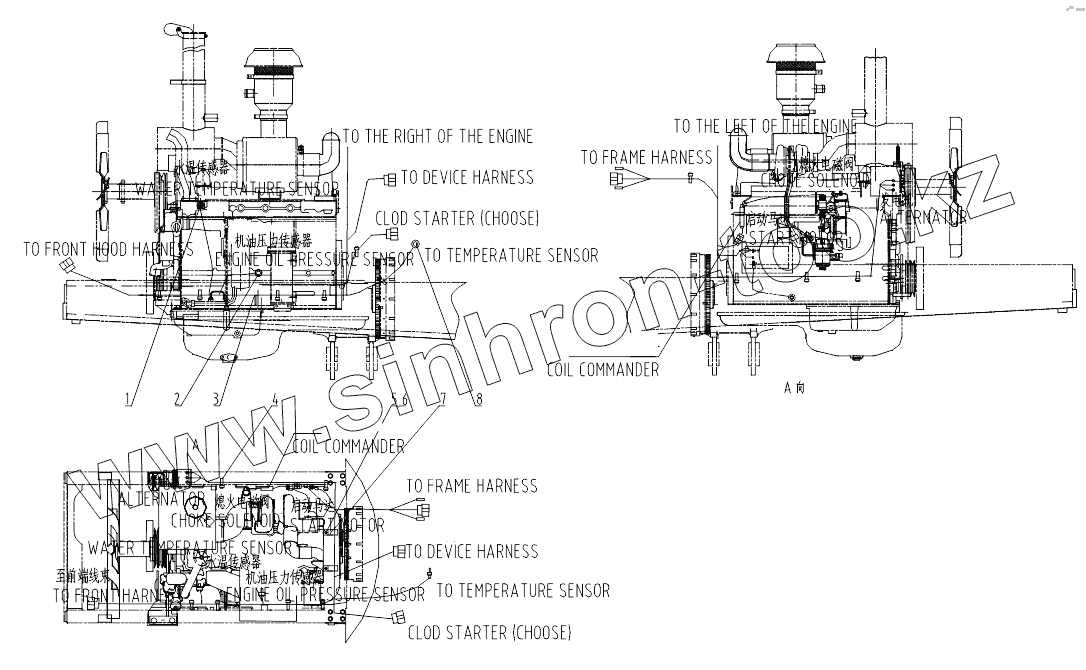

Каталог запасных частей к технике: LiuGong CLG-B160. 46C5787 ENGINE WIRING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 45E0965 000 DECAL GROUP 00E0823 001 ENGINE MOUNTING PARTS 00E0889 ENGINE SYSTEM (SPECIAL FOR SHANG CHAI) 00E0797 THROTTLE CONTROL LEVER 00E0797 DECELERATOR PEDAL 00E0831 THROTTLE CONTROL LEVER (SPECIAL FOR SHANG CHAI) 00E0831 DECELERATOR PEDAL (SPECIAL FOR SHANG CHAI) 00E0574 RADIATOR PIPING AND WIND BREAK 00E0837 RADIATOR PIPING AND WIND BREAK (SPECIAL FOR SHANG CHAI) 40C2434 FUEL TANK AS 00E0836 FUEL TANK (CHANG CHAI) 04E0073 TRANSFER CASE 04E0073 TRANSFER CASE 04E0073 TRANSFER CASE 04E0073 TRANSFER CASE 04E0105 TRANSFER CASE (SPECIAL FOR SHANG CHAI) 04E0105 TRANSFER CASE (SPECIAL FOR SHANG CHAI) 04E0105 TRANSFER CASE (SPECIAL FOR SHANG CHAI) 04E0105 TRANSFER CASE (SPECIAL FOR SHANG CHAI) 26E0100 001 UNIVERSAL JOINT 02E0049 TORQUE CONVERTER 02E0049 TORQUE CONVERTER 02E0049 TORQUE CONVERTER 02E0049 TORQUE CONVERTER 02E0049 TORQUE CONVERTER 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 04E0071 TRANSMISSION 26E0083 SUPPORT AND DRIVE SHAFT SYSTEM 26E0093 FINAL DRIVE 26E0093 FINAL DRIVE 26E0093 FINAL DRIVE 26E0096 FINAL DRIVE (SWAMP) 26E0096 FINAL DRIVE (SWAMP) 26E0096 FINAL DRIVE (SWAMP) 24E0052 TORQFLOW TRANSMISSION CHANGE LEVER 15E0514 TORQUE CONVERTER AND GEARBOX LINES 15E0514 TORQUE CONVERTER AND GEARBOX LINES 15E0514 TORQUE CONVERTER AND GEARBOX LINES 10E0173 STEERING LINES 10E0173 STEERING LINES 10E0197 STEERING LINES (SPECIAL FOR SHANG CHAI) 10E0197 STEERING LINES (SPECIAL FOR SHANG CHAI) 15E0515 STEERING RELIEF LINES 15E0516 TEST LINES 12C1885 STEERING VALVE 12C1896 RELIEF VALVE 11C0798 TRANSMISSION PUMP 11C0799 STEERING PUMP 53C0396 SECONDARY OIL FILTER 53C0393 PRIMARY OIL FILTER 00C1164 PUMP LINES (WITH RIPPER CONTROL) 00C1200 PUMP LINES 00C1776 PUMP LINES (ANGLE BLADE WITH RIPPER CONTROL) 00C1859 PUMP LINES (ANGLE BLADE) 00C2517 PUMP LINES (ANGLE BLADE WITH WINCH) 44C1418 BLADE LIFT LINES 44C1444 BLADE LIFT LINES (SWAMP) 44C1485 BLADE LIFT LINES 44C1683 BLADE LIFT LINES (SWAMP AND LENGTH) 44C0673 BLADE TILT LINES 44C0673 BLADE TILT LINES 44C0675 BLADE TILT LINES (SWAMP) 44C0675 BLADE TILT LINES (SWAMP) 44C0615 THREE TEETH RIPPER LINES 44C0986 WINCH LINES 21C0320 HYDRAULIC OIL TANK 21C0320 HYDRAULIC OIL TANK 21C0326 HYDRAULIC OIL TANK (WITH RIPPER CONTROL VALVE) 21C0326 HYDRAULIC OIL TANK (WITH RIPPER CONTROL VALVE) 12C2121 BLADE CONTRAL VAVLE 12C2121 BLADE CONTRAL VAVLE 12C2031 RIPPER CONTROL VAVLE 10C0892 000 RIPPER CYLINDER 11C0765 000 GEAR PUMP 45C0232 CLUTCH 20E0272 BRAKE 20E0272 BRAKE 20E0270 000 STEERING CONTROL LEVER 20E0270 000 BRAKE PEDAL AND LINKAGE 20E0270 BRAKE PEDAL AND LINKAGE 20E0270 000 BRAKE LOCK LEVER 33E0076 TRACK FRAME AS 33E0076 TRACK FRAME COVER 33E0076 RECOIL SPRING 33E0076 IDLER AS 33E0076 CARRIER ROLLER 33E0076 TRACK ROLLER 33E0078 TRACK AS 33E0077 TRACK FRAME (SWAMP) 33E0077 TRACK FRAME COVER (SWAMP) 33E0077 RECOIL SPRING (SWAMP) 33E0077 IDLER AS (SWAMP) 33E0077 CARRIER ROLLER (SWAMP) 33E0077 TRACK ROLLER (SWAMP) 33E0095 TRACK AS (SWAMP) 30E0475 MAIN FRAME AS 30E0692 STEERING CASE AND MAIN FRAME (FOREST) 30E0491 MAIN FRAME AS (SWAMP) 32E1540 STRAIGHT TILT BLADE 32E1600 BLADE ASSEMBLY 32E1600 BLADE ASSEMBLY 32E1543 STRAIGHT TILT BLADE (SWAMP) 24C0553 TRACTION FRAME 30E0467 EQUALIZE BAR 30E0473 EQUALIZE BAR (SWAMP) 32E0780 BLADE CONTROL LEVER (STRAIGHT BLADE) 32E0780 BLADE CONTROL LEVER (STRAIGHT BLADE) 32E1165 ANGLE BLADE CONTROL LEVER 32E1165 ANGLE BLADE CONTROL LINKAGE 32E1126 RIPPER CONTROL LEVER 32E1126 RIPPER CONTROL LINKAGE 32E0898 THREE TEETH RIPPER 41E0403 CAB AS 44E0481 ENGINE HOOD AS 44E0504 ENGINE HOOD AS (SPECIAL FOR SHANG CHAI) 36E0018 SAFEGUARD 22C0830 BRACKET 22C0698 BRACKET 46E0056 SEAT AS 48C0845 001, 48C0846 001 SIDE HOOD 30E0713 FENDER AS 48C1416 SHIELD A 30E0712 FENDER AS (SPECIAL FOR RIPPER) 30E0756 FENDER AS (SPECIAL FOR HYDRAULIC WINCH) 48C1472 SHIELD AS 30E0755 FENDER AS (SPECIAL FOR ROPS) 30E0753 FENDER AS (SPECIAL FOR ROPS, RIPPER) 42E0017 BOTTOM GUARD AS 42E0017 BOTTOM GUARD AS (SPECIAL FOR SHANG CHAI) 42E0019 BOTTOM GUARD AS (SWAMP) 42E0023 FLOOR PLATE AS 46C3857 BATTERY WIRING GP 46C3428 BATTERY WIRING 46C3890 LIGHTING GROUP 46C3425 FRONT WIRING 46C5563 FRAME WIRING 46C3424 ENGINE WIRING 46C3427 CAB WIRING 46C3429 CONSOLE WIRING 46C3857 BATTERY WIRING GP 46C5292 BATTERY WIRING 46C3890 LIGHTING GROUP 46C2406 LIGHTING GROUP 46C2367 REAR LIGHT 46C5560 FRONT WIRING 46C5563 FRAME WIRING 46C5787 ENGINE WIRING 46C3427 CAB WIRING 46C3429 CONSOLE WIRING

1

2

3

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	30B0391		Temp sensor
2	30B0423		Engine oil pressure sensor
3	08C4247		Engine harness
4	37B0009		Хомут
5	06B0396		Washer
6	00B0236		BOLT
7	20A1854		Хомут
8	30B0392		Temp sensor

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
