Каталог запасных частей к технике: LiuGong CLG-933E. 10C3144-000-00 ARM CYLINDER AS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00Y0401-000-00 ENGINE SYSTEM 40C4215-003-00 COOLING SYSTEM 40C4215-003-01 COOLING SYSTEM 40C4215-003-02 COOLING SYSTEM 40C4215-003-03 COOLING SYSTEM 40C4215-003-04 COOLING SYSTEM 20C1517-000-00 RADIATOR GP 48C2523-001-00 SHROUD AS 55A3392-000-00 BLOCK 40C6165-000-00 ENGINE MOUNTING 40C6165-000-01 ENGINE MOUNTING 40C6166-001-00 FUEL SYSTEM 40C6166-001-01 FUEL SYSTEM 21C0891-000-00 FUEL TANK 21C0739-000-00 TANK COVER AS 21C1118-000-00 FUEL TANK 21C1241-000-00 FUEL TANK 40C3253-000-00 OIL-WATER SEPARATOR 40C7006-000-00 INTAKE AND EXHAUST SYSTEM 40C7006-000-01 INTAKE AND EXHAUST SYSTEM 40C0319-000-00 AIR FILTER AS 15Y0474-000-00 HYDRAULIC SYSTEM 11Y0043-003-00 WORK IMPLEMENT LINES AS 11Y0043-003-01 WORK IMPLEMENT LINES AS 11Y0043-003-02 WORK IMPLEMENT LINES AS 11Y0043-003-03 WORK IMPLEMENT LINES AS 11Y0043-003-04 WORK IMPLEMENT LINES AS 11Y0043-003-05 WORK IMPLEMENT LINES AS 11Y0043-003-06 WORK IMPLEMENT LINES AS 09C1125-001-00 CLAMP 09C1126-001-00 CLAMP 09C1127-000-00 CLAMP 10C1672-000-00 BOOM CYLINDER 10C1673-002-00 ARM CYLINDER 10C1674-000-00 BUCKET CYLINDER 10C1808-000-00 BUCKET CYLINDER AS 10C1918-000-00 ARM CYLINDER AS 10C1919-000-00 BOOM CYLINDER AS-LH 10C3252-000-00 BOOM CYLINDER 10C1920-000-00 BOOM CYLINDER AS-RH 10C3142-000-00 BOOM CYLINDER AS-LH 10C3143-000-00 BOOM CYLINDER AS-RH 10C3144-000-00 ARM CYLINDER AS 10C3672-000-00 ARM CYLINDER 10C3145-000-00 BUCKET CYLINDER AS 10C3673-000-00 BUCKET CYLINDER 12Y0156-000-00 PILOT HYDRAULIC SYSTEM 12Y0156-000-01 PILOT HYDRAULIC SYSTEM 12Y0156-000-02 PILOT HYDRAULIC SYSTEM 12Y0156-000-03 PILOT HYDRAULIC SYSTEM 12Y0156-000-04 PILOT HYDRAULIC SYSTEM 12Y0156-000-05 PILOT HYDRAULIC SYSTEM 12Y0156-000-06 PILOT HYDRAULIC SYSTEM 12Y0156-000-07 PILOT HYDRAULIC SYSTEM 12Y0156-000-08 PILOT HYDRAULIC SYSTEM 12Y0156-000-09 PILOT HYDRAULIC SYSTEM 12Y0156-000-10 PILOT HYDRAULIC SYSTEM 12Y0156-000-11 PILOT HYDRAULIC SYSTEM 12Y0156-000-12 PILOT HYDRAULIC SYSTEM 12Y0156-000-13 PILOT HYDRAULIC SYSTEM 12C0162-000-00 THROTTLING VALVE 12C0163-000-00 THROTTLING VALVE 12C3519-000-00 HAND PILOT VALVE 12C3786-000-00 FOOT PILOT VALVE 12C3939-000-00 PILOT VALVE 12C4749-000-00 SOLENOID VALVE 12C4904-000-00 FOOT PILOT VALVE 12C6002-000-00 SOLENOID VALVE 13Y0073-002-00 TRAVEL HYDRAULIC SYSTEM 13Y0073-002-01 TRAVEL HYDRAULIC SYSTEM 13Y0073-002-02 TRAVEL HYDRAULIC SYSTEM 11C0710-000-00 TRAVEL MOTOR&REDUCTION GEAR 11C0938-001-00 HYDRO-MOTOR 42C0183-000-00 REDUCTION GEAR 42C1525-001-00 REDUCTION GEAR 33C0116-000-00 SWIVEL JOINT 88A0919-000-00 SEAL KIT 15Y0475-001-00 MAIN HYDRAULIC SYSTEM 15Y0475-001-01 MAIN HYDRAULIC SYSTEM 15Y0475-001-02 MAIN HYDRAULIC SYSTEM 15Y0475-001-03 MAIN HYDRAULIC SYSTEM 15Y0475-001-04 MAIN HYDRAULIC SYSTEM 15Y0475-001-05 MAIN HYDRAULIC SYSTEM 15Y0475-001-06 MAIN HYDRAULIC SYSTEM 15Y0475-001-07 MAIN HYDRAULIC SYSTEM 11C1204-000-00 PUMP 11C0590-002-00 PUMP GEAR 11C1570-000-00 MAIN PUMP AS 12C3505-001-00 SOLENOID VALVE 12C3610-000-00 PRESSURE REDUCING VALVE 15C0470-000-00 ADJUSTER 11C1594-000-00 SWING MOTOR AND REDUCTION GEAR 11C1609-000-00 SWING MOTOR 15C0061-000-00 VALVE BLOCK 12C1032-000-00 ANTI-REVERSE VALVE 42C0933-000-00 REDUCTION GEAR 11C2643-000-00 SWING MOTOR & REDUCTION GEAR 11C2656-001-00 SWING MOTOR 42C1788-001-00 REDUCTION GEAR 15C0939-000-00 OIL PIPE AS 12C4117-000-00 MAIN CONTROL VALVE 12C4117-000-01 MAIN CONTROL VALVE 12C4117-000-02 MAIN CONTROL VALVE 12C5502-000-00 MAIN CONTROL VALVE 12C5502-000-01 MAIN CONTROL VALVE 12C5502-000-02 MAIN CONTROL VALVE 21C0908-000-00 HYDRAULIC OIL TANK 44C1997-000-00 RESPIRATOR 53C0627-000-00 SUCTION STRAINER 15Y0690-000-00 MAIN HYDRAULIC SYSTEM 15Y0690-000-01 MAIN HYDRAULIC SYSTEM 15Y0690-000-02 MAIN HYDRAULIC SYSTEM 15Y0690-000-03 MAIN HYDRAULIC SYSTEM 15Y0690-000-04 MAIN HYDRAULIC SYSTEM 15Y0690-000-05 MAIN HYDRAULIC SYSTEM 15Y0690-000-06 MAIN HYDRAULIC SYSTEM 15Y0690-000-07 MAIN HYDRAULIC SYSTEM 15Y1506-000-00 HYDRAULIC SYSTEM 11Y0554-000-00 ATTACHMENT WORK LINES 11Y0554-000-01 ATTACHMENT WORK LINES 11Y0554-000-02 ATTACHMENT WORK LINES 12C2222-000-00 RELIEF VALVE 12Y0353-000-00 ATTACHMENT PILOT LINES 12C0256-001-00 FOOT PILOT VALVE 15Y1089-000-00 ATTACHMENT PLATFORM LINES 32E1211-000-02 EQUIPMENT 00C2156-001-00 GREASE LINES GP 28C0071-000-00 SHIM 28C0072-000-00 SHIM 28C0073-000-00 SHIM 43C2425-000-00 BOOM 43C2426-000-00 ARM 43C2427-000-00 LINK 43C5692-000-00 BOOM 43C5693-000-00 ARM 43C6888-000-00 BOOM 32E1211-001-00 EQUIPMENT 32E1211-001-01 EQUIPMENT 32E1211-001-03 EQUIPMENT 32Y0251-000-00 WORK IMPLEMENT 32Y0251-000-01 WORK IMPLEMENT 32Y0251-000-02 WORK IMPLEMENT 43C4727-000-00 ARM 33Y0126-000-00 UNDERCARRIAGE SYSTEM 25C1276-000-00 TRACK AS 25C1357-000-00 TRACK LINK AS 26B0329-000-00 SWING BEARING 30D1100-000-00 TRACK FRAME 44C0246-000-00 TENSIONER 34Y0053-001-00 REVOLVING FRAME AS 43C3970-002-00 BUCKET 41Y0538-000-00 CAB AS 47C0535-000-00 FIRE EXTINGUISHER 47C1897-001-00 CAB (WITH DECORATION) 47C1349-001-00 DECORATION AS 27C0832-000-00 FRIDGE 37C1118-000-00 COVER 37C1250-000-00 COVER 47C2485-000-00 COVER 47C1898-001-00 CAB GP 47C1898-001-01 CAB GP 47C0436-001-00 HAMMER 47C1338-001-00 DOOR GP 47C1341-001-00 WINDOW GP 47C1342-000-00 SIDE DOOR-LH 47C1343-000-00 WINDOW 47C1344-000-00 WINDOW 47C1346-000-00 GLASS 47C1878-001-00 LOCK 47C3396-000-00 FLOOR PLATE AS 47C3121-001-00 SEAT AS 34C1706-002-00 CONSOLE AS-RH 34C1707-001-00 CONSOLE AS-LH 34C2673-000-00 PILOT SHUTOFF LEVER 47C2606-001-00 SEAT 41Y0541-000-00 CAB AS 47C3397-000-00 FLOOR PLATE AS 47C3690-000-00 CAB (WITH DECORATION) 47C3685-000-00 CAB GP 47C3685-000-01 CAB GP 22C0670-000-00 BRACKET-LH 41Y0581-000-00 CAB AS 44Y0208-000-00 ENGINE HOOD AS 44Y0208-000-01 ENGINE HOOD AS 44Y0208-000-02 ENGINE HOOD AS 44Y0208-000-03 ENGINE HOOD AS 27C0835-000-00 COUNTERWEIGHT 27C0845-000-00 TOOL KIT 27C1165-000-00 TOOL KIT 48C2984-000-00 ENGINE HOOD 48C3402-000-00 ENGINE HOOD AS 48C3385-000-00 GRILL 48C3394-000-00 DOOR-LH 48C3395-000-00 DOOR-LH 42D1937-000-00 DOOR-LH 25C0930-000-00 HINGE 48C2650-000-00 DOOR LOCK 48C4219-000-00 DOOR-LH 48C4240-000-00 DOOR-LH 48C3403-000-00 ENGINE HOOD AS 48C3383-000-00 BAFFLE 48C3396-000-00 DOOR-RH 42D1938-000-00 DOOR-RH 48C4218-000-00 DOOR-RH 42D2346-000-00 DOOR-RH 22Y0851-000-00 ELECTRICAL SYSTEM 49C0276-000-00 FRAME WIRING AS 49C0276-000-01 FRAME WIRING AS 49C0276-000-02 FRAME WIRING AS 49C0276-000-03 FRAME WIRING AS 49C0276-000-04 FRAME WIRING AS 08C8048-000-00 FRAME HARNESS 08C8111-000-00 HARNESS 34B0297-000-00 DISCONNECT SWITCH 46C9210-000-00 CONTROL BOX AS 08C6005-000-00 HARNESS 49C5424-000-00 CONTROL BOX AS 46C6549-000-00 RELAY AS 70C1163-000-00 HARNESS 70C1320-000-00 FRAME HARNESS 49C1142-000-00 CONSOLE AS-LH 49C1144-000-00 CONSOLE AS-RH 34B1331-000-00 KEY SWITCH 34C5439-000-00 CONTROL LEVER AS 49C2260-000-00 CAB WIRING AS 49C0115-000-00 FUSE BOX 49C2267-000-00 CONTROLLER GP 49C2268-000-00 INSTRUMENT GP 22Y1462-000-00 ELECTRICAL SYSTEM 49C1054-000-00 TRAVEL ALARM WIRING AS 49C1084-001-00 ROTATING BEACON WIRING AS 49C5134-000-00 FRAME WIRING AS 49C5134-000-01 FRAME WIRING AS 49C5134-000-02 FRAME WIRING AS 49C5134-000-03 FRAME WIRING AS 49C5134-000-04 FRAME WIRING AS 70C0971-000-00 FRAME HARNESS 70C1351-000-00 FRAME HARNESS 49C5135-000-00 111 CAB WIRING AS 49C5139-000-00 LICENCE PLATE LIGHT WIRING 32B0333-000-00 LICENCE LIGHT 70C0974-000-00 HARNESS 49C5159-000-00 CONTROLLER GP 49C5158-000-00 CONTROLLER AS 22Y1485-000-00 ELECTRICAL SYSTEM 49C1194-000-00 SEAT WIRING AS 23E0359-005-00 AIR CONDITIONING SYSTEM 23E0359-005-01 AIR CONDITIONING SYSTEM 23E0359-005-02 AIR CONDITIONING SYSTEM 23E0359-005-03 AIR CONDITIONING SYSTEM 23E0359-005-04 AIR CONDITIONING SYSTEM 37C0698-000-00 AIR DUCT 46C0555-000-00 Ф16 HOSE 46C0752X19-000-00 COMPRESSOR 46C3629-002-00 CONDENSER 46C5189-000-00 EVAPORATOR AS 46C3663-000-00 WATER HOSE 46C6254-000-00 COMPRESSOR BRACKET AS 46C6362-000-00 FILTER COVER 46C6418-000-00 BRACKET 46C8501-000-00 WATER HOSE 47Y0010-000-00 ATTACHMENT 45E0052-000-00 SPARE TOOL 45E0354-000-00 SPARE TOOL 45E0971-000-00 SPARE PARTS 47Y0043-000-00 SPARE PARTS 47Y0043X0-001-00 Accessories 48Y0961-000-00 DECAL GROUP

1

1

1

2

3

4

5

6

7

8

9

10

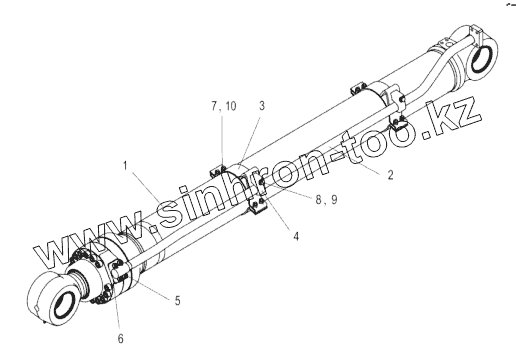

Позиция на иллюстрации	Заводской номер детали		Название детали
1	10С3672		ARM CYLINDER
1	10С1673		ARM CYLINDER
1	10С1673		ARM CYLINDER
2	09D6573		OIL PIPING GP
3	09С2156		CLAMP
4	27А3419		PLATE
5	04В0427		SCREW
6	12В0445		O-RING
7	00В0753		BOLT
8	06В0970		WASHER
9	01В0481		BOLT
10	06В0971		WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
