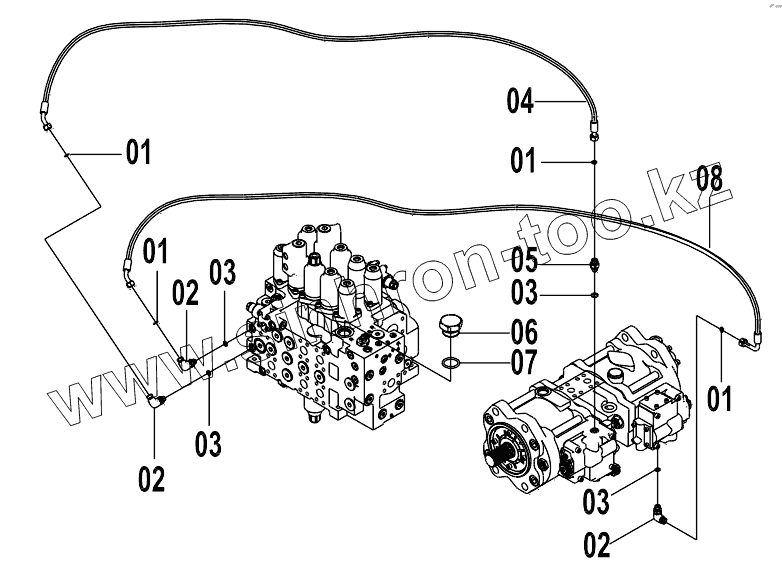

15E0513(D) MAIN HYDRAULIC PIPING (2)
Каталог запасных частей к технике: LiuGong CLG-925D. 15E0513(D) MAIN HYDRAULIC PIPING (2)
