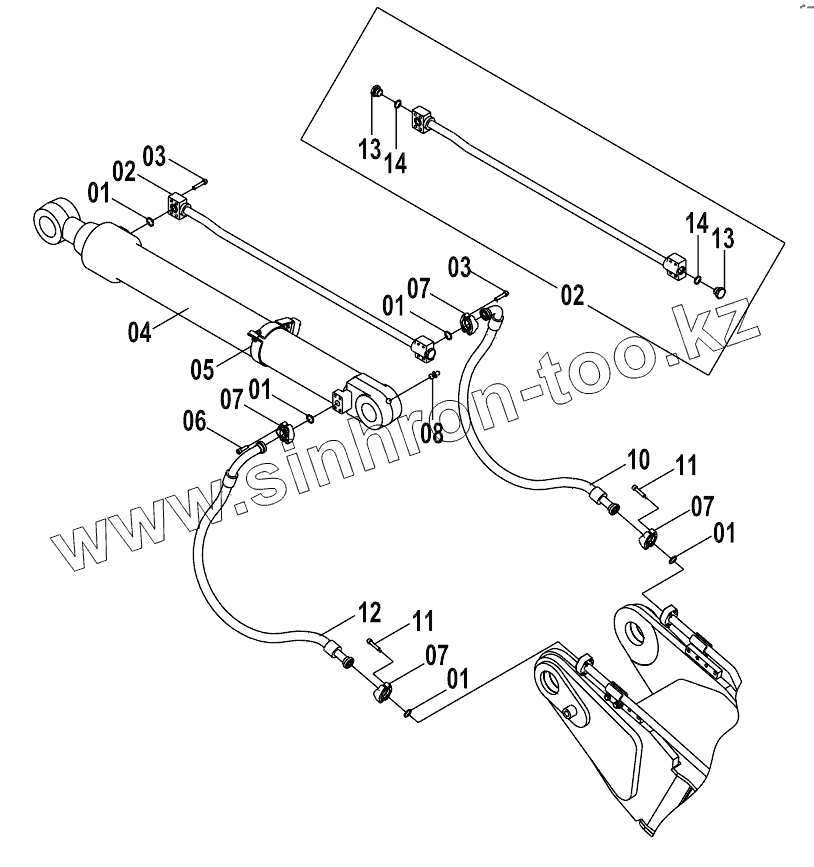

11E0498 (A) BUCKET CYLINDER LINES AS
Каталог запасных частей к технике: LiuGong CLG-925D. 11E0498 (A) BUCKET CYLINDER LINES AS
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CLG 425 (2010)
CLG 777A-S (2010)
CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016)
CLG-220 (2008)
CLG-225 (2008)
CLG-365A (2012)
CLG-375 (2008)
CLG-375A (2008)
CLG-385A (2008)
CLG-4165 (2015)
CLG-418 (2008)
CLG-4215 (2010)
CLG-612 (2008)
CLG-614 (2010)
CLG-618 (2010)
CLG-626R
CLG-766 (2015)
CLG-766A (2012)
CLG-816G (2012)
CLG-835
CLG-835 (2015)
CLG-835H (2015)
CLG-836 (2015)
CLG-842
CLG-842
CLG-842 (2015)
CLG-855N (2015)
CLG-856 (2015)
CLG-856H (2015)
CLG-856I
CLG-862 (2015)
CLG-877 (2015)
CLG-888 (2015)
CLG-904С (2007)
CLG-915D
CLG-915D
CLG-920D
CLG-920E (2015)
CLG-922D
CLG-922LC
CLG-922LC (2008)
CLG-925 (2015)
CLG-925D (2015)
CLG-933E (2010)
CLG-B160 (2010)
Схема
>
Не выбрано
45Е0997 003 DECAL GROUP
45E1002 004 DECAL GROUP
34E0079(A) REVOLVING FRAME
34E0079(B) HANDRAIL
34E0127 001 REVOLVING FRAME AS
34E0127(A) REVOLVING FRAME
34E0127(B) HANDRAIL
34E0136 001 REVOLVING FRAME AS
34E0136(A) REVOLVING FRAME
34E0136(B) HANDRAIL
00E0552(A) DIESEL ENGINE
00E0552(B) SHOCK ABSORBER MOUNTING
00E0552(C) FAN MOUNTING
00E0552(D) COUPLNG MOUNTING
00E0552(E) AIR FILTER MOUNTING
40C0999 000 AIR FILTER
00E0552(F) MUFFLER MOUNTING
00E0552(G) OIL FILTER PIPE
00E0552(H) FUEL TANK AND SUPPORT
21C0363 000 FUEL TANK
00E0552(I) FUEL PIPE 1
00E0552(J) FUEL PIPE 2
00E0552(K) COOLER SYSTEM PIPE
20C0700 006 RADIATOR GP
00E0552(L) RESERVE TANK SUPPORT
15E0658 000 HYDRAULIC SYSTEM
15E0689 000 HYDRAULIC SYSTEM
15E0747 000 HYDRAULIC SYSTEM
15E0757 000 HYDRAULIC SYSTEM
15E0875 000 HYDRAULIC SYSTEM
15E0513 014 MAIN HYDRAULIC SYSTEM
15E0513(A) OIL INPUT PIPING
15E0513(B) OIL OUTPUT PIPING
15E0513(C) MAIN HYDRAULIC PIPING (1)
15E0513(D) MAIN HYDRAULIC PIPING (2)
15E0513(E) MAIN HYDRAULIC PIPING (3)
15E0513(F) MAIN HYDRAULIC PIPING (4)
15E0513(G) MAIN HYDRAULIC PIPING (5)
15E0513(H) MAIN HYDRAULIC PIPING (6)
15E0513(I) MAIN HYDRAULIC PIPING (7)
15E0513(J) SWING PIPINGS
21C0341 001 HYDRAULIC OIL TANK
11C0842 001 PUMP
11C0590 001 PUMP GEAR
11C0591 001 MAIN PUMP AS
12C1366 001 PRESSURE REDUCING VALVE
12C0778 000 PRESSURE REDUCING VALVE
15C0287 000 PUMP REGULATO
12C2159 000 MAIN CONTROL VALVE
12C2410 000 MAIN CONTROL VALVE
12C0756 000 CHECK VALVE AS
12C2289 000 CHECK VALVE AS
12C1903 001 CHECK VALVE AS
11C0169 001 SWING MOTOR & REDUCTION GEAR
11C0464 001 SWING MOTOR
42C0142 001 REDUCTION GEAR
13E0066 002 TRAVEL HYDRAULIC SYSTEM
13E0066 TRAVEL HYDRAULIC SYSTEM (A)
13E0066 TRAVEL HYDRAULIC SYSTEM (B)
11C0264 003 TRAVEL MOTOR AND REDUCTION GEAR
12С0240 002 CENTER CONNECTOR
12E0124 011 PILOT HYDRAULIC SYSTEM
12E0124 PILOT HYDRAULIC SYSTEM (A)
12E0124 PILOT HYDRAULIC SYSTEM (B)
12E0124 PILOT HYDRAULIC SYSTEM (C)
12E0124 PILOT HYDRAULIC SYSTEM (D)
12E0124 PILOT HYDRAULIC SYSTEM (E)
12E0124 PILOT HYDRAULIC SYSTEM (F)
12E0124 PILOT HYDRAULIC SYSTEM (G)
12E0124 PILOT HYDRAULIC SYSTEM (H)
12E0124 PILOT HYDRAULIC SYSTEM (I)
12E0124 PILOT HYDRAULIC SYSTEM (J)
12E0124 PILOT HYDRAULIC SYSTEM (K)
12E0201 00 PILOT HYDRAULIC SYSTEM
12E0201 PILOT HYDRAULIC SYSTEM (A)
12E0201 PILOT HYDRAULIC SYSTEM (B)
12E0201 PILOT HYDRAULIC SYSTEM (C)
12E0201 PILOT HYDRAULIC SYSTEM (D)
12E0201 PILOT HYDRAULIC SYSTEM (E)
12E0201 PILOT HYDRAULIC SYSTEM (F)
12E0201 PILOT HYDRAULIC SYSTEM (G)
12E0201 PILOT HYDRAULIC SYSTEM (H)
12E0201 PILOT HYDRAULIC SYSTEM (I)
12E0201 PILOT HYDRAULIC SYSTEM (J)
12E0201 PILOT HYDRAULIC SYSTEM (K)
12C0914 002 PILOT VALVE GP
12C0925 002 HAND PILOT VALVE
12C2170 001 PILOT VALVE
11E0498 003 WORK IMPLEMENT LINES AS
11E0498 (A) BUCKET CYLINDER LINES AS
11E0498 (B) ARM CYLINDER LINES AS
11E0498 (C) BOOM CYLINDER LINES AS
11E0498 WORK IMPLEMENT LINES AS (D)
11E0521 005 WORK IMPLEMENT LINES AS
11E0521 (A) BUCKET CYLINDER LINES AS
11E0521 (B) ARM CYLINDER LINES AS
11E0521 (C) BOOM CYLINDER LINES AS
11E0521 (D) WORK IMPLEMENT LINES AS
11E0521 (E) WORK IMPLEMENT LINES AS
10C0303 000 BUCKET CYLINDER
10C0850 000 ARM CYLINDER
10C1055 000 BOOM CYLINDER
10C1051 001 ARM CYLINDER AS
10C1478 000 ARM CYLINDER AS
10C1211 000 ARM CYLINDER
10C1037 003 BOOM CYLINDER AS-LH
10C1038 003 BOOM CYLINDER AS-RH
11E0621 002 ATTACHMENT WORK LINES
11E0621 ATTACHMENT WORK LINES (A)
11E0621 ATTACHMENT WORK LINES (B)
11E0621 ATTACHMENT WORK LINES (C)
11E0658 002 ATTACHMENT WORK LINES
11Е0658 ATTACHMENT WORK LINES (А)
11Е0658 ATTACHMENT WORK LINES (В)
11Е0658 ATTACHMENT WORK LINES (С)
11E0522 006 ATTACHMENT WORK LINES
11Е0522 ATTACHMENT WORK LINKS (А)
11Е0522 ATTACHMENT WORK LINKS (В)
11Е0522 ATTACHMENT WORK LINKS (С)
12E0162 001 ATTACHMENT PILOT LINES
12C0256 001 FOOT PILOT VALVE
15E0659 001 ATTACHMENT PLATFORM LINES
12E0137 002 ATTACHMENT PILOT LINES
15E0552 005 ATTACHMENT PLATFORM LINES
12E0130 004 QUICK CONNECTOR CONTROL LINES
12E0130 QUICK CONNECTOR CONTROL LINES (A)
12E0130 QUICK CONNECTOR CONTROL LINES (B)
22E0953 001 ELECTRIC SYSTEM
22E0968 000 ELECTRIC SYSTEM
22E1075 000 ELECTRICAL SYSTEM
22E1235 000 ELECTRICAL SYSTEM
46C3920 005 CAB WIRING AS
46C5644 002 CAB WIRING AS
46C3920 CAB WIRING AS (A)
46C3920 CAB WIRING AS (B)
46C3920 CAB WIRING AS (C)
46C3920 CAB WIRING AS (D)
46C3920 CAB WIRING AS (E)
46C5644 CAB WIRING AS (A)
46C5644 CAB WIRING AS (B)
46C5644 CAB WIRING AS (C)
46C5644 CAB WIRING AS (D)
46C5644 CAB WIRING AS (E)
46C3921 009 FRAME WIRING AS
46C3921 FRAME WIRING AS (A)
46C3921 FRAME WIRING AS (B)
46C3921 FRAME WIRING AS (C)
46C3921 FRAME WIRING AS (D)
46C3921 FRAME WIRING AS (E)
46C3921 FRAME WIRING AS (F)
46C3921 FRAME WIRING AS (H)
46C3921 FRAME WIRING AS (I)
46C5645 003 FRAME WIRING AS
46C5645 FRAME WIRING AS (A)
46C5645 FRAME WIRING AS (B)
46C5645 FRAME WIRING AS (C)
46C5645 FRAME WIRING AS (D)
46C5645 FRAME WIRING AS (E)
46C5645 FRAME WIRING AS (F)
46C5645 FRAME WIRING AS (G)
46C5645 FRAME WIRING AS (H)
46C3924 000 CONTROL CASE AS
46C5643 000 CONTROL CASE AS
46C3922 ENGINE WIRING AS (A)
46C3922 ENGINE WIRING AS (B)
46C3922 ENGINE WIRING AS (C)
46C5642 002 ENGINE WIRING AS
46C5642 ENGINE WIRING AS (A)
46C5642 ENGINE WIRING AS (B)
46C5642 ENGINE WIRING AS (C)
46C5676 001 GPS WIRING AS
46C3645 000 GPS WIRING AS
46C3649 001 ROTATING BEACON WIRING AS
46C5649 000 ROTATING BEACON WIRING AS
46C3314 002 FLOOR PLATE WIRING AS
46C5639 000 FLOOR PLATE WIRING AS
46C5641 000 REVOLVING ALARM WIRING AS
46C3992 000 TRAVEL ALARM WIRING AS
3E0250 010 AIR CONDITIONING SYSTEM
23E0250 AIR CONDITIONING SYSTEM (A)
46C5189 000 EVAPORATOR AS
23E0250 AIR CONDITIONING SYSTEM (B)
23E0250 AIR CONDITIONING SYSTEM (C)
23E0250 AIR CONDITIONING SYSTEM (D)
46C3351 002 COMPRESSOR BRACKET AS
23E0250 AIR CONDITIONING SYSTEM (E)
46C3629 002 CONDENSER
23E0250 AIR CONDITIONING SYSTEM (F)
32Е0784 002 IMPLEMENT SYSTEM
32Е0864 002 WORK IMPLEMENT SYSTEM
32E0998 002 IMPLEMENT SYSTEM
32E1027 001 IMPLEMENT SYSTEM
32Е0784 (А) BOOM ASSY
32Е0784 (В) ARM ASSY
32E0784 (C) LINKAGE ASS`Y
32E0864 (A) BOOM
32E0864 (B) ARM
32E0864 (C) LINKAGE
32Е0998 (А) BOOM ASSY
32Е0998 (В) ARM ASSY
32E0998 (C) LINKAGE ASS`Y
32Е1027 (А) BOOM ASSY
32Е1027 (В) ARM ASSY
32E1027 (C) LINKAGE ASS`Y
00C0520 000 GREASE LINES
24C0278 003 LINKAGE
43C1128 000 BUCKET
43C1758 002 BUCKET AS
43C3421 000 BUCKET
43C1772 002 BUCKET AS
43C1773 002 BUCKET AS
43C2335 002 BUCKET AS
43C2713 000 BUCKET
33E0083 004 UNDERCARRIAGE SYSTEM
33E0092 003 UNDERCARRIAGE SYSTEM
33E0083 (A) TRACK FRAME
33E0083 (B) SWING BEARING
33E0083 (C) TRACK ROLLER
33E0083 (D) TENSIONER
33E0083 (E) SPROCKET
25C0043 000 TRACK AS
25C0680 000 TRACK AS
33E0092 (A) TRACK FRAME
33E0092 (B) SWING BEARING
33E0092 (C) TRACK ROLLER
33E0092 (D) TENSIONER
33E0092 (E) SPROCKET
41E0337 001 CAB AS
41E0376 000 CAB AS
47C1115 000 CAB (WITH DECORATION & GUARD)
47С1052 001 CAB (WITH DECORATION)
47С1153 000 CAB GP
47С1153 CAB GP (A)
47С1153 (В) CAB GP
47C1153 (C) CAB GP
47C1153 (D) CAB GP
47С1153 (Е) CAB GP
47C1154 001 DECORATION AS
47C1075 002 FLOOR PLATE AS
47C1074 001 SEAT AS
34С1389 001 CONSOLE AS-RH
34С1388 001 CONSOLE AS-LH
47C1048 001 SEAT
44E0350 006 ENGINE HOOD AS
44E0468 003 ENGINE HOOD AS
44E0350 ENGINE HOOD AS (A)
44E0350 ENGINE HOOD AS (B)
44E0350 ENGINE HOOD AS (C)
44E0350 ENGINE HOOD AS (D)
44E0350 ENGINE HOOD AS (E)
44E0350 ENGINE HOOD AS (F)
44E0350 ENGINE HOOD AS (G)
44E0350 (I) COUNTERWEIGHT SUPPORT
48C1207 000 DOOR-LH
48С0853 001 DOOR-LH
48С0856 000 PLATE-RH
48С0890 000 DOOR-RH
27C0312 001 TOOL KIT
48C0848 003 ENGINE HOOD
44E0468 ENGINE HOOD AS (A)
44E0468 ENGINE HOOD AS (B)
48C1876 000 HOOD
48С1876 HOOD (A)
48C1876 HOOD (B)
48C1878 000 HOOD
48C1878 HOOD (A)
48С1878 HOOD (B)
44E0468 ENGINE HOOD AS (C)
47E0433 002 ATTACHMENT AND OIL SPECIFICATION
1
1
1
1
1
2
2
3
3
4
5
6
7
7
7
7
8
10
11
11
12
13
13
14
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
12B0444
Кольцо круглого сечения
2
02C0699
Tube as
3
04B0418
SCREW
4
10C0303
Bucket cylinder
5
09C0682
Clamp
6
04B0415
SCREW
7
04A0252
Хомут
8
10B0014
Ниппель
10
06C4283
Hose as
11
04B0670
Screw
12
06C4979
Hose as
13
05A0078
Пробка
14
12B0431
Кольцо круглого сечения
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
