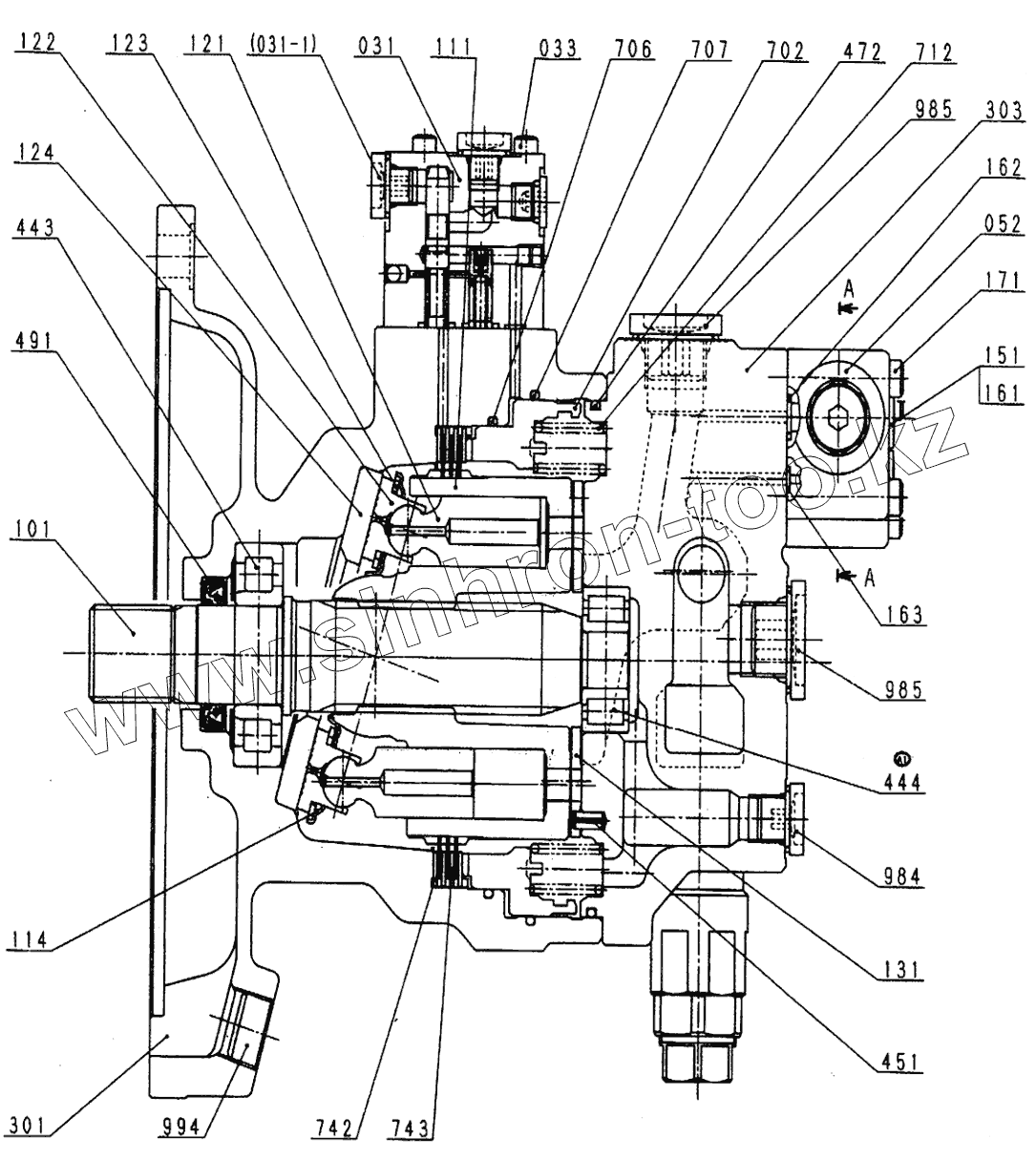

Каталог запасных частей к технике: LiuGong CLG-922LC. SWING MOTOR
121
122
303
451
101
111
114
123
124
131
301
443
444
472
491
702
706
707
712
742
743
984
985
985
994
52
31
(031-1)
33
151
161
162
163
171
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 3721250-0102 | ASS'Y PISTON | |
| 121 | 3753700718 | PISTON | |
| 122 | 3724330-0065 | SHOE | |
| 20 | 3723230-0226 | ASS'Y VALVE CASING H2 | |
| 303 | 3723230-0225 | CASING H2,VALVE | |
| 451 | OSPV614 | PIN | |
| 101 | 3724250-0367 | SHAFT, DRIVE | |
| 111 | 3724370-0251 | CYLINDER | |
| 114 | 3703330-0017 | SPRING, PLATE | |
| 123 | 3724110-0044 | PLATE, SET | |
| 124 | 3724670-0048 | PLATE, SHOE | |
| 131 | 3724710-0203 | PLATE A, VALVE | |
| 301 | 3723270-0347 | CASING DA1 | |
| 351 | 3753700549 | PLUNGER H | |
| 355 | 3753700548 | SPRING H | |
| 390 | PNPA-2550A | PLATE NAME | |
| 391 | OSK2548 | PIN | |
| 401 | OSBM2045 | SCREW,HEX.S.H.C | |
| 443 | PNJ307EVV | BEARING,ROLLER | |
| 444 | PNJ2304EHT | BEARING ,ROLLER | |
| 469 | OROMH30 | PLUG | |
| 472 | OORWG40 | O-RING | |
| 488 | OORBP28 | O-RING | |
| 491 | PTCN35M | SEAL, OIL | |
| 702 | 3724510-0011 | PISTON, BRAKE | |
| 706 | OORWG38 | O-RING | |
| 707 | OORWG41 | O-RING | |
| 712 | 3703340-0660 | SPRING, BRAKE | |
| 742 | 3724730-0008 | PLATE, FRICTION | |
| 743 | 3724690-0008 | PLATE, SEPARATOR | |
| 984 | PVA38A | PLUG, MASKING | |
| 985 | PVA34A | PLUG, MASKING | |
| 993 | OBP14 | PLUG | |
| 994 | OBP34 | PLUG | |
| 81 | 3702255-0366 | ASS'Y SEAL KIT | |
| 52 | V9409216208 | ASS'Y S.R. VALVE | |
| 31 | 3753700422P | VALVE, TIME DELAY | |
| (031-1) | PVA14A | PLUG, MASKING | |
| 33 | OSBM670 | SCREW,HEX.S.H.C | |
| 51 | V2CY2 | VALVE ,RELIEF | |
| (051-1) | OORBG30 | O-RING | |
| 100 | VZ33170-0171 | CASING | |
| 151 | OROH14 | PLUG | |
| 161 | OORBP11 | O-RING | |
| 162 | OORBP12 | O-RING | |
| 163 | OORBP6 | O-RING | |
| 171 | OSBM855 | SCREW,HEX.S.H.C. | |
| 400 | V9409196196 | VALVE,SWING RECTIONLESS | |
| (400-1) | OORBP20 | O-RING | |
| (400-2) | OT2BP20 | RING, BACK-UP |
