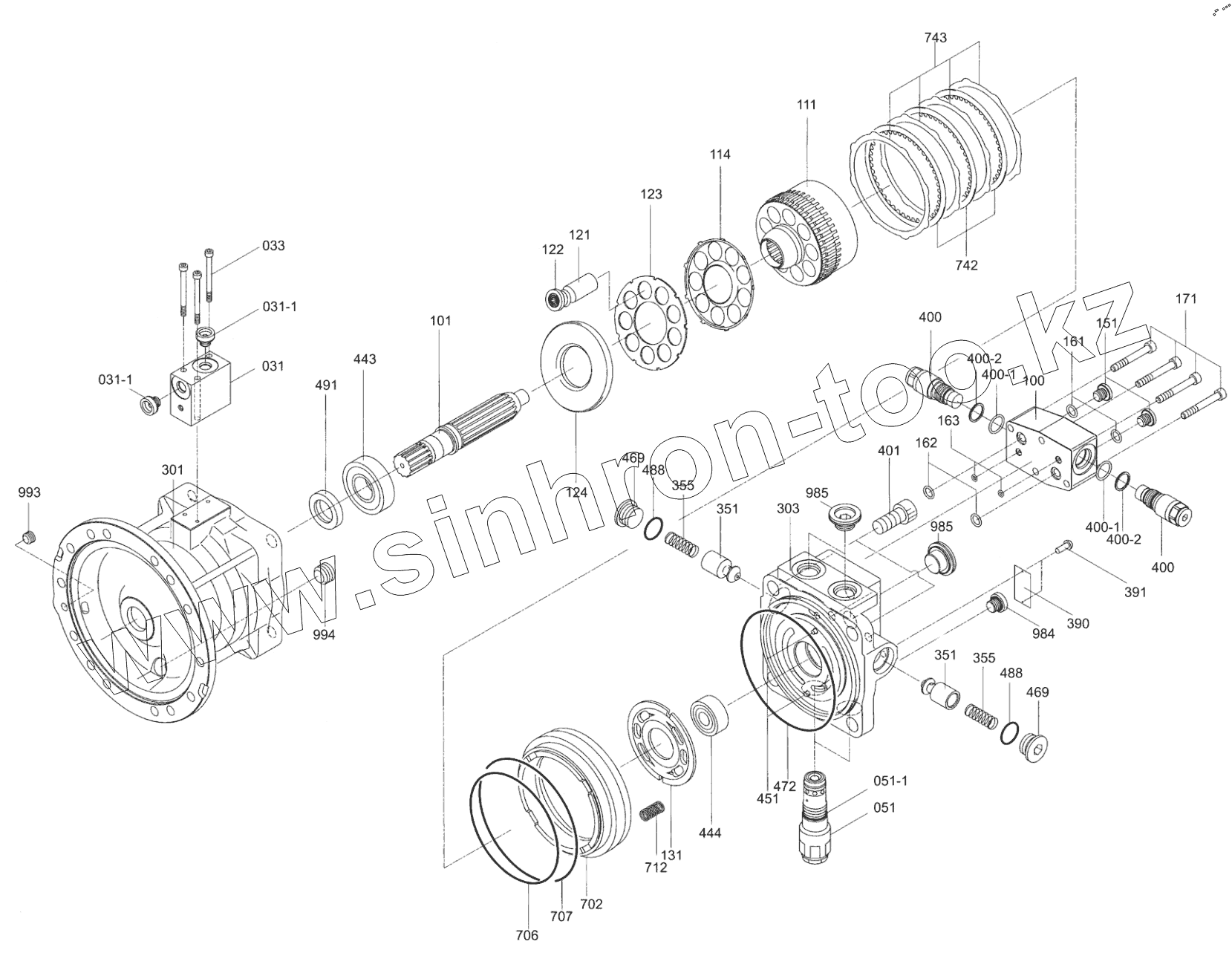

Каталог запасных частей к технике: LiuGong CLG-922LC. 11C0587 002 SWING MOTOR & REDUCER
31
31.1
31.1
33
51
51.1
100
101
111
114
121
122
123
124
131
151
161
162
163
171
351
351
355
355
390
391
400.2
400.2
400
400
400.1
400.1
401
443
444
469
469
472
488
488
491
702
706
707
712
742
743
984
985
985
993
994
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 15C0286 | Piston gp | |
| 20 | 15C0060 | Valve bushing gp | |
| 30 | 22C0396 | Carrier | |
| 31 | 12C0275 | Time delay valve | |
| 31.1 | 05A0380 | Plug | |
| 33 | 04B0310 | Screw | |
| 40 | 24C0331 | Dipstick gp | |
| 50 | 15C0159 | Oil pipe as | |
| 51 | 15C0100 | Relief valve | |
| 51.1 | 12B0749 | Кольцо круглого сечения | |
| 52 | 15C0061 | VALVE BLOCK | |
| 100 | 78A0203 | Valve body | |
| 101 | 62A0091 | Drive shaft | |
| 102 | 53A0967 | Seat | |
| 111 | 55A0901 | Air cylinder | |
| 114 | 52A0176 | Spring plate | |
| 121 | 50A0420 | Piston | |
| 122 | 55A3414 | Shoe | |
| 123 | 52A0177 | Plate | |
| 124 | 52A0178 | Shoe | |
| 131 | 52A0179 | Valve plate | |
| 151 | 05A0381 | PLUG | |
| 161 | 12B0962 | O-RING | |
| 162 | 12B0963 | O-RING | |
| 163 | 12B0964 | O-RING | |
| 171 | 04B0525 | Hex screw | |
| 201 | 63A0239 | Drive shaft | |
| 210 | 41A0250 | Gear | |
| 211 | 41A0249 | Gear | |
| 230 | 72A1150 | Carrier | |
| 231 | 18A2580 | Thrust plate | |
| 282 | 08B0319 | PIN | |
| 283 | 18A2581 | SIDE PLATE | |
| 285 | 08B0385 | PIN | |
| 286 | 18A0666 | PLATE | |
| 287 | 72A1336 | CARRIER | |
| 301 | 70A0552 | HOUSING | |
| 311 | 20A8392 | DIPSTICK | |
| 312 | 33A1010 | PIPE | |
| 313 | 35A1541 | FILLER TUBE | |
| 314 | 53A1128 | Cap | |
| 351 | 50A0095 | PISTON | |
| 355 | 75A0157 | SPRING | |
| 390 | 74A1914 | Nameplate | |
| 391 | 08B0127 | PIN | |
| 400.2 | 07B0250 | SNAP RING | |
| 400 | 12C1032 | ANTI-REVERSE VALVE | |
| 400.1 | 12B0965 | O-RING | |
| 401 | 04B0311 | SCREW | |
| 402 | 20B0215 | ROLLER BERAING | |
| 443 | 22B0008 | BEARING | |
| 444 | 22B0009 | BEARING | |
| 469 | 05A0116 | PLUG | |
| 472 | 12B0961 | O-RING | |
| 488 | 12B0548 | O-RING | |
| 491 | 80A0329 | OIL SEAL | |
| 602 | 04B0624 | HEX SCREW | |
| 702 | 15C0062 | BRAKE SHOE | |
| 706 | 12B0549 | O-RING | |
| 707 | 12B0550 | O-RING | |
| 712 | 75A0158 | BRAKE SPRING | |
| 742 | 57A0296 | Friction plate | |
| 743 | 57A0297 | Spacer block | |
| 801 | 80A0556 | Oil seal | |
| 901 | 05A0371 | Plug | |
| 910 | 60A1551 | Pin | |
| 912 | 07B0115 | Snap ring | |
| 913 | 07B0116 | Snap ring | |
| 915 | 07B0117 | Snap ring | |
| 925 | 12C0277 | Клапан воздушный | |
| 926 | 10B0078 | GREASE FITTING | |
| 984 | 05A0378 | Plug | |
| 985 | 05A0379 | PLUG | |
| 993 | 05A0117 | Plug | |
| 994 | 05A0118 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
