47C1775 001 SEAT
44Y0056 001 ENGINE HOOD AS
27C0494 001 TOOL KIT
48C1936 002 ENGINE HOOD
27C0517 002 COUNTERWEIGHT GP
44Y0050 001 ENGINE HOOD AS
48C1933 002 DOOR-RH
44Y0057 001 ENGINE HOOD AS
48C1935 003 DOOR-LH
48C1934 004 DOOR-LH
47Y0089 000 ATTACHMENT AND OIL SPECIFICATION
50B0356 000 SPARE PARTS
45E0052 003 SPARE TOOL

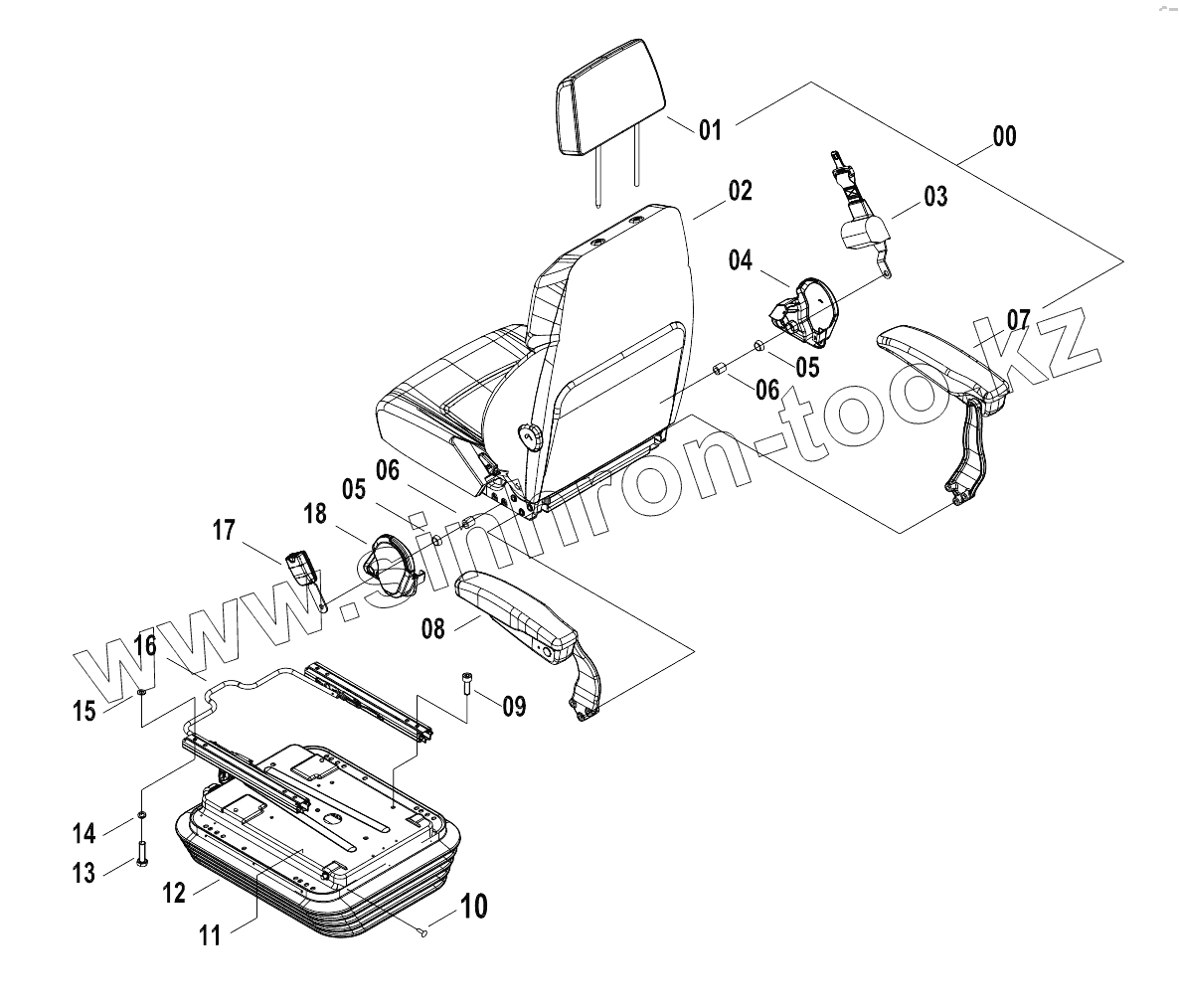

47C1775001
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
47C1775001
47C1775001
SEAT
1
34C2357
Headrest
2
34C2363
Cushion
3
34C2362
Seat belt
4
86A0733
COVER
5
86A1728
Cover
6
57A1477
Shim
7
34C2358
Handrail gp-rh
8
34C2359
Handrail-lh
9
04B0263
SCREW
10
86A1730
Fastener
11
34C2360
Bracket
12
86A1729
Dust cover
13
04B0078
Болт
14
06B0006
Шайба
15
06B0005
WASHER
16
34C2350
Slide track
17
34C2361
Safety button
18
86A1726
Cover
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
