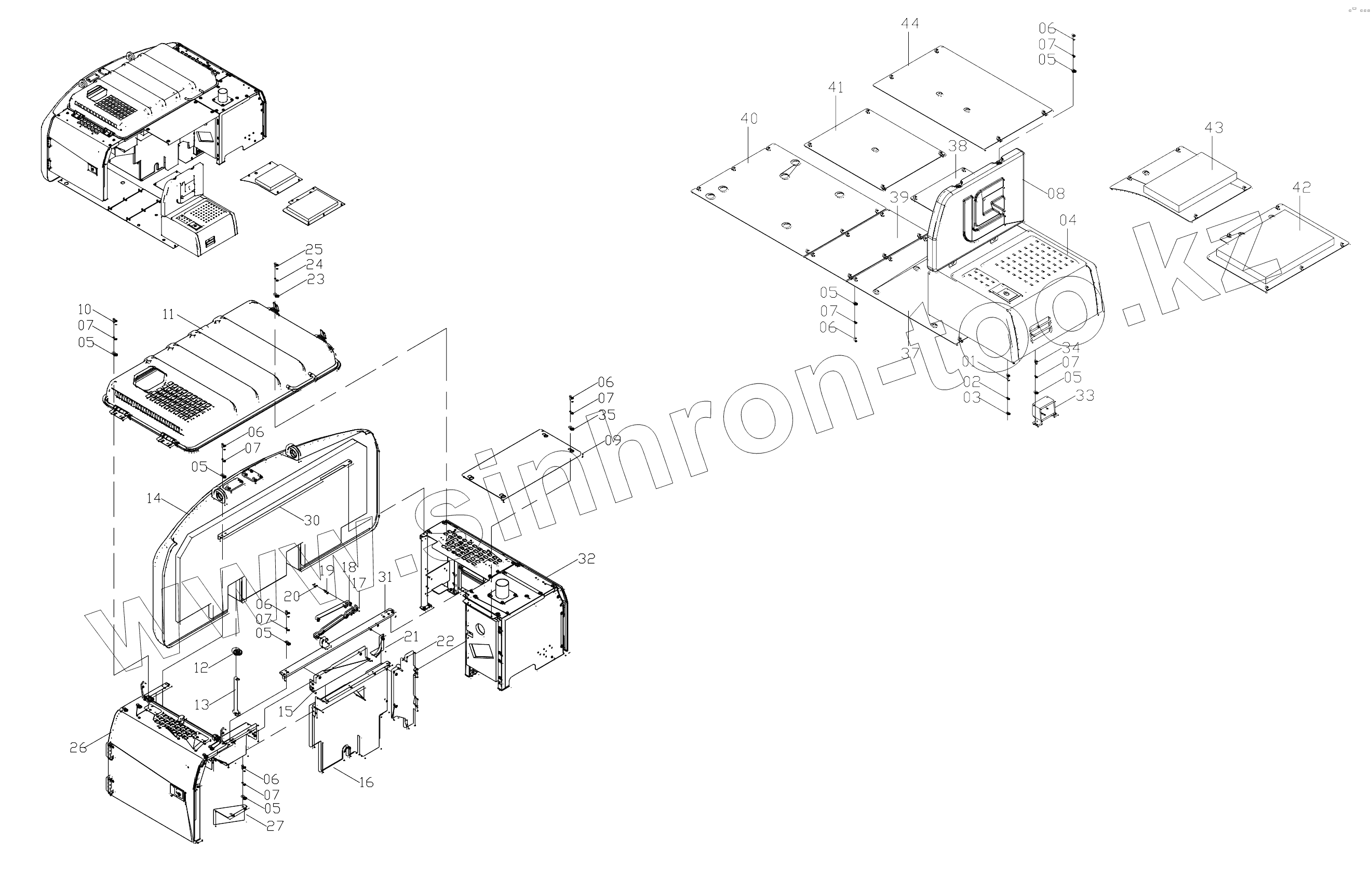

Каталог запасных частей к технике: LiuGong CLG-920E. 44Y0056 001 ENGINE HOOD AS
1
2
3
4
5
5
5
5
5
5
5
6
6
6
6
6
6
7
7
7
7
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
30
31
32
33
34
35
37
38
39
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00B0058 | Болт | |
| 2 | 06B0008 | Шайба | |
| 3 | 06B0007 | WASHER | |
| 4 | 27C0494 | Tool kit | |
| 5 | 06B0030 | WASHER | |
| 6 | 00B0012 | BOLT | |
| 7 | 06B0002 | Шайба | |
| 8 | 43D0962 | Cover | |
| 9 | 43D1278 | Cover | |
| 10 | 00B0002 | Болт | |
| 11 | 48C1936 | Engine hood | |
| 12 | 56A1245 | Washer | |
| 13 | 01B0721 | Bolt | |
| 14 | 27C0517 | Counterweigh t gp | |
| 15 | 19A6999 | Plate | |
| 16 | 48C2582 | Baffle | |
| 17 | 21A1314 | Рычаг | |
| 18 | 16D0684 | Holder | |
| 19 | 08B0047 | Палец | |
| 20 | 08B0052 | Pin | |
| 21 | 19A7000 | Plate | |
| 22 | 48C2581 | Baffle | |
| 23 | 06B0005 | WASHER | |
| 24 | 06B0006 | Шайба | |
| 25 | 00B0075 | BOLT | |
| 26 | 44Y0050 | Engine hood as | |
| 27 | 84A1516 | Rubber plate | |
| 30 | 25A2063 | Angle steel | |
| 31 | 32D1624 | Beam | |
| 32 | 44Y0057 | Engine hood as | |
| 33 | 02D1702 | Holder | |
| 34 | 00B0005 | BOLT | |
| 35 | 56A1078 | Gasket | |
| 37 | 10A5259 | Bottom plate | |
| 38 | 10A5298 | Bottom plate | |
| 39 | 10A5258 | Bottom plate | |
| 40 | 10A5260 | Bottom plate | |
| 41 | 10A8344 | Bottom plate | |
| 42 | 48C1092 | Bottom plate | |
| 43 | 48C1093 | Bottom plate | |
| 44 | 10A5256 | Bottom plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
