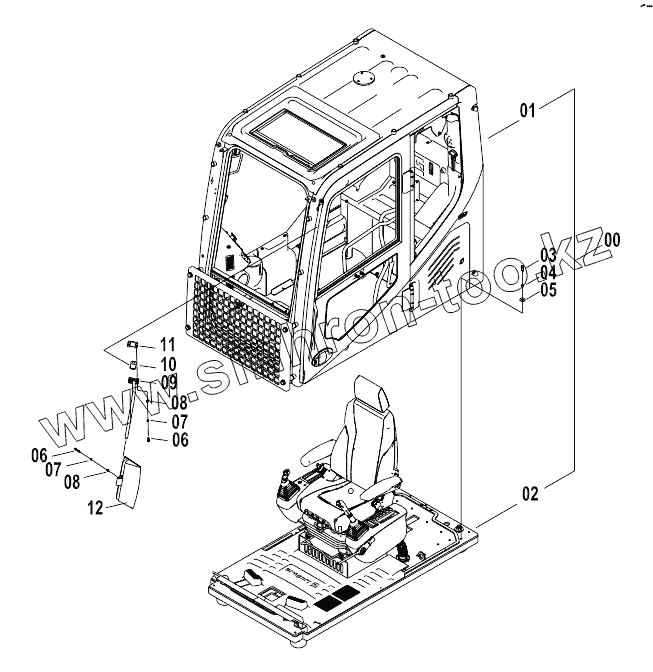

41E0602000
1
2
3
4
5
6
6
7
7
8
8
9
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
41E0602000
41E0602000
Cab AS
1
47C2033
Cab(with decoration and guard
2
47C1837
Floor plate as
3
00B0017
BOLT
4
06B0008
Шайба
5
06B0059
Шайба
6
04B0016
Болт
7
06B0006
Шайба
8
06B0005
WASHER
9
00D2078
SUPPORT
10
83A1644
BOOT
11
54A0167
BASE
12
47C0110
Зеркало заднего вида
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
