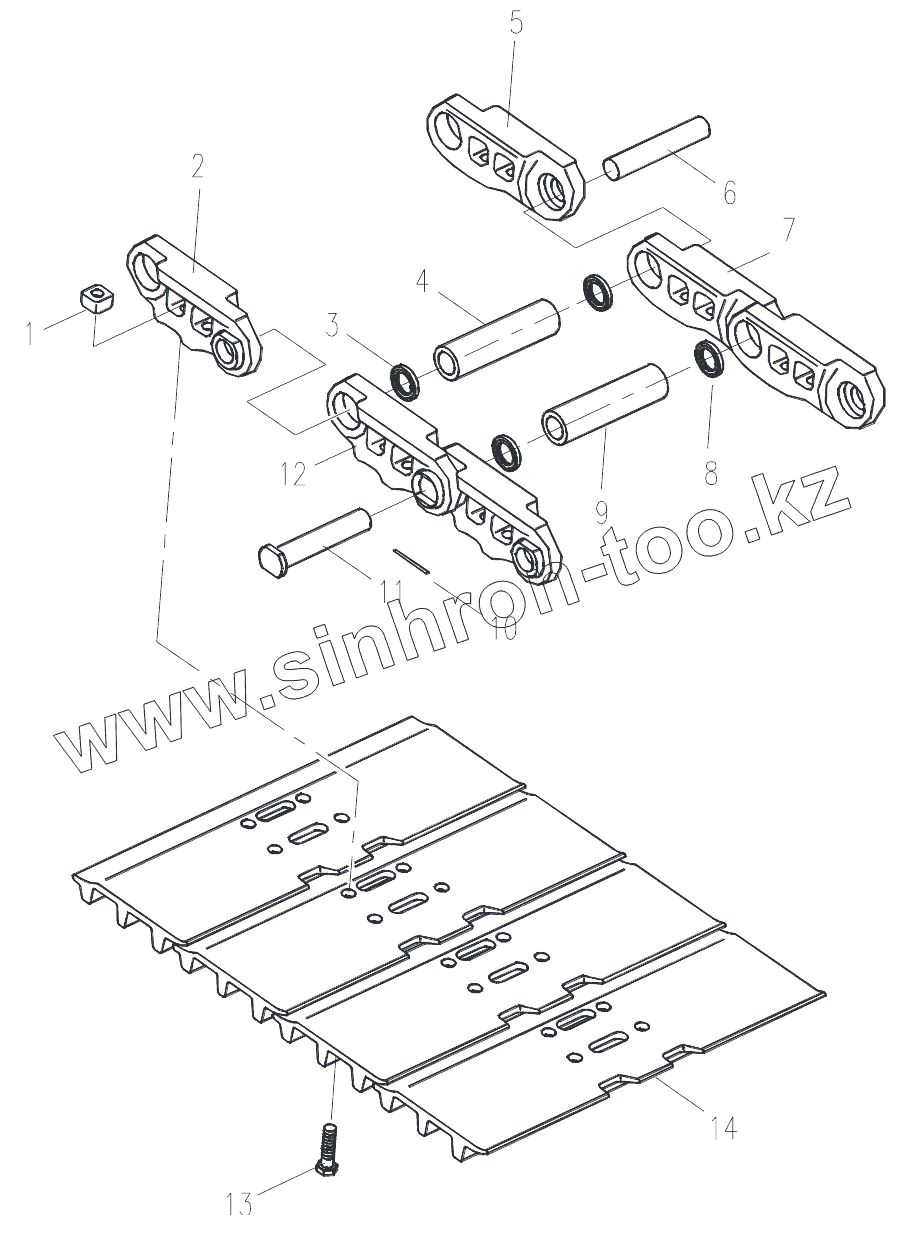

Каталог запасных частей к технике: LiuGong CLG-920E. 25C0721 001 TRACK AS
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CLG 425 (2010)
CLG 777A-S (2010)
CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016)
CLG-220 (2008)
CLG-225 (2008)
CLG-365A (2012)
CLG-375 (2008)
CLG-375A (2008)
CLG-385A (2008)
CLG-4165 (2015)
CLG-418 (2008)
CLG-4215 (2010)
CLG-612 (2008)
CLG-614 (2010)
CLG-618 (2010)
CLG-626R
CLG-766 (2015)
CLG-766A (2012)
CLG-816G (2012)
CLG-835
CLG-835 (2015)
CLG-835H (2015)
CLG-836 (2015)
CLG-842
CLG-842
CLG-842 (2015)
CLG-855N (2015)
CLG-856 (2015)
CLG-856H (2015)
CLG-856I
CLG-862 (2015)
CLG-877 (2015)
CLG-888 (2015)
CLG-904С (2007)
CLG-915D
CLG-915D
CLG-920D
CLG-920E (2015)
CLG-922D
CLG-922LC
CLG-922LC (2008)
CLG-925 (2015)
CLG-925D (2015)
CLG-933E (2010)
CLG-B160 (2010)
Схема
>
Не выбрано
48Y0270 SIGN GP
34E0139 (A) REVOLVING FRAME AS
34E0139 (B) REVOLVING FRAME AS
00Y0250 000 ENGINE SYSTEM
40C3489 004 COOLING SYSTEM
40C3489 (A) FAN SUPPORT
40C3489 (B) SHROUD
20C1241 000 RADIATOR GP
40C3489 (C) CANTEEN SUPPORT
40C3489 (D) RADIATOR SUPPORT
40C3477 004 INTAKE AND EXHAUST SYSTEM
40C3477 (A) AIR CLEANER SUPPORT
40C3477 (B) MUFFLER
40C5473 000 DIESEL ENGINE
40C3479 003 ENGINE MOUNTING
40C3479 (A) FILTER OIL SUPPORT
40C3479 (B) FLANGE SUPPORT
40C3479 (C) ENGINE SUPPORT
40C5521 001 FUEL SYSTEM
40C5521 (A) FUEL PIPING
21C0616 001 FUEL TANK
40C5521 (B) FUEL FILTER SUPPORT
40C5521 (C) FILTER
15E0632 002 HYDRAULIC SYSTEM
15E0575 008 MAIN HYDRAULIC SYSTEM
15E0575 (A) MAIN HYDRAULIC SYSTEM-PUMP PIPINGS
11C0885 002 PUMP
11C0590 002 PUMP GEAR
15C0287 001 REGULATOR
12C3505 001 SOLENOID VALVE
11C1469 000 PUMP AS
21C0605 002 HYDRAULIC OIL TANK
15E0575 (B) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS A
12C3668 002 MAIN CONTROL VALVE
15E0575 (C) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS B
15E0575 (D) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS C
15E0575 (E) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS D
15E0575 (F) MAIN HYDRAULIC SYSTEM-SWING MOTOR & REDUCTION PIPINGS
11C0587 003 SWING MOTOR&REDUCTION GEAR
15E0575 (G) HYDRAULIC SYSTEM-RETURN OIL SYSTEM PIPINGS
13E0067 004 TRAVEL HYDRAULIC SYSTEM
11C0887 000 TRAVEL MOTOR AND REDUCTION GEAR
12C0240 004 SWIVEL JOINT
12E0255 004 PILOT HYDRAULIC SYSTEM
12E0255 (A) UPPER STRUCTURE PILOT CIRCUIT (LH)
12C3519 000 HAND PILOT VALVE
12E0255 (B) UPPER STRUCTURE PILOT CIRCUIT (RH)
12E0255 (C) TRAVEL FUNCTION PILOT CIRCUIT
12C2151 002 FOOT PILOT VALVE
12E0255 (D) OIL INLET AND OUTLET CIRCUIT
12E0255 (E) PILOT HYDRAULIC SYSTEM (E)
12E0255 (F) PILOT HYDRAULIC SYSTEM (F)
12Y0020 004 PILOT HYDRAULIC SYSTEM
12Y0020 (A) UPPER STRUCTURE PILOT CIRCUIT (LH)
12Y0020 (B) UPPER STRUCTURE PILOT CIRCUIT (RH)
12Y0020 (C) TRAVEL FUNCTION PILOT CIRCUIT
12Y0020 (D) OIL INLET AND OUTLET CIRCUIT
12Y0020 (E) PILOT HYDRAULIC SYSTEM
12Y0020 (F) PILOT HYDRAULIC SYSTEM
22Y0459 000 ELECTRICAL SYSTEM
46C9369 000 FRAME WIRING AS
46C6273 003 CONTROL BOX AS
46C9369 (A) FRAME WIRING AS
46C9369 (B) FRAME WIRING AS
46C9369 (C) FRAME WIRING AS
46C9369 (D) FRAME WIRING AS
46C9369 (E) FRAME WIRING AS
46C9369 (F) FRAME WIRING AS
46C9369 (G) FRAME WIRING AS
46C2761 000 CAB WIRING AS
46C2761 (A) CAB WIRING AS
46C2761 (B) CAB WIRING AS
46C2761 (C) CAB WIRING AS
46C2761 (D) CAB WIRING AS
46C6531 001 CONSOLE AS-LH
46C6462 001 CONSOLE AS-RH
23E0442 (A) AIR CONDITIONING SYSTEM
46C5189 000 EVAPORATOR AS
23E0442 (B) AIR CONDITIONING SYSTEM
23E0442 (C) AIR CONDITIONING SYSTEM
46C3629 002 CONDENSER
23E0442 (D) AIR CONDITIONING SYSTEM
46C2129 000 COMPRESSOR BRACKET AS
23E0442 (E) AIR CONDITIONING SYSTEM
46C7208 000 WATER HOSE
46C7257 000 WATER HOSE
32E1750 002 WORK IMPLEMENT SYSTEM
43C3699 001 BOOM
43C3698 000 ARM
43C3737 000 LINK
43C1585 001 LINK
00C2288 000 GREASE LINES GP
43C4847 000 BUCKET
33Y0057 000 TRACK AS
25C0721 001 TRACK AS
44C0640 002 TENSIONER
41E0602 000 CAB AS
47C2033 002 CAB (WITH DECORATION AND GUARD)
47C1897 000 CAB (WITH DECORATION)
47C1898 000 CAB GP
47C1898 CAB IN ASSY (A)
47C1338 001 DOOR GP
47C1341 001 WINDOW GP
47C1344 000 WINDOW
47C1343 000 WINDOW
47C1898 CABIN ASSY (B)
47C1349 000 DECORATION AS
47C1837 005 FLOOR PLATE AS
47C1250 002 SEAT AS
34C1706 001 CONSOLE AS-RH
34C1707 002 CONSOLE AS-LH
47C1775 001 SEAT
44Y0056 001 ENGINE HOOD AS
27C0494 001 TOOL KIT
48C1936 002 ENGINE HOOD
27C0517 002 COUNTERWEIGHT GP
44Y0050 001 ENGINE HOOD AS
48C1933 002 DOOR-RH
44Y0057 001 ENGINE HOOD AS
48C1935 003 DOOR-LH
48C1934 004 DOOR-LH
47Y0089 000 ATTACHMENT AND OIL SPECIFICATION
50B0356 000 SPARE PARTS
45E0052 003 SPARE TOOL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
03B1492
Nut
2
72A1735
Track link-lh
3
80A0819
Seal ring
4
55A4629
Pin bushing
5
72A1734
Track link-rh
6
60A2776
Pin
7
72A1732
Master link-rh
8
80A0818
Seal
9
55A4630
Pin bushing
10
08B0444
Cotter pin
11
60A2775
Chain link
12
72A1733
Master link-lh
13
02B0393
Bolt
14
26A3414
Track shoe
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
