Каталог запасных частей к технике: LiuGong CLG-920E. 23E0442 (B) AIR CONDITIONING SYSTEM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 48Y0270 SIGN GP 34E0139 (A) REVOLVING FRAME AS 34E0139 (B) REVOLVING FRAME AS 00Y0250 000 ENGINE SYSTEM 40C3489 004 COOLING SYSTEM 40C3489 (A) FAN SUPPORT 40C3489 (B) SHROUD 20C1241 000 RADIATOR GP 40C3489 (C) CANTEEN SUPPORT 40C3489 (D) RADIATOR SUPPORT 40C3477 004 INTAKE AND EXHAUST SYSTEM 40C3477 (A) AIR CLEANER SUPPORT 40C3477 (B) MUFFLER 40C5473 000 DIESEL ENGINE 40C3479 003 ENGINE MOUNTING 40C3479 (A) FILTER OIL SUPPORT 40C3479 (B) FLANGE SUPPORT 40C3479 (C) ENGINE SUPPORT 40C5521 001 FUEL SYSTEM 40C5521 (A) FUEL PIPING 21C0616 001 FUEL TANK 40C5521 (B) FUEL FILTER SUPPORT 40C5521 (C) FILTER 15E0632 002 HYDRAULIC SYSTEM 15E0575 008 MAIN HYDRAULIC SYSTEM 15E0575 (A) MAIN HYDRAULIC SYSTEM-PUMP PIPINGS 11C0885 002 PUMP 11C0590 002 PUMP GEAR 15C0287 001 REGULATOR 12C3505 001 SOLENOID VALVE 11C1469 000 PUMP AS 21C0605 002 HYDRAULIC OIL TANK 15E0575 (B) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS A 12C3668 002 MAIN CONTROL VALVE 15E0575 (C) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS B 15E0575 (D) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS C 15E0575 (E) MAIN HYDRAULIC SYSTEM-MAIN CONTROL VALVE PIPINGS D 15E0575 (F) MAIN HYDRAULIC SYSTEM-SWING MOTOR & REDUCTION PIPINGS 11C0587 003 SWING MOTOR&REDUCTION GEAR 15E0575 (G) HYDRAULIC SYSTEM-RETURN OIL SYSTEM PIPINGS 13E0067 004 TRAVEL HYDRAULIC SYSTEM 11C0887 000 TRAVEL MOTOR AND REDUCTION GEAR 12C0240 004 SWIVEL JOINT 12E0255 004 PILOT HYDRAULIC SYSTEM 12E0255 (A) UPPER STRUCTURE PILOT CIRCUIT (LH) 12C3519 000 HAND PILOT VALVE 12E0255 (B) UPPER STRUCTURE PILOT CIRCUIT (RH) 12E0255 (C) TRAVEL FUNCTION PILOT CIRCUIT 12C2151 002 FOOT PILOT VALVE 12E0255 (D) OIL INLET AND OUTLET CIRCUIT 12E0255 (E) PILOT HYDRAULIC SYSTEM (E) 12E0255 (F) PILOT HYDRAULIC SYSTEM (F) 12Y0020 004 PILOT HYDRAULIC SYSTEM 12Y0020 (A) UPPER STRUCTURE PILOT CIRCUIT (LH) 12Y0020 (B) UPPER STRUCTURE PILOT CIRCUIT (RH) 12Y0020 (C) TRAVEL FUNCTION PILOT CIRCUIT 12Y0020 (D) OIL INLET AND OUTLET CIRCUIT 12Y0020 (E) PILOT HYDRAULIC SYSTEM 12Y0020 (F) PILOT HYDRAULIC SYSTEM 22Y0459 000 ELECTRICAL SYSTEM 46C9369 000 FRAME WIRING AS 46C6273 003 CONTROL BOX AS 46C9369 (A) FRAME WIRING AS 46C9369 (B) FRAME WIRING AS 46C9369 (C) FRAME WIRING AS 46C9369 (D) FRAME WIRING AS 46C9369 (E) FRAME WIRING AS 46C9369 (F) FRAME WIRING AS 46C9369 (G) FRAME WIRING AS 46C2761 000 CAB WIRING AS 46C2761 (A) CAB WIRING AS 46C2761 (B) CAB WIRING AS 46C2761 (C) CAB WIRING AS 46C2761 (D) CAB WIRING AS 46C6531 001 CONSOLE AS-LH 46C6462 001 CONSOLE AS-RH 23E0442 (A) AIR CONDITIONING SYSTEM 46C5189 000 EVAPORATOR AS 23E0442 (B) AIR CONDITIONING SYSTEM 23E0442 (C) AIR CONDITIONING SYSTEM 46C3629 002 CONDENSER 23E0442 (D) AIR CONDITIONING SYSTEM 46C2129 000 COMPRESSOR BRACKET AS 23E0442 (E) AIR CONDITIONING SYSTEM 46C7208 000 WATER HOSE 46C7257 000 WATER HOSE 32E1750 002 WORK IMPLEMENT SYSTEM 43C3699 001 BOOM 43C3698 000 ARM 43C3737 000 LINK 43C1585 001 LINK 00C2288 000 GREASE LINES GP 43C4847 000 BUCKET 33Y0057 000 TRACK AS 25C0721 001 TRACK AS 44C0640 002 TENSIONER 41E0602 000 CAB AS 47C2033 002 CAB (WITH DECORATION AND GUARD) 47C1897 000 CAB (WITH DECORATION) 47C1898 000 CAB GP 47C1898 CAB IN ASSY (A) 47C1338 001 DOOR GP 47C1341 001 WINDOW GP 47C1344 000 WINDOW 47C1343 000 WINDOW 47C1898 CABIN ASSY (B) 47C1349 000 DECORATION AS 47C1837 005 FLOOR PLATE AS 47C1250 002 SEAT AS 34C1706 001 CONSOLE AS-RH 34C1707 002 CONSOLE AS-LH 47C1775 001 SEAT 44Y0056 001 ENGINE HOOD AS 27C0494 001 TOOL KIT 48C1936 002 ENGINE HOOD 27C0517 002 COUNTERWEIGHT GP 44Y0050 001 ENGINE HOOD AS 48C1933 002 DOOR-RH 44Y0057 001 ENGINE HOOD AS 48C1935 003 DOOR-LH 48C1934 004 DOOR-LH 47Y0089 000 ATTACHMENT AND OIL SPECIFICATION 50B0356 000 SPARE PARTS 45E0052 003 SPARE TOOL

1

2

2

3

4

5

6

7

8

9

9

10

10

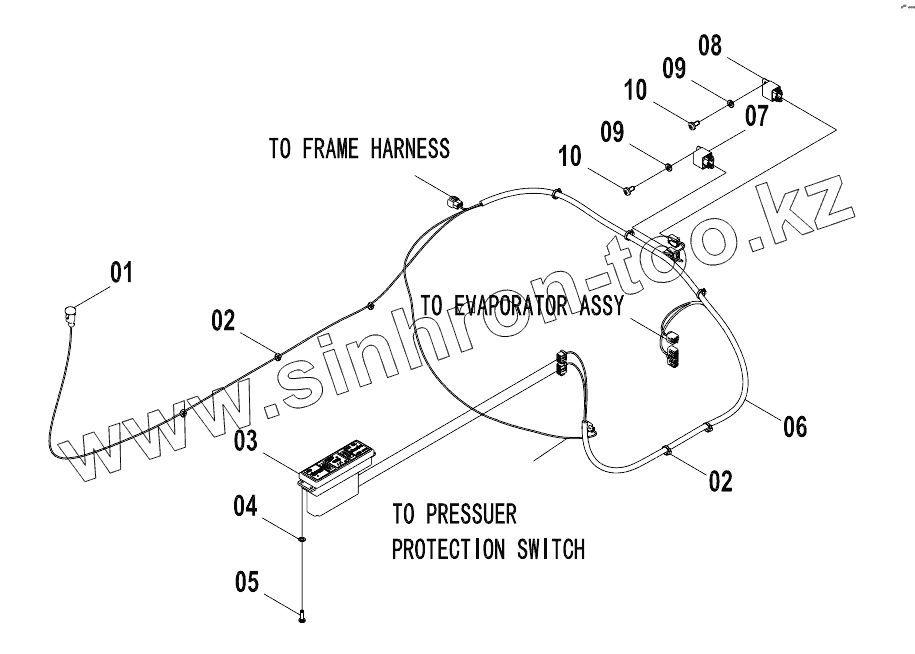

Позиция на иллюстрации	Заводской номер детали		Название детали
1	46C0759		Фотодатчик
2	37B0004		Хомут
3	46C0761		Панель операционная
4	06B0066		WASHER
5	04B0066		SCREW
6	46C4246		A/C HARNESS
7	31B0071		Реле главное
8	31B0070		Реле компрессора
9	06B0024		WASHER
10	04B0056		Винт

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
