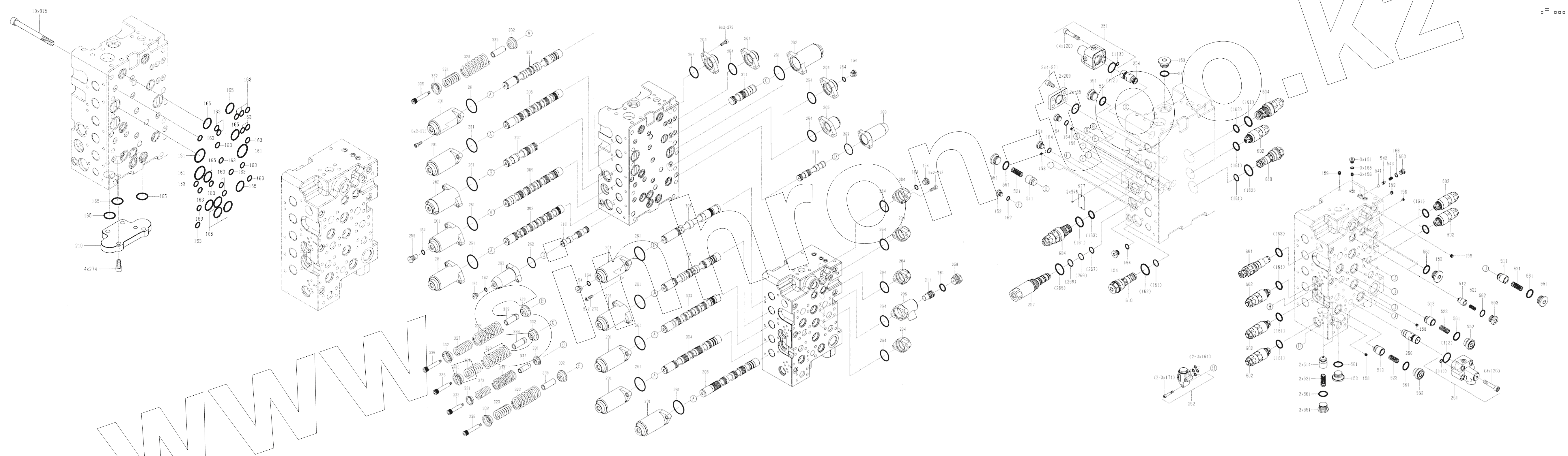

Каталог запасных частей к технике: LiuGong CLG-920E. 12C3668 002 MAIN CONTROL VALVE
151
151
152
152
153
153
153
153
154
154
154
154
154
154
154
156
158
158
158
158
158
159
159
159
161
161
161
161
161
161
161
161
161
161
161
161
161
162
162
162
163
163
163
163
163
163
163
163
163
163
163
163
163
163
163
163
163
163
163
164
164
164
164
164
164
164
165
165
165
165
165
165
165
165
165
165
166
168
201
201
201
201
201
201
201
201
201
202
202
203
203
204
204
204
204
204
204
204
205
206
210
211
251
251
252
254
256
257
258
259
261
261
261
261
261
261
261
261
261
261
261
262
262
262
264
264
264
264
264
264
264
264
264
273
273
273
273
274
301
301
302
303
304
305
306
307
308
309
310
310
311
320
320
321
322
323
326
327
329
331
331
332
332
332
332
332
332
332
332
333
335
335
335
335
336
336
337
339
339
372
373
511
511
512
513
513
514
521
521
521
522
523
523
541
542
543
550
551
551
551
551
552
552
553
561
561
561
561
561
561
561
561
561
561
562
601
602
602
602
602
602
602
604
604
610
610
975
977
978
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 101 | 78A0444 | Valve body | |
| 102 | 78A0445 | Valve body | |
| 151 | 05A0396 | Plug | |
| 151 | 03B0897 | Plug | |
| 152 | 05A0470 | Plug | |
| 153 | 05A0248 | Заглушка | |
| 153 | 05A0348 | Plug | |
| 154 | 05A0250 | Заглушка | |
| 154 | 05A0250 | Заглушка | |
| 156 | 65A0184 | Throttle valve | |
| 158 | 05A0112 | Plug | |
| 159 | 05A0251 | Заглушка | |
| 161 | 12B1865 | O-ring | |
| 162 | 12B0962 | O-RING | |
| 163 | 12B1088 | O-RING | |
| 164 | 12B0904 | O-RING | |
| 165 | 12B0905 | O-ring | |
| 166 | 12B0907 | O-ring | |
| 168 | 12B0981 | O-ring | |
| 201 | 78A0446 | SPRING COVER | |
| 202 | 78A0447 | SPRING COVER | |
| 203 | 78A0448 | SPRING COVER | |
| 204 | 53A0592 | VALVE CAP | |
| 205 | 53A0662 | VALVE CAP | |
| 206 | 53A1574 | VALVE CAP | |
| 209 | 04A0731 | Flange | |
| 210 | 72A182 | Plate | |
| 211 | 50A0578 | PISTON | |
| 251 | 12C3276 | Valve | |
| 252 | 12C3277 | Valve | |
| 254 | 53A1785 | Valve cap | |
| 256 | 53A1786 | Valve cap | |
| 257 | 12C3278 | Valve | |
| 258 | 05A0914 | PLUG | |
| 259 | 05A0915 | PLUG | |
| 261 | 12B1866 | O-ring | |
| 262 | 12B0911 | O-ring | |
| 264 | 12B0912 | O-ring | |
| 273 | 04B0498 | HEX SCREW | |
| 274 | 04B0929 | Hex screw | |
| 301 | 65A0525 | Spool | |
| 302 | 65A0579 | Arm spool1 gp | |
| 303 | 65A0580 | Boom spool | |
| 304 | 65A0581 | Bucket spool gp | |
| 305 | 65A0541 | Spool | |
| 306 | 65A0582 | Arm spool2 gp | |
| 307 | 65A0583 | Boom spool 1 component | |
| 308 | 65A0518 | SPOOL | |
| 309 | 65A0517 | SPOOL | |
| 310 | 65A0516 | SPOOL | |
| 311 | 65A0543 | Spool | |
| 320 | 75A0274 | Spring | |
| 321 | 75A0275 | Spring | |
| 322 | 10B0311 | Spring | |
| 323 | 10B0312 | Spring | |
| 326 | 75A0357 | Spring | |
| 327 | 75A0358 | Spring | |
| 328 | 75A0751 | Spring | |
| 329 | 75A0224 | Spring | |
| 331 | 56A0457 | Bracket | |
| 332 | 56A0458 | Bracket | |
| 333 | 04B0564 | Scrwe | |
| 335 | 55A1677 | Block | |
| 336 | 05B0126 | Bolt | |
| 337 | 55A4943 | Thrust shim | |
| 339 | 55A1681 | Block | |
| 372 | 10B0313 | Spring | |
| 373 | 10B0314 | Spring | |
| 511 | 65A0187 | Poppet | |
| 512 | 65A0274 | Poppet | |
| 513 | 65A0189 | Poppet | |
| 514 | 65A0526 | Spool | |
| 521 | 75A0281 | Spring | |
| 522 | 10B0315 | Spring | |
| 523 | 75A0282 | Spring | |
| 541 | 55A1669 | Steel ball | |
| 542 | 65A0370 | Spool | |
| 543 | 75A0532 | Spring | |
| 550 | 03B0723 | Plug | |
| 551 | 05A0352 | Plug | |
| 552 | 05A0353 | Plug | |
| 553 | 05A0476 | Plug | |
| 561 | 12B0913 | O-ring | |
| 562 | 12B0965 | O-RING | |
| 601 | 12C3280 | Relief valve | |
| 602 | 12C3281 | RELIEF VALVE | |
| 604 | 12C3284 | RELIEF VALVE | |
| 610 | 12C3282 | RELIEF VALVE | |
| 971 | 04B0501 | HEX SCREW | |
| 975 | 04B0970 | Screw | |
| 977 | 74A5792 | Nameplate | |
| 978 | 66A0112 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
