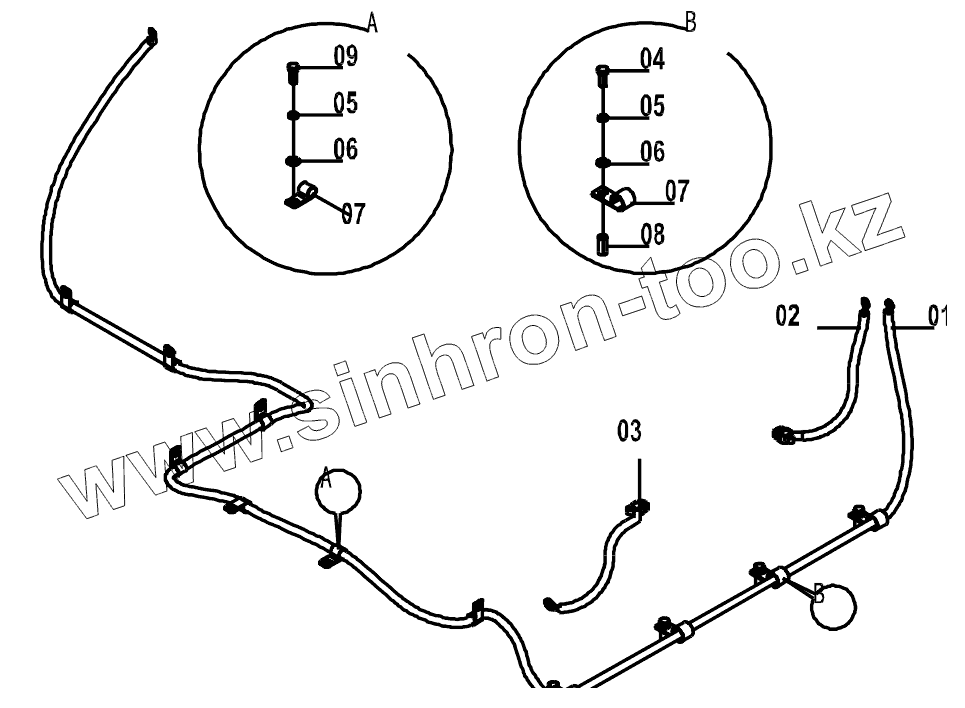

Каталог запасных частей к технике: LiuGong CLG-915D. 46C6347 FRAME WIRING AS (G)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 45E1153 001 DECAL GROUP 45E1153 001 DECAL GROUP 34E0101 003 REVOLVING FRAME AS 34E0133 000 REVOLVING FRAME AS 00E0669 000 ENGINE SYSTEM 00E0931 000 ENGINE SYSTEM 40C2106 001 INTAKE AND EXHAUST SYSTEM 40C2106 INTAKE AND EXHAUST SYSTEM (A) 40C2106 INTAKE AND EXHAUST SYSTEM (B) 40C2107 006 COOLING SYSTEM 40C2107 COOLING SYSTEM (A) 40C2107 COOLING SYSTEM (B) 40C2107 COOLING SYSTEM (C) 20C0758 002 RADIATOR GP 20C0758 RADIATOR GP (A) 20C0758 RADIATOR GP (B) 20C1031 004 RADIATOR GP 20C1031 RADIATOR GP (A) 20C1031 RADIATOR GP (B) 20C1031 RADIATOR GP (C) 40C2105 001 ENGINE MOUNTING 40C2105 ENGINE MOUNTING (A) 40C2105 ENGINE MOUNTING (B) 40C1588 003 DIESEL ENGINE 40C2108 005 FUEL LINES GP 40C2108 FUEL LINES GP (A) 40C2108 FUEL LINES GP (B) 40C3092 003 FUEL SYSTEM 40C3092 FUEL SYSTEM (A) 40C3092 FUEL SYSTEM (B) 21C0439 000 FUEL TANK 21C0535 000 FUEL TANK 21C0563 000 FUEL TANK 15E0664 000 HYDRAULIC SYSTEM 15E0993 000 HYDRAULIC SYSTEM 15E0991 000 HYDRAULIC SYSTEM 15Y0009 000 HYDRAULIC SYSTEM 11E0604 003 ATTACHMENT WORK LINES 11E0604 ATTACHMENT WORK LINES (A) 11E0604 ATTACHMENT WORK LINES (B) 11E0494 005 WORK IMPLEMENT LINES AS 11E0494 WORK IMPLEMENT LINES AS (A) 11E0494 WORK IMPLEMENT LINES AS (B) 11E0494 WORK IMPLEMENT LINES AS (C) 11E0494 WORK IMPLEMENT LINES AS (D) 11E0847 006 WORK IMPLEMENT LINES AS 11E0847 WORK IMPLEMENT LINES AS (A) 11E0847 WORK IMPLEMENT LINES AS (B) 11E0847 WORK IMPLEMENT LINES AS (C) 11E0847 WORK IMPLEMENT LINES AS (D) 11E0847 WORK IMPLEMENT LINES AS (E) 11E0847 WORK IMPLEMENT LINES AS (F) 11E0847 WORK IMPLEMENT LINES AS (G) 10C1482 001 BOOM CYLINDER AS-LH 10C1847 000 BOOM CYLINDER-LH 10C1847 BOOM CYLINDER-LH (A) 10C1847 BOOM CYLINDER-LH (B) 88A1060 000 SEAL KIT 10C1483 001 BOOM CYLINDER AS-RH 10C1183 000 BOOM CYLINDER 10C1848 000 BOOM CYLINDER-RH 10C1848 BOOM CYLINDER AS-RH (A) 10C1848 BOOM CYLINDER AS-RH (B) 12E0164 011 PILOT HYDRAULIC SYSTEM 12E0164 PILOT HYDRAULIC SYSTEM (A) 12E0164 PILOT HYDRAULIC SYSTEM (B) 12E0164 PILOT HYDRAULIC SYSTEM (C) 12E0164 PILOT HYDRAULIC SYSTEM (D) 12E0164 PILOT HYDRAULIC SYSTEM (E) 12E0164 PILOT HYDRAULIC SYSTEM (F) 12E0164 PILOT HYDRAULIC SYSTEM (G) 12E0164 PILOT HYDRAULIC SYSTEM (H) 12E0164 PILOT HYDRAULIC SYSTEM (I) 12E0164 PILOT HYDRAULIC SYSTEM (J) 12E0164 PILOT HYDRAULIC SYSTEM (K) 12E0164 PILOT HYDRAULIC SYSTEM (L) 12E0187 008 PILOT HYDRAULIC SYSTEM 12E0187 PILOT HYDRAULIC SYSTEM (A) 12E0187 PILOT HYDRAULIC SYSTEM (B) 12E0187 PILOT HYDRAULIC SYSTEM (C) 12E0187 PILOT HYDRAULIC SYSTEM (D) 12E0187 PILOT HYDRAULIC SYSTEM (E) 12E0187 PILOT HYDRAULIC SYSTEM (F) 12E0187 PILOT HYDRAULIC SYSTEM (G) 12E0187 PILOT HYDRAULIC SYSTEM (H) 12E0187 PILOT HYDRAULIC SYSTEM (I) 12E0187 PILOT HYDRAULIC SYSTEM (J) 12E0187 PILOT HYDRAULIC SYSTEM (K) 12E0187 PILOT HYDRAULIC SYSTEM (L) 12E0237 003 PILOT HYDRAULIC SYSTEM 12E0237 PILOT HYDRAULIC SYSTEM (A) 12E0237 PILOT HYDRAULIC SYSTEM (B) 12E0237 PILOT HYDRAULIC SYSTEM (C) 12E0237 PILOT HYDRAULIC SYSTEM (D) 12E0237 PILOT HYDRAULIC SYSTEM (E) 12E0237 PILOT HYDRAULIC SYSTEM (F) 12E0237 PILOT HYDRAULIC SYSTEM (G) 12E0237 PILOT HYDRAULIC SYSTEM (H) 12E0237 PILOT HYDRAULIC SYSTEM (I) 12E0237 PILOT HYDRAULIC SYSTEM (J) 12EРћ237 PILOT HYDRAULIC SYSTEM (K) 12E0237 PILOT HYDRAULIC SYSTEM (L) 12C1560 001 SIGNAL VALVE 12C1567 000 PILOT VALVE GP 15E0665 008 MAIN HYDRAULIC SYSTEM 15E0665 MAIN HYDRAULIC SYSTEM (A) 15E0665 MAIN HYDRAULIC SYSTEM (B) 15E0665 MAIN HYDRAULIC SYSTEM (C) 15E0665 MAIN HYDRAULIC SYSTEM (D) 15E0665 MAIN HYDRAULIC SYSTEM (E) 15E0665 MAIN HYDRAULIC SYSTEM (F) 15E0665 MAIN HYDRAULIC SYSTEM (G) 15E0817 007 MAIN HYDRAULIC SYSTEM 15E0817 MAIN HYDRAULIC SYSTEM (A) 15E0817 MAIN HYDRAULIC SYSTEM (B) 15E0817 MAIN HYDRAULIC SYSTEM (C) 15E0817 MAIN HYDRAULIC SYSTEM (D) 15E0817 MAIN HYDRAULIC SYSTEM (E) 15E0817 MAIN HYDRAULIC SYSTEM (F) 15E0817 MAIN HYDRAULIC SYSTEM (G) 12C1735 000 MAIN CONTROL VALVE 12C1735 000 MAIN CONTROL VALVE 12C1735 000 MAIN CONTROL VALVE 11C1016 001 PUMP 12C2909 000 PRESSURE REDUCING VALVE 15C0361 000 REGULATOR 11C0580 001 MAIN PUMP AS 21C0429 001 HYDRAULIC OIL TANK 21C0524 002 HYDRAULIC OIL TANK 11C1095 001 SWING MOTOR 11C1191 000 SWING MOTOR 41C1096 000 REDUCTION GEAR 15E0697 004 ATTACHMENT PLATFORM LINES 15E0818 002 ATTACHMENT PLATFORM LINES 13E0076 001 TRAVEL HYDRAULIC SYSTEM 12C0240 001 ROTARY CONNECTION 11C0347 001 TRAVEL MOTOR 42C0278 001 REDUCTION GEAR 11C0787 000 MOTOR 88A0859 000 SEAL KIT 12E0123 001 ATTACHMENT PILOT LINES 12E0189 000 ATTACHMENT PILOT LINES 12C0256 001 FOOT PILOT VALVE 12E0238 001 QUICK COUPLER WIRING AS 12E0238 QUICK COUPLER WIRING AS (A) 12E0238 QUICK COUPLER WIRING AS (B) 12E0238 QUICK COUPLER WIRING AS (C) 12E0238 QUICK COUPLER WIRING AS (D) 22E1320 001 ELECTRICAL SYSTEM 22E1315 001 ELECTRICAL SYSTEM 22E1580 000 ELECTRICAL SYSTEM 46C5542 007 FRAME WIRING AS 46C5542 FRAME WIRING AS (A) 46C5542 FRAME WIRING AS (B) 46C5542 FRAME WIRING AS (C) 46C5542 FRAME WIRING AS (D) 46C5542 FRAME WIRING AS (E) 46C5542 FRAME WIRING AS (F) 46C5542 FRAME WIRING AS (G) 46C6347 003 FRAME WIRING AS 46C6347 FRAME WIRING AS (A) 46C6347 FRAME WIRING AS (B) 46C6347 FRAME WIRING AS (C) 46C6347 FRAME WIRING AS (D) 46C6347 FRAME WIRING AS (E) 46C6347 FRAME WIRING AS (F) 46C6347 FRAME WIRING AS (G) 46C5546 000 CONTROL BOX 46C5545 001 FLOOR PLATE WIRING AS 46C5543 003 ENGINE WIRING AS 46C5543 ENGINE WIRING AS (A) 46C5543 ENGINE WIRING AS (B) 46C5543 ENGINE WIRING AS (C) 46C6894 000 ENGINE WIRING AS 46C6894 ENGINE WIRING AS (A) 46C6894 ENGINE WIRING AS (B) 46C6894 ENGINE WIRING AS (C) 46C5544 005 CAB WIRING AS 46C5544 CAB WIRING AS (A) 46C5544 CAB WIRING AS (B) 46C5544 CAB WIRING AS (C) 46C5544 CAB WIRING AS (D) 46C5544 CAB WIRING AS (E) 46C3649 001 ROTATING BEACON WIRING AS 46C5400 000 TRAVEL ALARM WIRING AS 46C5641 000 REVOLVING ALARM WIRING AS 23E0311 007 AIR CONDITIONING SYSTEM 23E0311 AIR CONDITIONING SYSTEM (A) 23E0311 AIR CONDITIONING SYSTEM (B) 23E0311 AIR CONDITIONING SYSTEM (C) 23E0311 AIR CONDITIONING SYSTEM (D) 23E0311 AIR CONDITIONING SYSTEM (E) 23E0311 AIR CONDITIONING SYSTEM (F) 46C5189 000 EVAPORATOR AS 46C3616 001 MOUNTING BRACKET 46C5028 000 COMPRESSOR BRACKET AS 46C3629 001 CONDENSER 32E1033 004 WORK IMPLEMENT SYSTEM 32E1033 WORK IMPLEMENT SYSTEM (A) 32E1033 WORK IMPLEMENT SYSTEM (B) 32E1033 WORK IMPLEMENT SYSTEM (C) 32E1322 002 EQUIPMENT 32E1322 EQUIPMENT (A) 32E1322 EQUIPMENT (B) 32E1322 EQUIPMENT (C) 32E1327 003 WORK IMPLEMENT SYSTEM 32E1327 WORK IMPLEMENT SYSTEM (A) 32E1327 WORK IMPLEMENT SYSTEM (B) 32E1327 WORK IMPLEMENT SYSTEM (C) 43C1873 000 BOOM 43C2656 000 BOOM 00C1689 000 GREASE LINES GP 00C2551 000 GREASE LINES GP 43C1542 001 ARM 43C2634 000 ARM 24C0655 001 LINK 43C1538 000 BUCKET 43C3463 000 BUCKET 33E0110 001 UNDERCARRIAGE SYSTEM 33E0110 TRACK FRAME 33E0110(B) SWING BEARING 33E0110(C) LOWER ROLLER 33E0110(D) IDLER AS 33E0110(E) IDLER AS 33E0110(F) SPROCKET 33E0146 001 UNDERCARRIAGE SYSTEM 33E0146(A) TRACK FRAME 33E0146(B) SWING BEARING 33E0146(C) LOWER ROLLER 33E0146(D) CARRIER ROLLER 33E0146(E) INDLER AS 33E0146(F) SPROCKET 33E0173 000 UNDERCARRIAGE SYSTEM 33E0173 (A) TRACK FRAME 33E0173 (B) SWING BEARING 33E0173 (C) LOWER ROLLER 33E0173 (D) CARRIER ROLLER 33E0173 (E) INDLER AS 33E0173 (F) SPROCKET 25C0091 000 TRACK AS 44C0203 001 TENSIONER 41E0493 001 CAB AS 41E0592 000 CAB AS 41E0395 001 CAB AS 41Y0011 000 CAB AS 47C2083 000 CAB (WITH DECORATION & GUARD) 47C1491 000 CAB (WITH DECORATION & GUARD) 47C1497 000 CAB (WITH DECORATION) 47C1498 000 CABIN ASSY 47C1498 CABIN ASSY (A) 47C1498 CABIN ASSY (B) 47C1498 CABIN ASSY (C) 47C1498 CABIN ASSY (D) 47C1498 CABIN ASSY (E) 47C1154 001 DECORATION AS 47C1316 003 FLOOR PLATE AS 47C1850 002 FLOOR PLATE AS 47C2023 000 FLOOR PLATE AS 47C1074 001 SEAT AS 47C1669 000 SEAT AS 34C1389 001 CONSOLE AS-RH 34C1388 001 CONSOLE AS-LH 47C1048 001 SEAT 44E0357 006 ENGINE HOOD AS 44E0357 ENGINE HOOD AS (A) 44E0357 ENGINE HOOD AS (B) 44E0357 ENGINE HOOD AS (C) 44E0357 ENGINE HOOD AS (D) 44E0357 ENGINE HOOD AS (E) 44E0357 ENGINE HOOD AS (F) 48C1177 000 DOOR-RH 48C1176 000 SIDE DOOR-LH 27C0277 000 TOOL KIT 48C1244 002 ENGINE HOOD 47E0471 000 ATTACHMENT AND OIL SPECIFICATION 47E0576 000 ATTACHMENT AND OIL SPECIFICATION

1

2

3

4

5

5

6

6

7

7

8

9

Позиция на иллюстрации	Заводской номер детали		Название детали
1	08C3867		CABLE
2	08C3145		CABLE
3	08C3144		CABLE
4	00B0029		Болт
5	06B0002		Шайба
6	06B0001		WASHER
7	20A1855		Хомут
8	34A0559		PIPE
9	00B0005		BOLT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
