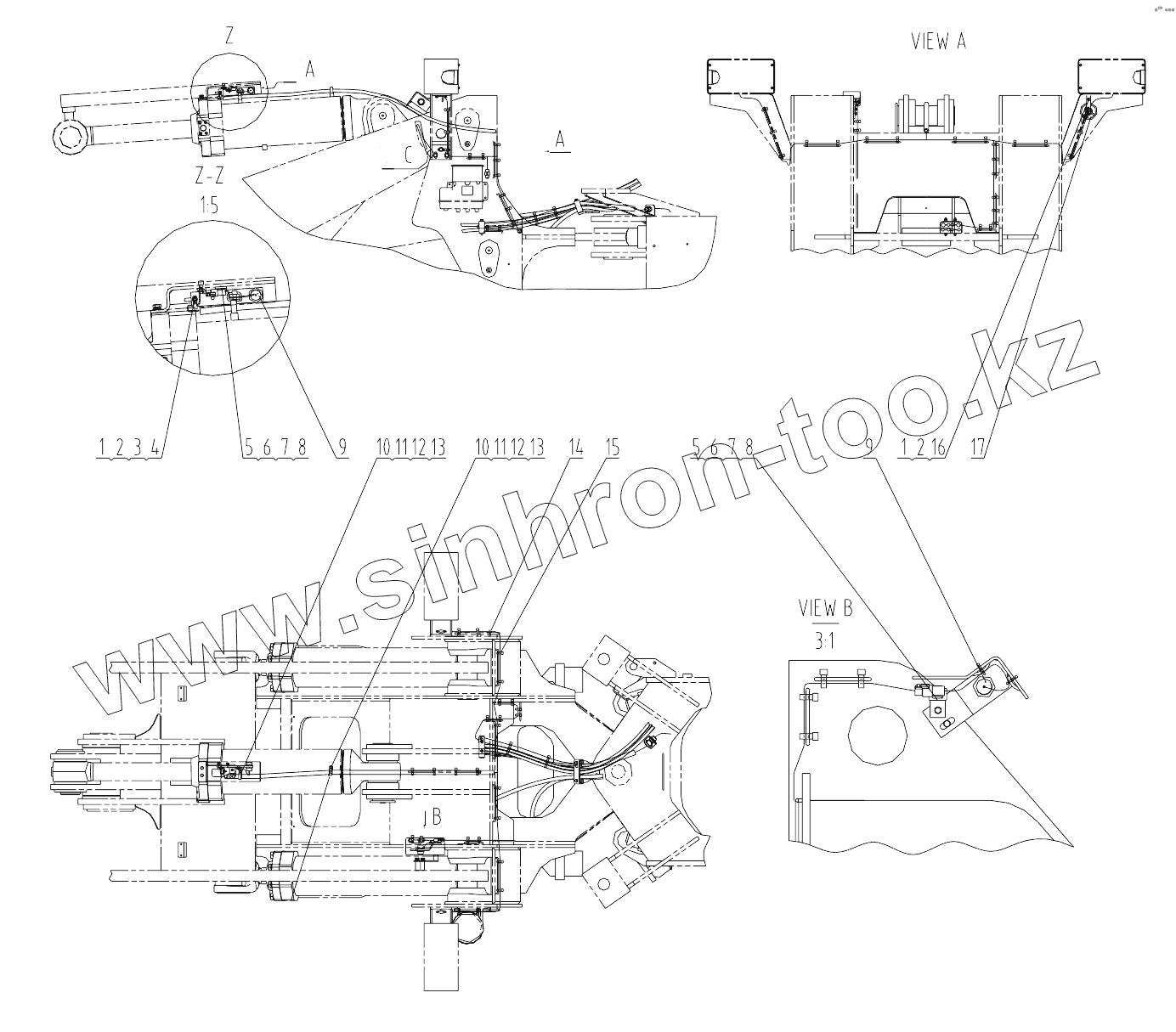

46C4465_002_00 FRONT FRAME WIRING
Каталог запасных частей к технике: LiuGong CLG-877. 46C4465_002_00 FRONT FRAME WIRING
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CLG 425 (2010)
CLG 777A-S (2010)
CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016)
CLG-220 (2008)
CLG-225 (2008)
CLG-365A (2012)
CLG-375 (2008)
CLG-375A (2008)
CLG-385A (2008)
CLG-4165 (2015)
CLG-418 (2008)
CLG-4215 (2010)
CLG-612 (2008)
CLG-614 (2010)
CLG-618 (2010)
CLG-626R
CLG-766 (2015)
CLG-766A (2012)
CLG-816G (2012)
CLG-835
CLG-835 (2015)
CLG-835H (2015)
CLG-836 (2015)
CLG-842
CLG-842
CLG-842 (2015)
CLG-855N (2015)
CLG-856 (2015)
CLG-856H (2015)
CLG-856I
CLG-862 (2015)
CLG-877 (2015)
CLG-888 (2015)
CLG-904С (2007)
CLG-915D
CLG-915D
CLG-920D
CLG-920E (2015)
CLG-922D
CLG-922LC
CLG-922LC (2008)
CLG-925 (2015)
CLG-925D (2015)
CLG-933E (2010)
CLG-B160 (2010)
Схема
>
Не выбрано
00E0650_001_00 FUEL TANK AS
16C0004_001_00 BREATHER CAP
16C0091_000_00 TANK COVER AS
00Y0229_000_00 ENGINE SYSTEM
00Y0229_000_01 ENGINE SYSTEM
23C0204_000_00 THROTTLE CONTROL SYSTEM
00Y0232_000_00 COOLING SYSTEM
00Y0232_000_01 COOLING SYSTEM
00Y0232_000_02 COOLING SYSTEM
20C0536_000_00 RESERVOIR
00C3239_000_00 FORK CYLINDER LINES
10C0164_000_00 FORK CYLINDER AS
10C0164X0_002_00 FORK CYLINDER AS
15Y0403_000_00 HYDRAULIC SYSTEM
00C1179_003_00 TILTING CYLINDER LINES
00C1439_001_00 PILOT CONTROL LINES
12C0457_003_00 PILOT VALVE AS
12C1412_000_00 PRESSURE REDUCING VALVE
44C0239_002_00 PILOT SHUTOFF VALVE
00C1440_002_00 COOLER LINES
12C0460_000_00 CHECK VALVE
00C1444_001_00 BOOM CYLINDER LINES
00C4023_000_00 CONTROL VALVE LINES
00C4024_000_00 STEERING LINES
12C2296_001_00 FLOW AMPLIFYING VALVE AS
12C2298_001_00 PRESSURE REDUCING VALVE AS
12C0438_001_00 PRESSURE REDUCING VALVE
12C0438X0_003_00 PRESSURE REDUCING VALVE
00C4025_000_00 UNLOAD VALVE LINES
00C4026_000_00 PRESSURE TEST LINES
00C4027_000_00 PUMP OIL SUCTION LINES
10C0181_003_00 BOOM CYLINDER
10C0182_004_00 BUCKET TILTING CYLINDER
10C0183_002_00 STEERING CYLINDER
12C0469_001_00 CONTROL VALVE AS
21C0436_001_00 HYDRAULIC OIL TANK
15Y0406_000_00 HYDRAULIC SYSTEM
00C0936_002_00 MULTIPURPOSE LINES
00C0937_003_00 PILOT CONTROL LINES
12C0800_001_00 CONTROL VALVE AS
44C0182_001_00 PILOT VALVE MOUNTING
15Y0829_000_00 HYDRAULIC SYSTEM
00C5206_000_00 MULTIPURPOSE LINES
01E0256_000_00 TYRE&RIM AS
01E0389_000_00 BRAKE LINES
01E0390_000_00 FRONT AXLE AS
01E0391_000_00 REAR AXLE AS
01E0400_000_00 TYRE&RIM AS
01E0435_000_00 TYRE&RIM AS
03E0096_003_00 SUPPORT&DRIVE SHAFT SYSTEM
41C0186_000_00 MIDDLE SUPPORT AS
05Y0108_000_00 GEARBOX & TORQUE CONVERTER AS
00C2776_000_00 FILTER LINES AS
00C2777_000_00 COOLER LINES AS
34C3691_000_00 SLEEVE AS
42C0861_000_00 GEARBOX AND TORQUE CONVERTER MOUNTING
20E0318_003_00 BRAKE SYSTEM
45C0177_003_00 FILTER
53C0155_000_00 FILTER
45C0178_002_00 CHARGE VALVE
45C0315_002_00 ACCUMULATOR MOUNTING AS
45C0316_003_00 BRAKE VALVE AS
45C0333_003_00 BRAKE VALVE AS
45C0622_001_00 BRAKE VALVE GP
08Y0491_000_00 REAR FRAME AS
22C0216_000_00 SUPPORT
27C0377_000_00 BATTERY BOX-RH
24C0269_000_00 SUPPORT
30D2654_000_00 REAR FRAME
25E0029_000_00 MANUAL LUBRICATION SYSTE
00C1171_000_00 FRONT FRAME GREASE LINES
00C1457_000_00 LUBRICATION PIPE
00C1484_000_00 LUBRICATION PIPE
30E0056_000_00 STEERING FRAME LOCK AS (ZL80G)
30E0108_001_00 ARTICULATED HITCH AS
34C0130_000_00 SHIM GP
30E0494_000_00 FRONT FRAME AS
30E0639_002_00 REAR FRAME AS
30E0994_000_00 FRONT FRAME AS
32E0168_000_00 WORK IMPLEMENT LIMIT SYSTEM
34C0467_000_00 STOP PLATE
32E0445_001_00 WORK IMPLEMENT
32E0582_002_00 BUCKET AS (4.2m3)
43C0684_002_00 TOOTH GP
43C0795_001_00 BLADE GP
43C0798_001_00 TOOTH GP
32E0670_000_00 (1200) LOGGING FORK CLAMP
43C0815_000_00 LOGGING FORK CLAMP
32E1008_000_00 POSITIONER AND KICKOUT SYSTEM
32E1661_000_00 BUCKET GP
32E1951_000_00 WASHER
28C0114_000_00 SHIM
32Y0452_000_00 WORK IMPLEMENT
24C2328_000_00 LEVER
32Y0458_000_00 WORK IMPLEMENT LIMIT SYSTEM
34C2022_003_00 BLOCK GP
45E0994_002_00 COUNTERWEIGHT
41E0042_000_00 CAB GUARD AS
41E0177_000_00 REARVIEW MIRROR AS
41E0180_006_00 CAB AS
34C0599_001_00 DECORATION AS
47C0239_001_00 FIRE EXTINGUISHER
47C0252_003_00 DOOR-LH
47C0253_003_00 DOOR-RH
47C1179_001_00 CONTROL BOX
47C0731_000_00 HAND REST
41E0397_000_00 PLATE AS
46E0036_003_00 SEAT AS
47C1091_000_00 STEERING COLUMN AS
46C4497_000_00 STEERING COLUMN AS
47C1717_001_00 STEERING COLUMN GP
46C3751_000_00 BRACKET
46C3752_000_00 BRACKET
46C6260_002_00 STEERING WIRING
46C7333_001_00 BRACKET
47C1855_001_00 STEERING COLUMN AS
47C1861_000_00 STEERING COLUMN GP
46C6933_000_00 STEERING COLUMN ELECTRONCE GP
46C3827_000_00 SWITCH AS
47C2420_000_00 STEERING COLUMN GP
46C9837_000_00 STEERING COLUMN ELECTRONIC GP
43E0272_000_00 FRONT FENDER
22C0320_001_00 PARKING WEDGE
43E0310_001_00 REAR FENDER AS
48C1165_000_00 REAR FENDER-RH
48C1166_000_00 REAR FENDER-LH
43E0311_002_00 LADDER AS
26C0159_000_00 STEP SUPPORT
44E0345_000_00 ENGINE HOOD
22E1497_000_00 ELECTRICAL SYSTEM
46C0983_000_00 WIPER AND WASHER SYSTEM
46C0641_000_00 REAR WIPER AS
46C1017_000_00 FRONT WIPER AS
46C1455_000_00 WATER RESERVOIR AS
46C1779_000_00 SOUND SYSTEM
46C1841_004_00 RADIO/CASSETTE PLAYER
46C3333_000_00 BATTERY WIRING
46C2962_002_00 DISCONNECT SWITCH MOUNTING
34B0297_000_00 DISCONNECT SWITCH
46C3473_000_00 FRONT FRAME WIRING
46C3483_000_00 WORK LIGHT WIRING
46C3911_000_00 SHIFT CONTROL WIRING
46C4192_000_00 LIFT SYSTEM
46C4465_002_00 FRONT FRAME WIRING
46C4500_000_00 LIFT SYSTEM
46C3665_000_00 LIFT CONTROL BOX
46C5392_001_00 LIGHT GROUP
46C1199_003_00 REAR FLOODLIGHT-LH
46C1201_001_00 REAR COMBINATION LIGHT-RH
46C2830_001_00 REAR FLOODLIGHT-RH
46C2831_002_00 REAR FLOODLIGHT-LH
46C4295_002_00 FRONT FLOODLIGHT-RH
46C4296_002_00 FRONT FLOODLIGHT-LH
49C0200_000_00 TAILLIGHT MOUNTING AS-LH
49C1011_000_00 TAILLIGHT MOUNTING AS-RH
46C6839_002_00 LIGHT GROUP
46C3975_003_00 REAR FLOODLIGHT-RH
46C4142_002_00 FRONT FLOODLIGHT-RH
46C4143_002_00 FRONT FLOODLIGHT-LH
46C7528_000_00 CAB WIRING
46C6183_002_00 RELAY AS
46C7559_000_00 CONTROL BOX
46C7685_000_00 REAR FRAME WIRING
46C7805_000_00 LIGHT GROUP
46C3095_000_00 FRONT FLOODLIGHT AS-RH
46C3115_000_00 FRONT FLOODLIGHT AS-LH
46C7687_001_00 TAILLIGHT MOUNTING AS-RH
46C7691_001_00 TAILLIGHT MOUNTING AS-LH
46C7743_000_00 TAILLIGHT MOUNTING AS-RH
49C2362_000_00 TAILLIGHT MOUNTING AS-LH
46C9821_000_00 WORK LIGHT WIRING
46C4594_001_00 ROTATING BEACON AS
23E0253_002_00 AIR CONDITIONING SYSTEM
46C0996_003_00 PLATFORM AS
46C2543_000_00 CONDENSER
46C3440_001_00 COMPRESSOR BRACKET AS
46C4841_000_00 EVAPORATOR AS
46C6820_000_00 PLATFORM
1
1
2
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
15
16
17
17
17
17
Позиция на иллюстрации
Заводской номер детали
Название детали
1
06B0006
Шайба
2
06B0005
WASHER
3
20A1851
Хомут
4
03B0021
NUT
5
20A9297
Insert
6
00B0301
Болт
7
06B0002
Шайба
8
06B0001
WASHER
9
46C4364
Switch as
10
09C0117
Зажим
11
00B0021
BOLT
12
06B0003
Шайба
13
06B0024
WASHER
14
08C7781
Harness
14
08C6643
Harness
14
08C3695
Harness
14
08C6643
Harness
15
37B0004
Хомут
16
00B0007
Болт
17
HORNGP
Horn gp
17
38B0075
Horn
17
38B0187
Horn
17
HORNGP
Horn gp
18
20A6813
INSERT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
