Каталог запасных частей к технике: LiuGong CLG-877. 46C1201_001_00 REAR COMBINATION LIGHT-RH

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00E0650_001_00 FUEL TANK AS 16C0004_001_00 BREATHER CAP 16C0091_000_00 TANK COVER AS 00Y0229_000_00 ENGINE SYSTEM 00Y0229_000_01 ENGINE SYSTEM 23C0204_000_00 THROTTLE CONTROL SYSTEM 00Y0232_000_00 COOLING SYSTEM 00Y0232_000_01 COOLING SYSTEM 00Y0232_000_02 COOLING SYSTEM 20C0536_000_00 RESERVOIR 00C3239_000_00 FORK CYLINDER LINES 10C0164_000_00 FORK CYLINDER AS 10C0164X0_002_00 FORK CYLINDER AS 15Y0403_000_00 HYDRAULIC SYSTEM 00C1179_003_00 TILTING CYLINDER LINES 00C1439_001_00 PILOT CONTROL LINES 12C0457_003_00 PILOT VALVE AS 12C1412_000_00 PRESSURE REDUCING VALVE 44C0239_002_00 PILOT SHUTOFF VALVE 00C1440_002_00 COOLER LINES 12C0460_000_00 CHECK VALVE 00C1444_001_00 BOOM CYLINDER LINES 00C4023_000_00 CONTROL VALVE LINES 00C4024_000_00 STEERING LINES 12C2296_001_00 FLOW AMPLIFYING VALVE AS 12C2298_001_00 PRESSURE REDUCING VALVE AS 12C0438_001_00 PRESSURE REDUCING VALVE 12C0438X0_003_00 PRESSURE REDUCING VALVE 00C4025_000_00 UNLOAD VALVE LINES 00C4026_000_00 PRESSURE TEST LINES 00C4027_000_00 PUMP OIL SUCTION LINES 10C0181_003_00 BOOM CYLINDER 10C0182_004_00 BUCKET TILTING CYLINDER 10C0183_002_00 STEERING CYLINDER 12C0469_001_00 CONTROL VALVE AS 21C0436_001_00 HYDRAULIC OIL TANK 15Y0406_000_00 HYDRAULIC SYSTEM 00C0936_002_00 MULTIPURPOSE LINES 00C0937_003_00 PILOT CONTROL LINES 12C0800_001_00 CONTROL VALVE AS 44C0182_001_00 PILOT VALVE MOUNTING 15Y0829_000_00 HYDRAULIC SYSTEM 00C5206_000_00 MULTIPURPOSE LINES 01E0256_000_00 TYRE&RIM AS 01E0389_000_00 BRAKE LINES 01E0390_000_00 FRONT AXLE AS 01E0391_000_00 REAR AXLE AS 01E0400_000_00 TYRE&RIM AS 01E0435_000_00 TYRE&RIM AS 03E0096_003_00 SUPPORT&DRIVE SHAFT SYSTEM 41C0186_000_00 MIDDLE SUPPORT AS 05Y0108_000_00 GEARBOX & TORQUE CONVERTER AS 00C2776_000_00 FILTER LINES AS 00C2777_000_00 COOLER LINES AS 34C3691_000_00 SLEEVE AS 42C0861_000_00 GEARBOX AND TORQUE CONVERTER MOUNTING 20E0318_003_00 BRAKE SYSTEM 45C0177_003_00 FILTER 53C0155_000_00 FILTER 45C0178_002_00 CHARGE VALVE 45C0315_002_00 ACCUMULATOR MOUNTING AS 45C0316_003_00 BRAKE VALVE AS 45C0333_003_00 BRAKE VALVE AS 45C0622_001_00 BRAKE VALVE GP 08Y0491_000_00 REAR FRAME AS 22C0216_000_00 SUPPORT 27C0377_000_00 BATTERY BOX-RH 24C0269_000_00 SUPPORT 30D2654_000_00 REAR FRAME 25E0029_000_00 MANUAL LUBRICATION SYSTE 00C1171_000_00 FRONT FRAME GREASE LINES 00C1457_000_00 LUBRICATION PIPE 00C1484_000_00 LUBRICATION PIPE 30E0056_000_00 STEERING FRAME LOCK AS (ZL80G) 30E0108_001_00 ARTICULATED HITCH AS 34C0130_000_00 SHIM GP 30E0494_000_00 FRONT FRAME AS 30E0639_002_00 REAR FRAME AS 30E0994_000_00 FRONT FRAME AS 32E0168_000_00 WORK IMPLEMENT LIMIT SYSTEM 34C0467_000_00 STOP PLATE 32E0445_001_00 WORK IMPLEMENT 32E0582_002_00 BUCKET AS (4.2m3) 43C0684_002_00 TOOTH GP 43C0795_001_00 BLADE GP 43C0798_001_00 TOOTH GP 32E0670_000_00 (1200) LOGGING FORK CLAMP 43C0815_000_00 LOGGING FORK CLAMP 32E1008_000_00 POSITIONER AND KICKOUT SYSTEM 32E1661_000_00 BUCKET GP 32E1951_000_00 WASHER 28C0114_000_00 SHIM 32Y0452_000_00 WORK IMPLEMENT 24C2328_000_00 LEVER 32Y0458_000_00 WORK IMPLEMENT LIMIT SYSTEM 34C2022_003_00 BLOCK GP 45E0994_002_00 COUNTERWEIGHT 41E0042_000_00 CAB GUARD AS 41E0177_000_00 REARVIEW MIRROR AS 41E0180_006_00 CAB AS 34C0599_001_00 DECORATION AS 47C0239_001_00 FIRE EXTINGUISHER 47C0252_003_00 DOOR-LH 47C0253_003_00 DOOR-RH 47C1179_001_00 CONTROL BOX 47C0731_000_00 HAND REST 41E0397_000_00 PLATE AS 46E0036_003_00 SEAT AS 47C1091_000_00 STEERING COLUMN AS 46C4497_000_00 STEERING COLUMN AS 47C1717_001_00 STEERING COLUMN GP 46C3751_000_00 BRACKET 46C3752_000_00 BRACKET 46C6260_002_00 STEERING WIRING 46C7333_001_00 BRACKET 47C1855_001_00 STEERING COLUMN AS 47C1861_000_00 STEERING COLUMN GP 46C6933_000_00 STEERING COLUMN ELECTRONCE GP 46C3827_000_00 SWITCH AS 47C2420_000_00 STEERING COLUMN GP 46C9837_000_00 STEERING COLUMN ELECTRONIC GP 43E0272_000_00 FRONT FENDER 22C0320_001_00 PARKING WEDGE 43E0310_001_00 REAR FENDER AS 48C1165_000_00 REAR FENDER-RH 48C1166_000_00 REAR FENDER-LH 43E0311_002_00 LADDER AS 26C0159_000_00 STEP SUPPORT 44E0345_000_00 ENGINE HOOD 22E1497_000_00 ELECTRICAL SYSTEM 46C0983_000_00 WIPER AND WASHER SYSTEM 46C0641_000_00 REAR WIPER AS 46C1017_000_00 FRONT WIPER AS 46C1455_000_00 WATER RESERVOIR AS 46C1779_000_00 SOUND SYSTEM 46C1841_004_00 RADIO/CASSETTE PLAYER 46C3333_000_00 BATTERY WIRING 46C2962_002_00 DISCONNECT SWITCH MOUNTING 34B0297_000_00 DISCONNECT SWITCH 46C3473_000_00 FRONT FRAME WIRING 46C3483_000_00 WORK LIGHT WIRING 46C3911_000_00 SHIFT CONTROL WIRING 46C4192_000_00 LIFT SYSTEM 46C4465_002_00 FRONT FRAME WIRING 46C4500_000_00 LIFT SYSTEM 46C3665_000_00 LIFT CONTROL BOX 46C5392_001_00 LIGHT GROUP 46C1199_003_00 REAR FLOODLIGHT-LH 46C1201_001_00 REAR COMBINATION LIGHT-RH 46C2830_001_00 REAR FLOODLIGHT-RH 46C2831_002_00 REAR FLOODLIGHT-LH 46C4295_002_00 FRONT FLOODLIGHT-RH 46C4296_002_00 FRONT FLOODLIGHT-LH 49C0200_000_00 TAILLIGHT MOUNTING AS-LH 49C1011_000_00 TAILLIGHT MOUNTING AS-RH 46C6839_002_00 LIGHT GROUP 46C3975_003_00 REAR FLOODLIGHT-RH 46C4142_002_00 FRONT FLOODLIGHT-RH 46C4143_002_00 FRONT FLOODLIGHT-LH 46C7528_000_00 CAB WIRING 46C6183_002_00 RELAY AS 46C7559_000_00 CONTROL BOX 46C7685_000_00 REAR FRAME WIRING 46C7805_000_00 LIGHT GROUP 46C3095_000_00 FRONT FLOODLIGHT AS-RH 46C3115_000_00 FRONT FLOODLIGHT AS-LH 46C7687_001_00 TAILLIGHT MOUNTING AS-RH 46C7691_001_00 TAILLIGHT MOUNTING AS-LH 46C7743_000_00 TAILLIGHT MOUNTING AS-RH 49C2362_000_00 TAILLIGHT MOUNTING AS-LH 46C9821_000_00 WORK LIGHT WIRING 46C4594_001_00 ROTATING BEACON AS 23E0253_002_00 AIR CONDITIONING SYSTEM 46C0996_003_00 PLATFORM AS 46C2543_000_00 CONDENSER 46C3440_001_00 COMPRESSOR BRACKET AS 46C4841_000_00 EVAPORATOR AS 46C6820_000_00 PLATFORM

1

2

3

4

5

6

7

8

9

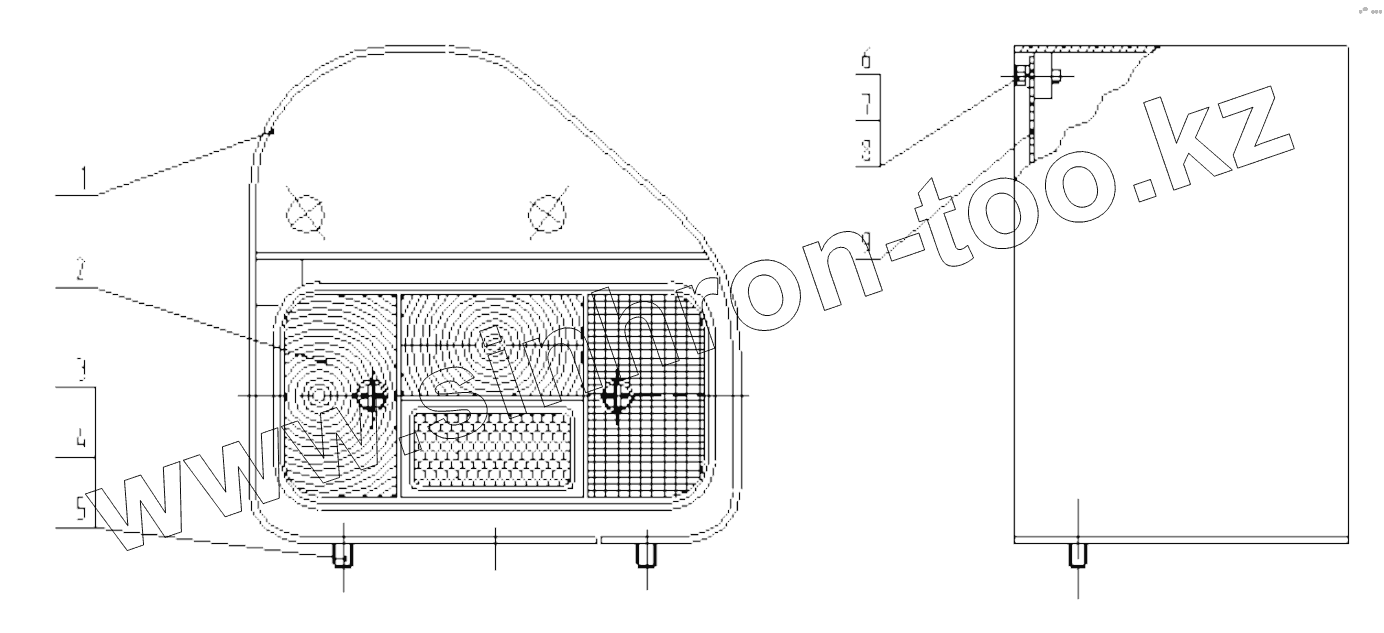

Позиция на иллюстрации	Заводской номер детали		Название детали
1	04D1622		Light box
2	32B0138		Position light-lh
3	00B0056		Болт
4	06B0001		WASHER
5	06B0002		Шайба
6	00B0021		BOLT
7	06B0003		Шайба
8	06B0024		WASHER
9	10A1917		Cover

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер

Дополнительная информация

×

Название:

Номер:

Примечание:
