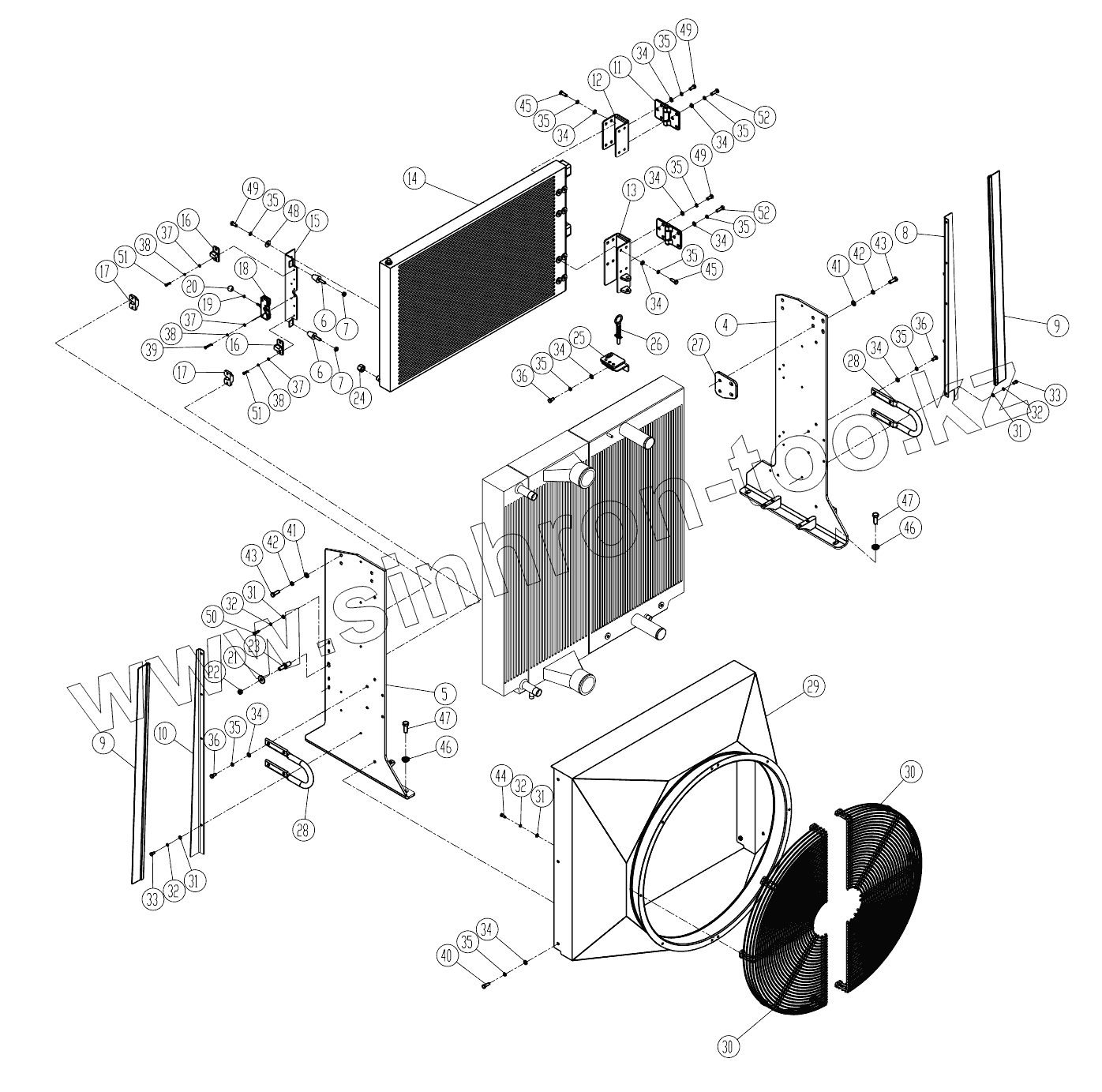

Каталог запасных частей к технике: LiuGong CLG-877. 00Y0232_000_00 COOLING SYSTEM
4
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
30
31
31
31
31
32
32
32
32
33
33
34
34
34
34
34
34
34
34
34
34
35
35
35
35
35
35
35
35
35
35
35
36
36
36
37
37
37
38
38
38
39
40
41
41
42
42
43
43
44
45
45
46
46
47
47
48
49
49
49
50
51
51
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4 | Bracket-lh | Bracket-lh | |
| 5 | Bracket-rh | Bracket-rh | |
| 6 | 35C0680 | Cushion | |
| 7 | 03B0053 | NUT | |
| 8 | 20A9303 | Plate | |
| 9 | Seal | Seal | |
| 10 | 20A9305 | Plate | |
| 11 | 25C0358 | Hinge | |
| 12 | 00D4508 | Bracket | |
| 13 | 00D5406 | Connecting bracket | |
| 14 | 20C0741 | Transmission oil cooler | |
| 15 | 00D4268 | Lock plate | |
| 16 | 35C0753 | Plate | |
| 17 | 16A5055 | Plate | |
| 18 | 24C0471 | Lock | |
| 19 | 03B0036 | NUT | |
| 20 | 35C0689 | Knob | |
| 21 | 10A4589 | Hard washer | |
| 22 | 03B0034 | Гайка стопорная | |
| 23 | 60A1521 | Lock pin | |
| 24 | 30C0404 | PLUG | |
| 25 | RETAINER | Retainer | |
| 26 | 24C1082 | Pin | |
| 27 | 14A8871 | Plate | |
| 28 | HANDRAIL | Handrail | |
| 29 | 45D1608 | Shroud | |
| 30 | 45D1031 | Protection shield | |
| 31 | 06B0005 | WASHER | |
| 32 | 06B0006 | Шайба | |
| 33 | 00B0007 | Болт | |
| 34 | 06B0001 | WASHER | |
| 35 | 06B0002 | Шайба | |
| 36 | 00B0005 | BOLT | |
| 37 | 06B0024 | WASHER | |
| 38 | 06B0003 | Шайба | |
| 39 | 00B0065 | BOLT | |
| 40 | 00B0019 | Болт | |
| 41 | 06B0007 | WASHER | |
| 42 | 06B0008 | Шайба | |
| 43 | 00B0386 | BOLT | |
| 44 | 00B0075 | BOLT | |
| 45 | BOLT | BOLT | |
| 46 | 56A1726 | Hard washer | |
| 47 | BOLT | BOLT | |
| 48 | 06B0030 | WASHER | |
| 49 | 00B0341 | BOLT | |
| 50 | 00B0085 | Болт | |
| 51 | 00B0010 | BOLT | |
| 52 | 00B0237 | Болт |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
