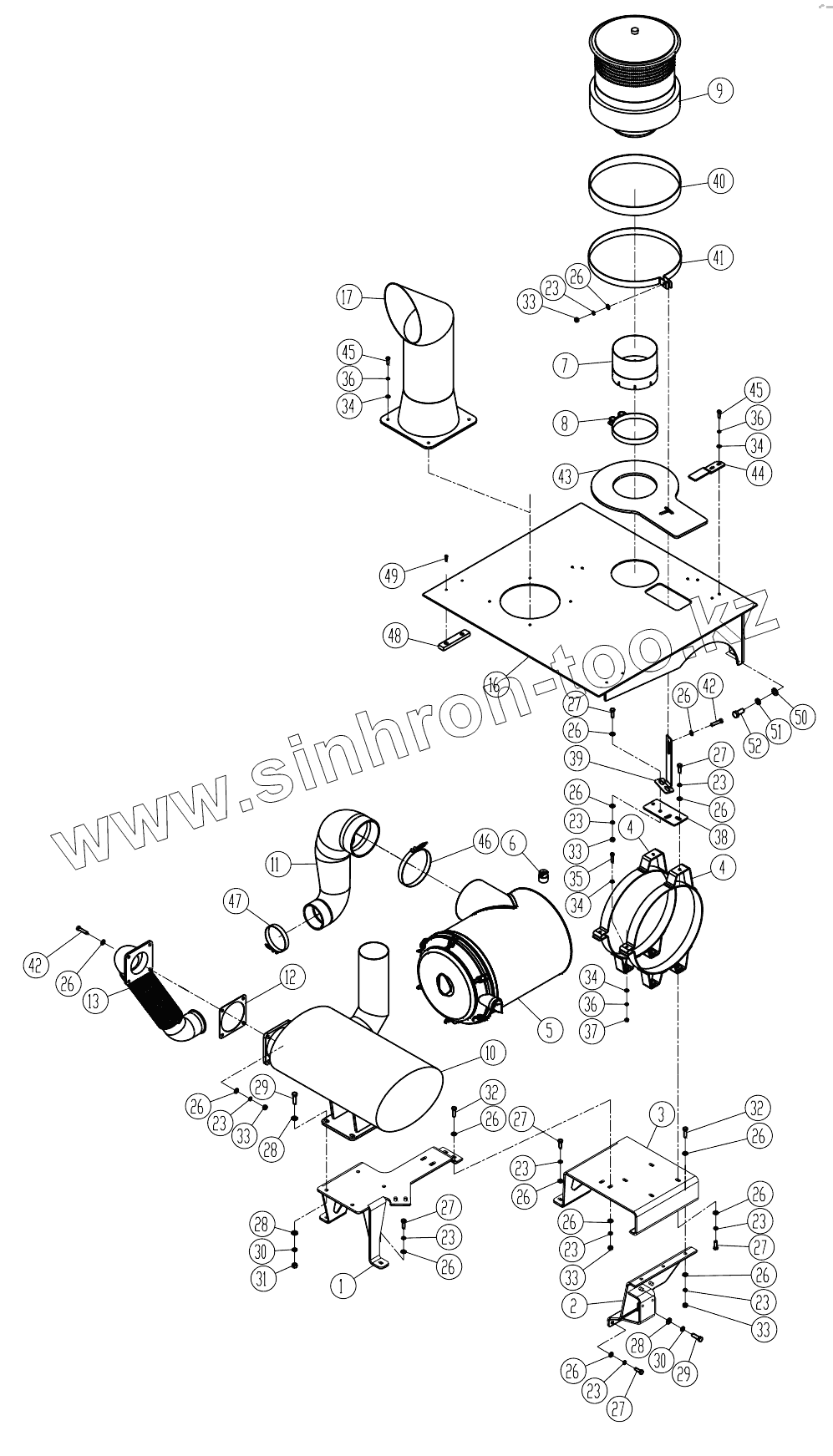

Каталог запасных частей к технике: LiuGong CLG-877. 00Y0229_000_01 ENGINE SYSTEM
1
2
3
4
4
5
6
7
8
9
10
11
12
13
16
17
23
23
23
23
23
23
23
23
23
23
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
27
27
27
27
27
28
28
28
29
29
30
30
31
32
32
33
33
33
33
33
34
34
34
34
35
36
36
36
37
38
39
40
41
42
42
43
44
45
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 01D0046 | Bracket | |
| 2 | 01D0047 | Bracket | |
| 3 | 01D0054 | Bracket | |
| 4 | 00D4272 | Bracket | |
| 5 | 40C0319 | AIR FILTER AS | |
| 6 | 40C1000 | ELECTRICAL INDICATOR | |
| 7 | 05D0100 | Sleeve | |
| 8 | 09C1528 | Clamp | |
| 9 | 40C0290 | Air filter | |
| 10 | 40C0327 | Muffler as | |
| 11 | 32A0670 | Intake pipe | |
| 12 | 82A0119 | Shim | |
| 13 | 10D8762 | Exhaust pipe | |
| 14 | 85A3726 | Heat shield | |
| 15 | 85A0793 | Heat shield | |
| 16 | 02D6011 | Bracket | |
| 17 | 10D2166 | Exhaust pipe | |
| 18 | 56A0235 | Shim | |
| 19 | 00B0220 | BOLT | |
| 20 | 01B0026 | BOLT | |
| 21 | 06B0077 | WASHER | |
| 22 | 03B0498 | Locknut | |
| 23 | 06B0002 | Шайба | |
| 24 | 01B0473 | BOLT | |
| 25 | 01B0401 | Болт | |
| 26 | 06B0001 | WASHER | |
| 27 | 00B0019 | Болт | |
| 28 | 06B0007 | WASHER | |
| 29 | BOLT | BOLT | |
| 30 | 06B0008 | Шайба | |
| 31 | 03B0003 | Гайка | |
| 32 | 00B0002 | Болт | |
| 33 | 03B0053 | NUT | |
| 34 | 06B0005 | WASHER | |
| 35 | 00B0102 | BOLT | |
| 36 | 06B0006 | Шайба | |
| 37 | 03B0021 | NUT | |
| 38 | 11A4126 | Mounting plate | |
| 39 | 21A5270 | Bracket | |
| 40 | 83A0396 | Boot | |
| 41 | 20A3502 | Clamp | |
| 42 | 00B0048 | Болт | |
| 43 | 82A0879 | Seal plate | |
| 44 | 21A3033 | Plate | |
| 45 | 00B0085 | Болт | |
| 46 | 09C1344 | Clamp | |
| 47 | 09C0832 | Clamp | |
| 48 | 17B0046 | Резина | |
| 49 | 04B0177 | Винт | |
| 50 | 06B0012 | Шайба | |
| 51 | 06B0015 | Шайба | |
| 52 | 00B0059 | Болт |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
