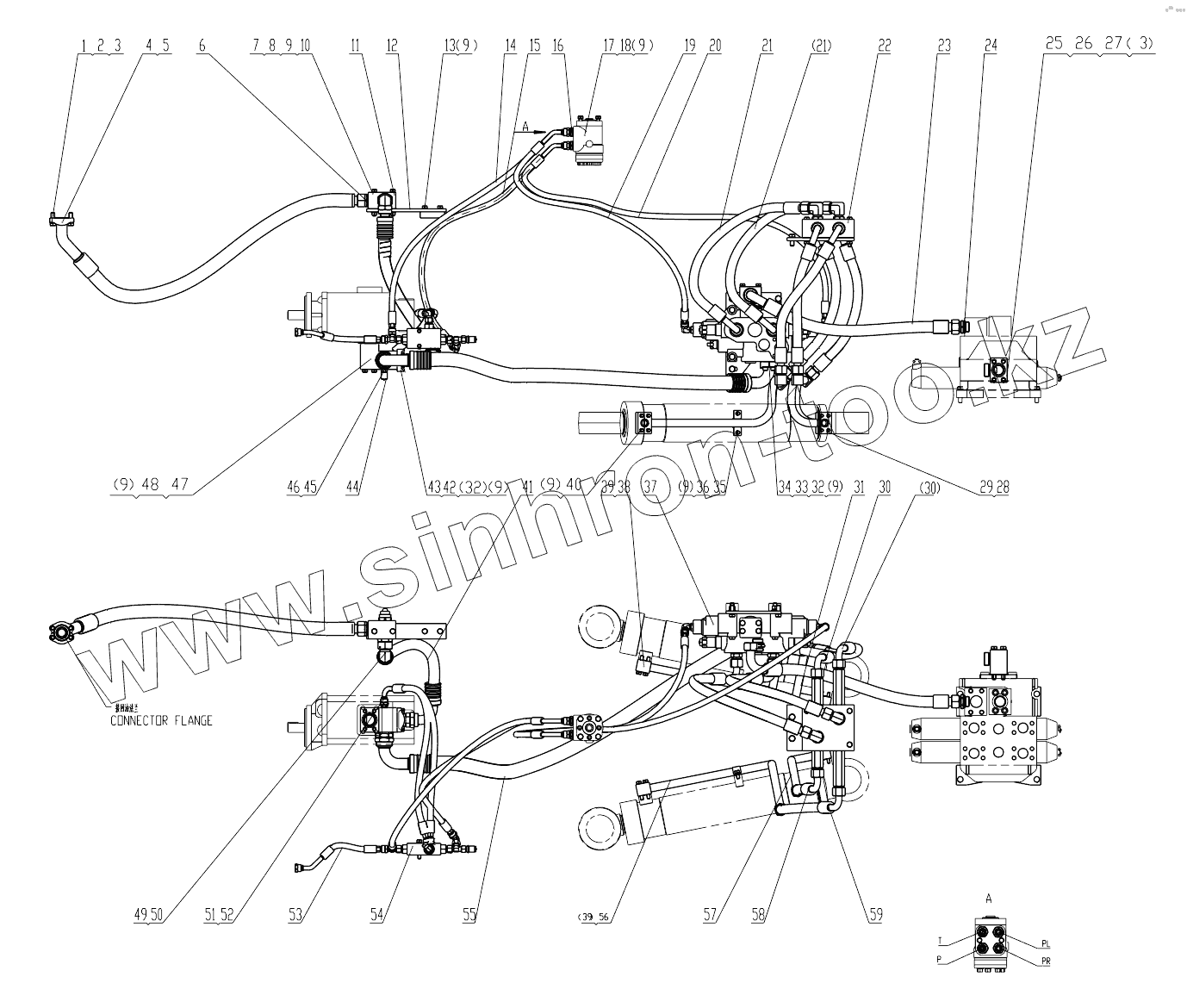

Каталог запасных частей к технике: LiuGong CLG-877. 00C4024_000_00 STEERING LINES

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
9
9
9
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
30
31
32
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
1 00B0035 Болт
2 72A0630 Plate
3 06B0008 Шайба
4 07C5788 Hose as
5 12B0250 O-RING
6 30C0273 Connector
7 03B0053 NUT
8 06B0001 WASHER
9 06B0002 Шайба
10 01B0033 Болт
11 12C0644 Relief valve
12 09A9478 Plate
13 00B0019 Болт
14 06C3528 Hose as
15 06C6016 Hose as
16 30C0226 Connector
17 44C0173 Metering pump
18 00B0012 BOLT
19 06C3526 Hose as
20 06C3525 Hose as
21 06C6203 Hose as
22 33C0124 Block
23 07C2169 Hose as
24 30C0262 Connector
25 04A1488 Flange
26 01B0160 Болт
27 12B0268 O-RING
28 06B0006 Шайба
29 00B0030 Болт
30 06C6202 Hose as
31 10D5136 Tube as
32 04B0116 SCREW
33 12B0294 O-RING
34 72A0628 Plate
35 00B0005 BOLT
36 27A0679 Clamp
37 12C2296 Flow amplifying valve as
38 09D2934 Tube as
39 12B0271 Кольцо круглого сечения
40 00B0064 Болт
41 07C5971 Hose as
42 00A4158 Connector
43 72A0629 Plate
44 44C0022 Штуцер
45 30C0847 Connector
46 30C1232 Connector
47 04A3250 Flange
48 01B0848 Bolt
49 30C0260 Connector
50 31C0088 ELBOW
51 30C0224 Connector
52 66C3664 Hose as
53 06C3524 Hose as
54 12C2298 Pressure reducing valve as
55 07C6004 Hose as
56 10D5138 Tube as
57 10D5135 Tube as
58 06C6200 Hose as
59 06C6201 Hose as
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
