Каталог запасных частей к технике: LiuGong CLG-856I. 23C0037 001 CONTROL LEVER AS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 45E0739 003 DECAL SET 45E0874 000 NAME-PLATE GP 00E0208 005 ENGINE SYSTEM 40C0092 001 FUEL PRE-FILTER 23C0038 001 THROTTLE CONTROL SYSTEM 00E0317 005 INTAKE AND EXHAUST SYSTEM 20C0046 003 RADIATOR GP 20C0101 003 COOLING SYSTEM 21C0033 003 FUEL RESERVOIR 16C0004 000 BREATHER CAP 12D0072 000 STRAINER 51C0017 001 FRONT AXLE AS 01E0185 000 FRONT AXLE AS 51C0018 001 FRONT AXLE GP 31C0038 000 CONNECTOR 51C0127 000 FRONT AXLE 4474 101 008 01 AXLE HOUSING 4474 101 008 02 AXLE HOUSING 4474 102 048 01 OUTPUT 4460 115 004 01 DIFF CARRIER 4460 115 004 02 INPUT FLANGE 4460 215 338 00 BEVEL GEAR SET 4461 016 005 00 LIMIT.SLIP DIFF 41C0014 001 REAR AXLE AS 01E0186 000 REAR AXLE AS 51C0020 003 REAR AXLE GP 51C0128 000 REAR AXLE 4474 101 118 00 AXLE HOUSING 4474 101 119 00 AXLE HOUSING 4474 102 114 00 OUTPUT 4460 165 009 01 DIFF. CARRIER 4460 165 009 02 INPUT FLANGE 4460 265 368 00 BEVEL GEAR SET 4061 010 009 00 LIMIT.SLIP DIFF 51C0052 000 TYRE & RIM AS 01E0262 000 TYRE & RIM AS 51C0053 000 RIM AS 00C0028 001 GREASE LINES 03E0044 001 DRIVE SHAFT SYSTEM 41C0120 001 FRONT DRIVE SHAFT & BRG AS 51C0101 000 FRONT DRIVE SHAFT GP 51C0024 000 MIDDLE DRIVE SHAFT 51C0025 000 REAR DRIVE SHAFT 04E0042 002 GEARBOX & TORQUE CONVERTER AS 30C0023 001 CONNECTOR AS 31C0238 000 CONNECTOR AS 05E0004 001 GEARBOX & TORQUE CONVERTER AS 4166 034 070 00 TORQUE CONVERTER 4644 130 263 00 ENGINE CONNECT 4644 152 037 01 COUPING KR+K2 4644 152 037 02 COUPING KR+K2 4644 153 509 00 COUPING K3+K4 4644 153 030 01 COUPING K3+K4 4644 103 107 00 OUTPUT 4644 103 467 00 OUTPUT 4644 109 040 01 PARKING BRAKE 4644 109 040 02 PARKING BRAKE 4644 109 438 00 PARKING BRAKE 4644 154 080 00 POWER TAKE-OFF 4644 154 476 00 POWER TAKE-OFF 4644 155 420 00 POWER TAKE-OFF 4644 155 031 00 POWER TAKE-OFF 4644 106 325 00 GEARSHIFT SYSTEM 4644 159 347 00 GEARSHIFT 4644 138 015 00 FILTER 4644 137 022 00 EMCY.STEER.PUMP 4644 120 213 00 PRESS.REGULATOR 4644 125 479 00 IND.TRANSMITTER 4644 125 016 10 IND.TRANSMITTER 4644 102 134 00 INPUT 4644 131 419 00 FILLER NECK 4644 131 077 00 FILLER NECK 4644 121 023 00 OILPIPE 4644 101 249 00 GEARBOX HOUSING 4644 101 491 00 GEARBOX HOUSING 4644 108 232 00 LAYSHAFT 4644 151 034 02 COUPING KV+K1 4644 151 034 01 COUPING KV+K1 4642 199 076 00 LOOSE PARTS 10E0150 002 STEERING HYDRAULIC SYSTEM 44C0279 001 STEERING COLUMN MOUNTING 44C0005 000 METERING PUMP 44C0023 000 STEERING SHAFT 00C0255 000 METERING PUMP LINES 12C0015 001 PRESSURE REDUCING VALVE 32C0014 001 CONNECTOR 31C0022 000 CONNECTOR 00C0047 000 RADIATOR LINES 12C1047 004 FLOW AMPLIFYING VALVE 10C0030 000 STEERING CYLINDER-RH 10C0031 000 STEERING CYLINDER-LH 11E0385 006 HYDRAULIC SYSTEM 11E0385 006 HYDRAULIC SYSTEM 11E0413 003 HYDRAULIC SYSTEM 11E0413 003 HYDRAULIC SYSTEM (A) 11E0413 003 HYDRAULIC SYSTEM (B) 11E0413 HYDRAULIC SYSTEM (C) 11E0659 002 HYDRAULIC SYSTEM 11E0659 002 HYDRAULIC SYSTEM 11E0659 002 HYDRAULIC SYSTEM 10C0023 001 BOOM CYLINDER 10C0024 001 TILTING CYLINDER 10C1274 000 BUCKET TILTING CYLINDER 12C0025 000 DISTRIBUTING VALVE 12C0057 000 CHECK VALVE 12C2288 001 PILOT VALVE MOUNTING 00C0632 000 PILOT OIL FILTER LINES 00C0636 000 PILOT OIL FILTER LINES 31C0031 000 CONNECTOR 30C0015 000 CONNECTOR 30C0028 000 CONNECTOR 33C0001 000 CONNECTOR 32C0025 000 CONNECTOR 33C0023 000 CONNECTOR 12C0037 004 COMBINATION VALVE 21C0208 000 HYDRAULIC OIL TANK 21C0209 000 HYDRAULIC OIL TANK 11C0015 000 PUMP 12C0019 000 VALVE GP-PILOT 12C0020 000 VALVE GROUP 12C0021 000 VALVE GROUP 12C0022 000 VALVE GP 12C0023 000 VALVE GP 12C0024 000 VALVE GROUP 44C0888 000 POSITIONER AND KICKOUT SYSTEM 00C1079 000 POSITIONER AND KICKOUT SYSTEM 23C0037 001 CONTROL LEVER AS 23C0035 001 CONTROL LEVER 11E0101 003 SIDE DUMP HYDRAULIC SYSTEM 00C0538 000 MULTIPURPOSE LINES 00C0637 003 MULTIPURPOSE LINES 00C0734 004 QUICK COUPLER LINES 10C0316 000 CYLINDER 12C1113 001 DIVERTER VALVE MOUNTING 12C0685 008 DIVERTER VALVE 00C1005 001 HYDRAULIC OIL LINES 23C0176 000 CONTROL LEVER AS 20E0173 001 SERVICE BRAKE SYSTEM 45C0113 000 ACCUMULATOR MOUNTING 45C0121 001 BRAKE VALVE 45C0122 000 CHARGE VALVE AS 13C0173 000 CHARGE VALVE 31C0010 000 CONNECTOR 21E0043 001 PARKING BRAKE SYSTEM 45C0155 003 PART VALVE ASS’Y 45C0219 000 BRAKE VALVE AS 13C0013 003 BRAKE CYLINDER AS 13C0189 002 BRAKE CYLINDER 30E0234 000 FRAME 30E0641 000 FRAME 43C0127 001 ACCUMULATOR BOX 43C0119 002 BATTERY BOX-LH 01C0012 001 GREASE LINES 43C0013 002 ARTICULATION HITCH AS 32E0310 000 WORK IMPLEMENT SYSTEM 32E0588 002 QUICK COUPLER 32E0110 000 BUCKET AS 2.7M3 43C0116 000 TOOTH GP 43C0472 000 BUCKET COUPLER 3.0M3 43C0442 000 TOOTH GROUP 32E0058 000 BUCKET AS 3.0M3 43C0083 000 BUCKET AS 3.3M3 22D0099 000 BUCKET 4.5M3 43C0088 000 TOOTH GP 22D0100 000 BUCKET 4.5M3 43C0095 000 BLADE GP 43C0916 000 FORK COUPLER 25E0001 007 AUTO LUBRICATION SYSTEM 45E0220 000 COUNTERWEIGHT AS 41E0165 003 CAB AS 47C0543 002 DOOR-LH 47C0544 002 DOOR-RH 47C0194 002 HAND REST 47C0108 001 CONTROL BOX AS 47C0239 000 FIRE EXTINGUISHER 41E0018 001 PLATE AS 41E0157 000 REAR VIEW MIRROR AS 41E0159 000 CAB GUARD AS 43E0011 004 FRONT FENDER-RH 43E0034 004 FRONT FENDER AS-LH 43E0114 003 REAR FENDER AS-RH 43E0113 003 REAR FENDER AS-LH 44E0187 003 ENGINE HOOD AS 24C0034 001 LIFT MECHANISM 42D0714 001 DOOR 26C0112 000 LADDER AS 26C0013 001 STEP 26C0034 001 LADDER AS 46E0032 000 SEAT AS 46E0040 002 SEAT AS 23E0168 003 AIR CONDITIONING SYSTEM 46C1879 000 COMPRESSOR BRACKET AS 46C3591 000 FILTER 46C3622 000 EVAPORATOR 22E0597 001 ELECTRICAL SYSTEM 22E0579 001 ELECTRICAL SYSTEM 46C1738 001 FRONT FRAME WIRING 46C1744 003 REAR FRAME WIRING 46C1745 000 BATTERY WIRING AS 46C1743 002 CAB WIRING 46C1846 002 CONTROL BOX AS 22E0230 002 BACKUP ALARM SYSTEM 46C0709 002 SHIFT CONTROL WIRING 46C1884 000 LIGHT GROUP 46C0702 000 REAR POSITION LIGHT-RH 46C0703 000 POSITION LIGHT 46C0704 000 FRONT LIGHT-RH 46C0705 000 FRONT LIGHT-LH 46C1741 000 WIPER AND WASHER SYSTEM 46C1742 002 WORK LIGHT WIRING 46C1746 000 INSTRUMENT PANEL 46C0264 000 SUPPORT AS 46C1843 002 SOUND SYSTEM 46C1841 003 RADIO/CASSETTE PLAYER 46C1767 000 ROTATING BEACON 50E0055 002 ELECTRICAL SCHEMATIC

1

2

3

4

5

6

7

8

9

10

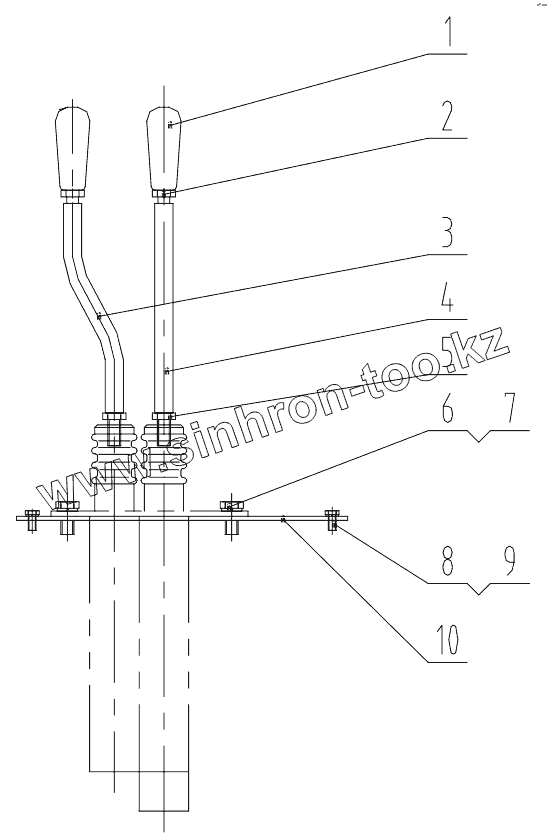

Позиция на иллюстрации	Заводской номер детали		Название детали
1	35C0103		KNOB
2	03B0003		Гайка
3	63A0046		BUCKT CONTROL L EVER
4	63A0047		BOOM CONTROL LEVER
5	03B0346		NUT
6	04B0314		SCREW
7	06B0002		Шайба
8	04B0256		SCREW
9	06B0024		WASHER
10	38C0018		COVER
