5. 41C0492P02_000_00 CLAMP AS

Каталог запасных частей к технике: LiuGong CLG-855N. 41C0492P02_000_00 CLAMP AS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00Y0145_001_00 FUEL TANK AS 00Y0145X0_000_00 FUEL TANK AS 12D0273_000_00 STRAINER 16C0044_001_00 BREATHER CAP 00Y0153_000_00 ENGINE SYSTEM 40C3879_005_00 ENGINE MOUNTING 40C3678_000_00 DIESEL ENGINE SP139717_000_00 THERMOSTAT SP139720_000_00 ALTERNATOR SP139724_000_00 FAN DRIVE MOUNTING SP139730_000_00 FUEL FILTER SP139739_000_00 FUEL PUMP SP139748_000_00 FUEL SHUTOFF VALVE SP139769_000_00 FULL FLOW OIL FILTER SP139770_000_00 LUBE OIL FILTER SP139775_000_00 LUBRICATING OIL PUMP SP139789_000_00 TURBOCHARGER SP139809_000_00 STARTING MOTOR SP139821_001_00 CORROSION RESISTOR LOCATION SP139829_000_00 WATER PUMP DRIVE SP139830_000_00 WATER PUMP SP139831_000_00 BELT TENSIONER 40C4824_000_00 THROTTLE CONTROL SYSTEM 40C5028_000_00 THROTTLE CONTROL SYSTEM 40C5136_003_00 INTAKE AND EXHAUST AS 34C3200_001_00 LINE GP 40C3739_000_00 AIR FILTER 40C5126_001_00 MUFFLER AS 40C5137_001_00 FUEL LINES 00Y0169_000_00 COOLING SYSTEM 40C5191_001_00 RADIATOR MOUNTING 20C1703_001_00 RADIATOR GP 40C5192_000_00 COOLER LINES 00Y0309_000_00 ENGINE SYSTEM 40C3750_008_00 INTAKE AND EXHAUST AS 00C2767_000_00 LINE GP 00C2766_000_00 AIR PIPE AS 40C3737_000_00 MUFFLER AS 40C5210_001_00 FUEL LINES 40C5792_000_00 ENGINE MOUNTING 00Y0358_000_00 FUEL TANK AS 00Y0358X0_000_00 FUEL TANK AS 00C1929_001_00 LUBRICATION PIPE 00C1916_001_00 LUBRICATION PIPE 00C1928_005_00 LUBRICATION PIPE 10E0214_001_00 STEERING HYDRAULIC SYSTEM 00C1931_001_00 STEERING CYLINDER LINES 00C1932_005_00 STEERING CONTROL LINES 12C0438_001_00 Pressure Reducing Valve 12C0438X0_003_00 Pressure Reducing Valve 12C5449_000_00 PRESSURE REDUCING VALVE 00C1933_004_00 FLOW AMPLIFYING VALVE LINES 00C1934_006_00 UNLOAD VALVE LINES 10C1575_002_00 STEERING CYLINDER 12C2730_001_00 FLOW AMPLIFYING VALVE AS 12C1621_001_00 FLOW AMPLIFYING VALVE 12C2755_000_00 SAFETY VALVE 12C2762_000_00 SAFETY VALVE 44C1063_001_00 STEERING COLUMN AS 44C0177_000_00 STEERING COLUMN AS 34C5350_000_00 BLOCK 44C1109_006_00 STEERING COLUMN AS 10E0241_000_00 STEERING HYDRAULIC SYSTEM 00C2650_000_00 FLOW AMPLIFYING VALVE LINES 00C2699_000_00 STEERING CYLINDER LINES 10Y0120_000_00 STEERING HYDRAULIC SYSTEM 44C1124_000_00 STEERING COLUMN AS 47C2912_000_00 STEERING COLUMN AS 47C2912X0_000_00 STEERING COLUMN AS 11E0855_002_00 HYDRAULIC SYSTEM 00C1893_001_00 BOOM CYLINDER LINES 00C1920_001_00 CONTROL VALVE LINES 00C1921_001_00 TILTING CYLINDER LINES 00C1922_005_00 COOLER LINES 12C0460_000_00 CHECK VALVE 10C1259_001_00 BUCKET TILTING CYLINDER 10C1259X0_001_00 BUCKET TILTING CYLINDER 10C1534_001_00 BOOM CYLINDER 10C1534X0_004_00 BOOM CYLINDER 12C2719_001_00 CONTROL VALVE AS 12C2143_000_00 CONTROL VALVE 12C2051_000_00 RELIEF VALVE 12C4914_000_00 RELIEF VALVE 21C0553_001_00 HYDRAULIC OIL TANK 21C0553X9_003_00 HYDRAULIC OIL TANK 24C1057_001_00 CONTROL LEVER AS 54C0367_000_00 CONTROL LEVER 44C1054_001_00 PUMP AS 11C1118_000_00 WORKING PUMP 11C1119_000_00 STEERING PUMP 44C1062_001_00 INDICATOR ROD AS 11E1150_000_00 HYDRAULIC SYSTEM 00C2628_002_00 PILOT CONTROL LINES 12C0037_007_00 COMBINATION VALVE 12C0037X0_007_00 COMBINATION VALVE 53C0546_001_00 PILOT OIL FILTER 53C0167_001_00 PILOT OIL FILTER 00C2632_002_00 TILTING CYLINDER LINES 00C2639_000_00 BOOM CYLINDER LINES 00C2641_000_00 CONTROL VALVE LINES 12C2547_000_00 CONTROL VALVE AS 12C3527_000_00 PILOT VALVE MOUNTING AS 23C0037_002_00 CONTROL LEVER AS 21C0641_000_00 HYDRAULIC OIL TANK 44C1588_001_00 PUMP AS 11C1473_000_00 PUMP 11Y0535_000_00 WORK HYDRAULIC SYSTEM 00C4903_000_00 PILOT CONTROL LINES 12C5513_000_00 PILOT VALVE MOUNTING AS 01E0379_002_00 DRIVE AXLE 01E0375_003_00 FRONT AXLE AS 01E0375X0_000_00 FRONT AXLE AS 01E0373_002_00 FRONT AXLE 24D0151_000_00 SPINDLE 24D0151X0_000_00 SPINDLE 41C0002_011_00 BEVEL GEAR 44C0019_000_00 LOCK BOLT 57A0024_000_00 SHIM 57A0027_000_00 SHIM 41C0002X1A_001_00 BEVEL GEAR 34C0002X1_001_00 CARRIER AS 41C0492_000_00 CLAMP AS 41C0492P01_000_00 CLAMP AS 41C0492P02_000_00 CLAMP AS 51C0327_000_00 BOLT AS 01E0377_001_00 FRONT AXLE BRAKE LINES 01E0376_002_00 REAR AXLE AS 01E0374_002_00 REAR AXLE 24D0152_000_00 SPINDLE 24D0152X0_000_00 SPINDLE 51C0061_010_00 REAR AXLE BEVEL GEAR 51C0061X1_000_00 REAR AXLE BEVEL GEAR 34C4150X1_000_00 AXLE DRIVE HOUSING AS 01E0376X0_000_00 REAR AXLE AS 01E0378_001_00 REAR AXLE BRAKE LINES 01E0383_001_00 TYRE & RIM AS 41C1176_000_00 RIM AS 03E0107_002_00 DRIVE SHAFT 05Y0087_000_00 GEARBOX & TORQUE CONVERTER AS 00C2816_001_00 FILTER LINES AS 00C3380_002_00 COOLER LINES AS 42C0349_002_00 PLANETARY CARRIER 42C1014_001_00 GEARBOX & TORQUE CONVERTER MOUNTING 02C0911_000_00 FILLER TUBE 42C0876_001_00 GEARBOX & TORQUE CONVERTER AS 11C0718_003_00 GEAR SHIFT PUMP 12C2363_000_00 SHIFT CONTROL VALVE 13C0008_000_00 BRAKE 13C0008X0_000_00 BRAKE 45C0001_000_00 ADJUSTING ROD AS 42C0781_001_00 GEARBOX 42C0781_001_01 GEARBOX 42C0781_001_02 GEARBOX 12C2407_001_00 SHIFT CONTROL VALVE 37C0002_004_00 DRIVE DISK 42C0011_001_00 1ST SPEED CLUTCH PISTON AS 42C0012_001_00 PISTON AS 42C0013_001_00 REVERSE PISTON AS 42C0094_000_00 REVERSE PLANET CARRIER 42C0094X1_000_00 REVERSE PLANET CARRIER 42C0780_001_00 DIRECT DRIVE GP 42C0009_000_00 DIRECT DRIVE PISTON AS 52C0005_001_00 CARRIER AS 52C0071_001_00 OVERRUN CLUTCH 52C0139_004_00 INPUT SHAFT 42C0290_000_00 INPUT SHAFT 52C0215_000_00 OVERRUN CLUTCH 34C2155_000_00 INPUT SHAFT 42C0879_000_00 TORQUE CONVERTER 52C0183_000_00 TURBINE GP 38C0283_000_00 II TURBINE 42C1048_001_00 TORQUE CONVERTER 42C1030_002_00 CONVERTER HOUSING GP 52C0257_001_00 TURBINE GP 38C0424_000_00 TURBINE 42C1014X0T2_001_00 GEARBOX & TORQUE CONVERTER MOUNTING 24C0201_000_00 SHIFT CONTROL SYSTEM 20Y0170_000_00 SERVICE BRAKE SYSTEM 00C1935_003_00 ASSISTOR & LINES 04C0030_000_00 L1400 HOSE 13C0416_000_00 ASSISTOR 13C0397_002_00 BOOSTER 00C3460_000_00 BRAKE VALVE & LINES 13C0420_003_00 BRAKE VALVE AS 00C4259_000_00 AIR RESERVOIR & LINES 34C3031_000_00 COMBINATION VALVE 13C0026_001_00 COMBINATION VALVE 03C0002_000_00 HOSE L2000 13C0514_003_00 ASSISTOR 21Y0035_001_00 PARKING BRAKE SYSTEM 45C0020_007_00 PARKING BRAKE AS 45C0787_000_00 HAND BRAKE 20Y0256_000_00 SERVICE BRAKE SYSTEM 00C4921_000_00 BRAKE VALVE & LINES 13C0941_000_00 BRAKE VALVE AS 08Y0064_001_00 REAR FRAME AS 34C0795_000_00 SHIM GP 08Y0273_000_00 REAR FRAME AS 30E0805_007_00 ARTICULATED HITCH 30E0947_002_00 FRONT FRAME AS 30Y0020_001_00 ARTICULATED HITCH 08Y0275_000_00 FRAME AS 30E0734_004_00 FRONT FRAME AS 32E1214_002_00 WORK IMPLEMENT LIMIT SYSTEM 32E1217_002_00 EQUIPMENT 24C1049_000_00 BUCKET LEVER 24C1050_000_00 LINKAGE 24C1051_001_00 BOOM 32E1759_001_00 BUCKET (2.7 m3) 32E1759X0_000_00 BUCKET (2.7 m3) 43C2586_000_00 TOOTH GP 38Y0102_000_00 BUCKET 22D1330_000_00 BUCKET 38Y0140_000_00 BUCKET 38Y0153_000_00 BUCKET 38Y0197_000_00 BUCKET 43C2887_000_00 BLADE GP 41Y0050_001_00 CAB AS 41E0157_001_00 REARVIEW MIRROR AS 41Y0049_002_00 CAB AS 34C2718_002_00 DECORATION AS 34C2719_000_00 DECORATION 46C3693_008_00 PLATFORM MOUNTING AS 46C2435_001_00 BASE 46C3548_005_00 BRACKET 46C3692_002_00 PLATFORM AS 47C1033_010_00 DOOR-LH 47C1035_005_00 DOOR LOCK 47C1240_001_00 WINDOW GP 47C1034_008_00 DOOR-RH 47C1037_005_00 DOOR LOCK 47C1036_005_00 LATCH 47C1038_005_00 LATCH 47C1334_002_00 CONTROL BOX 41Y0049_003_01 CAB AS 41Y0049_003_02 CAB AS 41Y0067_001_00 REARVIEW MIRROR 41Y0083_002_00 COVER 37C1184_000_00 COVER 46E0068_003_00 SEAT AS 47C1556_000_00 SEAT 41Y0165_000_00 CAB AS 41Y0164_000_00 CAB AS 41Y0164_000_01 CAB AS 47C0194_003_00 HAND REST 47C1941_002_00 CONTROL BOX AS 46Y0006_001_00 SEAT AS 47C2733_000_00 CAB 47C2733_000_01 CAB 34C4908_000_00 DECORATION AS 34C4907_000_00 DECORATION 47C1467_001_00 CONICAL BUMPER 47C1294_004_00 LATCH 47C1295_004_00 LATCH 47C2585_000_00 WINDSHEILD 47C2732_000_00 CAB AS_SKEL 47C1290_004_00 DOOR-LH 47C1292_000_00 WINDOW GP 47C1291_003_00 DOOR-RH 41Y0300_000_00 CAB AS 47C2583_000_00 SUPPORT 47C2886_000_00 CAB 47C2886_000_01 CAB 47C2887_000_00 CAB 48C4003_000_00 REARVIEW MIRROR 47C2908_000_00 REARVIEW MIRROR-LH 47C2909_000_00 REARVIEW MIRROR-RH 41Y0380_000_00 CAB AS 47C0425_000_00 WATER-FREE WASHER 43E0446_001_00 FENDER & LADDER AS 26C0192_000_00 LADDER 44Y0090_001_00 ENGINE HOOD 42D1668_001_00 SIDE HOOD 43D1351_001_00 SIDE HOOD 48C2767_000_00 COVER 44Y0096_001_00 ENGINE HOOD 44Y0319_000_00 ENGINE HOOD 48C4009_000_00 COVER 22Y0370_000_00 ELECTRICAL SYSTEM 46C5864_005_00 FRONT FRAME WIRING 08C4625_000_00 HARNESS 08C7493_000_00 HARNESS 46C0704_001_00 FRONT LIGHT-RH 46C0705_001_00 FRONT LIGHT-LH 46C5308_000_00 HORN GP 46C3729_000_00 WIPER SYSTEM 46C3731_000_00 FRONT WIPER GP 46C9614_000_00 CAB WIRING 08C7167_001_00 CAB HARNESS 46C6183_002_00 RELAY AS 46C9582_002_00 CONTROL BOX 46C9619_000_00 WORK LIGHT WIRING 08C6846_000_00 HARNESS 08C7174_000_00 WORK LIGHT HARNESS 49C0454_000_00 CAB WIRING 46C2053_000_00 CONTROL BOX 49C0259_000_00 BOOT 46C8409_001_00 BATTERY WIRING 46C2962_002_00 DISCONNECT SWITCH MOUNTING 34B0297_000_00 DISCONNECT SWITCH 46C9616_002_00 REAR FRAME WIRING 08C3173_000_00 HARNESS 08C7812_000_00 HARNESS 49C0041_000_00 REAR FRAME WIRING 22Y0377_000_00 GRID HEATER WIRING 46C7947_000_00 CONTROL BOX AS 46C6549_000_00 RELAY AS 46C2170_000_00 CAB WIRING 08C7335_000_00 CAB HARNESS 46C9956_000_00 REAR FRAME WIRING 49C0875_000_00 WORK LIGHT WIRING 08C8426_000_00 WORK LIGHT HARNESS 49C1002_000_00 REAR FRAME WIRING 49C1008_000_00 CAB WIRING 49C0898_000_00 CONTROL BOX 49C1618_000_00 REAR FRAME WIRING 49C1619_000_00 CAB WIRING 49C1620_000_00 WORK LIGHT WIRING 49C1689_000_00 WORK LIGHT 46C1767_000_01 ROTATING BEACON AS 46C1767_001_00 ROTATING BEACON AS 23E0492_005_01 AIR CONDITIONING SYSTEM 06C0306_000_00 HOSE 06C0408_000_00 HOSE 11B0048_000_00 HOSE 46C2543_000_00 CONDENSER 46C3591_000_00 FILTER 46C4558_001_00 COMPRESSOR BRACKET AS 46C5490_001_00 EVAPORATOR AS 46C5584_003_00 EVAPORATOR MOUNTING 49C0439_000_00 FILTER 46C8276_000_00 COMPRESSOR BRACKET AS 49C2682_000_00 EVAPORATOR MOUNTING 49C2594_000_00 EVAPORATOR AS 49C2789_000_00 COMPRESSOR 23E0492_008_00 AIR CONDITIONING SYSTEM 23Y0046_002_00 HEATING SYSTEM 46C1787_003_00 FAN AS 46C5587_001_00 HEATER 46C3545_001_00 HEATER 49C2683_000_00 HEATER MOUNTING 49C2714_000_00 HEATER 23Y0046_003_01 HEATING SYSTEM

1

2

3

4

5

6

8

9

10

11

12

13

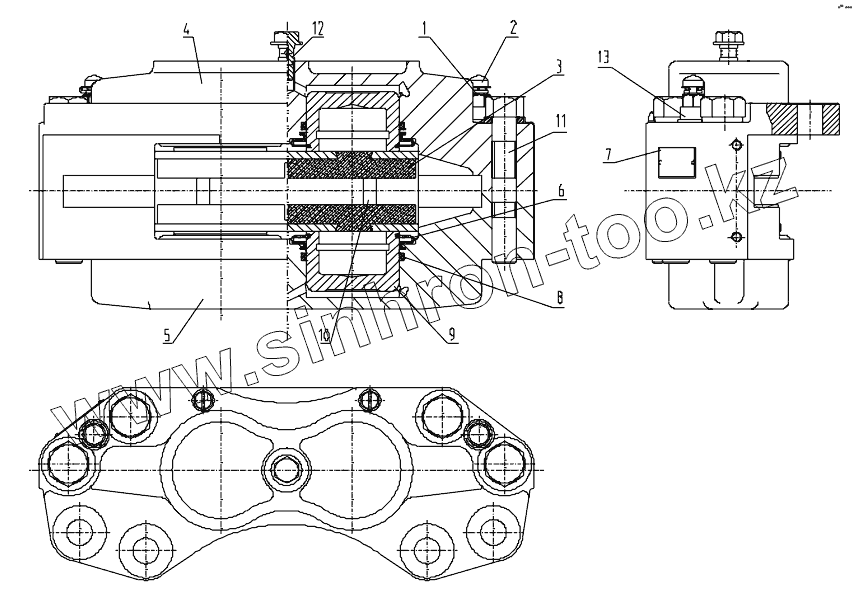

Позиция на иллюстрации	Заводской номер детали		Название детали
SP123891	SP123891		Seal kit
1	SP123550		Deflating valve
2	SP123551		Cover
3	SP123552		Friction plate
4	SP123553		Clamp as
5	SP123554		Clamp as
6	SP123555		Dust ring
8	SP123556		Rectangular seal
9	SP123557		Piston
10	SP123558		Bolt
11	SP123559		Bolt
12	SP123560		Breather plug
13	SP123561		Deflating valve seat

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
