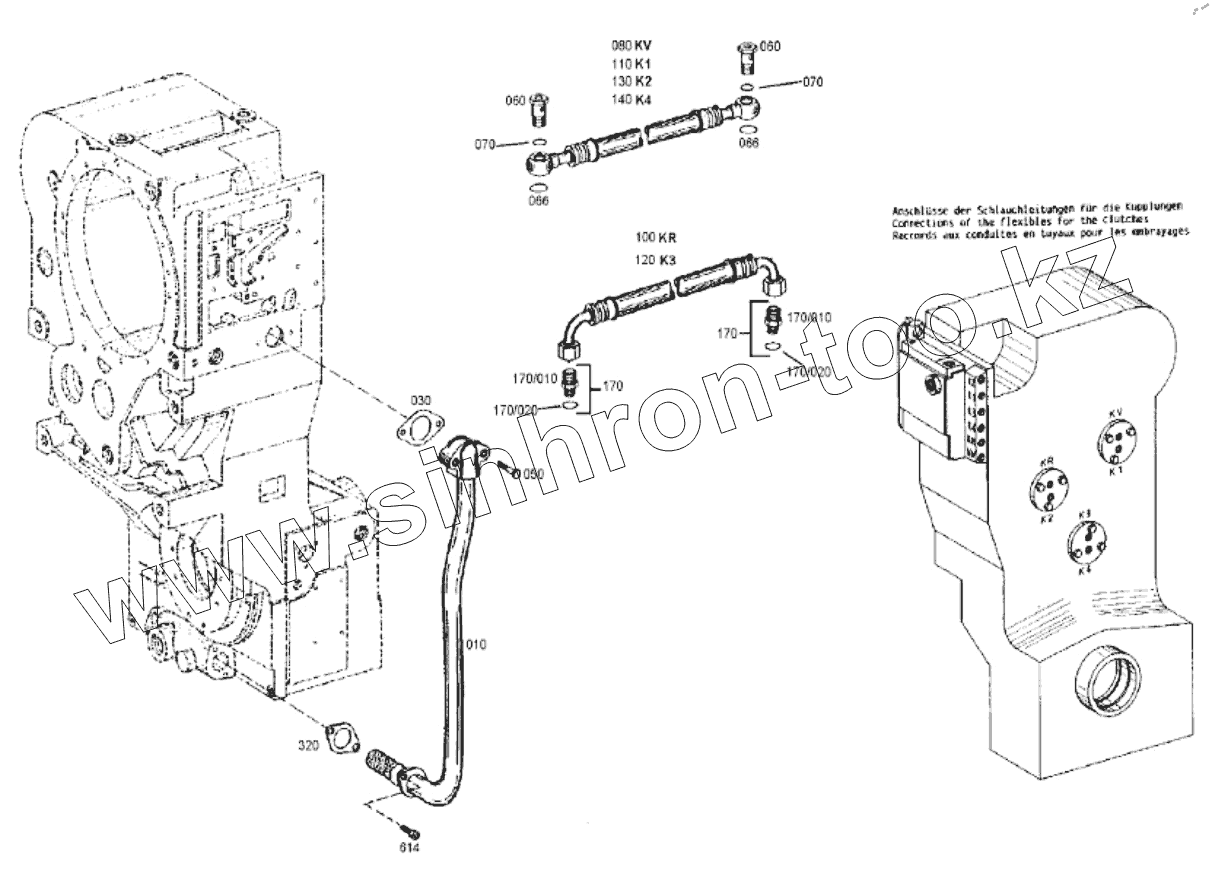

010
030
050
060
060
066
066
070
070
080
100
110
120
140
170
170
320
614
170/010
170/010
170/020
170/020
Позиция на иллюстрации
Заводской номер детали
Название детали
010
4644 221 196
SUCTION TUBE
030
4644 321 244
GASKET
050
0636 010 089 H
HEXAGON SCREW
060
0737 835 153
UNION SCREW
066
0634 306 202
O-RING
070
0634 306 523
O-RING
080
0750 147 257
HOSE
100
0750 147 208
HOSE
110
0750 147 257
HOSE
120
0750 147 036
HOSE
140
0750 147 117
HOSE
170
0637
SCREW-IN SLEEVE
320
4642 331 216
GASKET
614
0636 101 031 H
CAP SCREW
170/010
0637 842 509 H
SCREW-IN SLEEVE
170/020
0634 306 523
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
